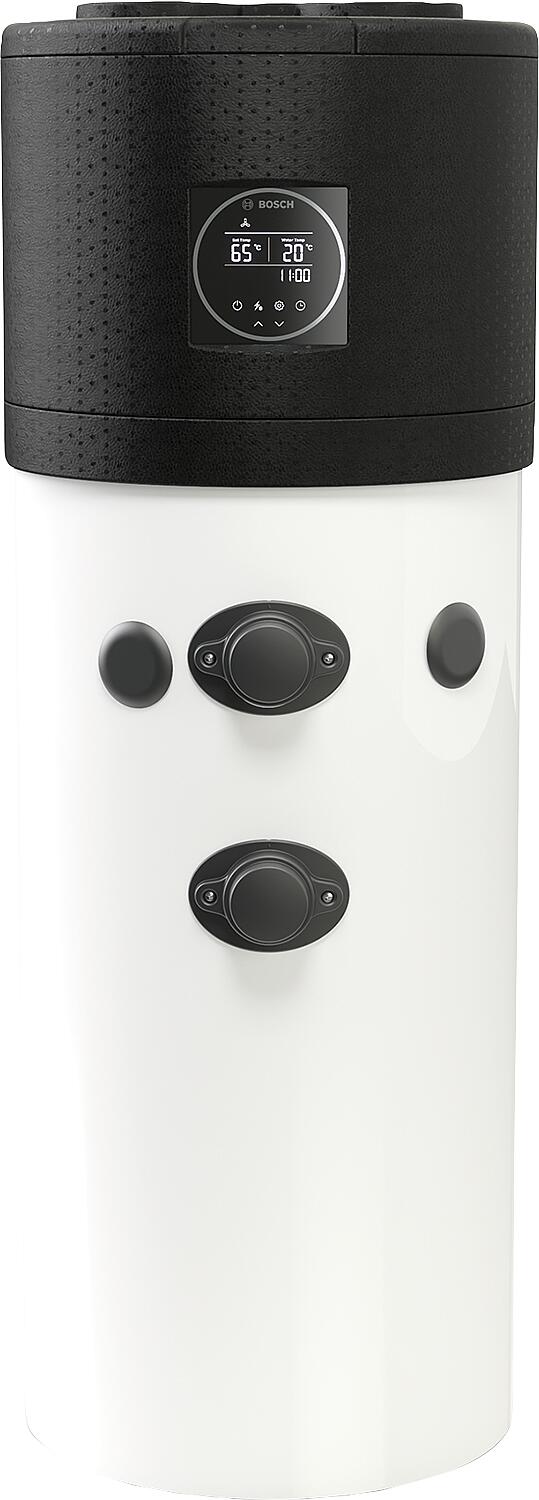

Warmwasser-Wärmepumpe Bosch Compress CS 5001DW 260 C (R 513A), mit Wärmetauscher

• Recirculation mode and supply/exhaust air mode possible • Hygienic hot water temperatures up to 65°C possible in heat pump operation • Optimized self-consumption of electricity is possible through the integration of photovoltaics • PV control contact already integrated into the device • Corrosion protection in the storage tank through magnesium anode • With electric auxiliary heater (1.5 kW) • High ease of use via the LCD control panel • Various operating modes selectable: heat pump only, electric operation only or booster function • CS 5001 DW 200/260 C: With additional heat exchanger for integrating solar or other heat generators • With additional heat exchanger (200°C = 1.0 m², 260°C = 1.2 m²) • For bivalent operation

type		200	200°C	260	260°C
Energy Efficiency Class (EEC) Hot Water Preparation	A+ to F	A+	A+	A+	A+
Heating output (A14/W55)	[kW]	1.53	1.53	1.43	1.43
COP according to EN16147 (A7/W55)		3.5	3.5	3.6	3.6
Tapping profile		L	L	XL	XL
Power of electric auxiliary heater	[kW]	1.5	1.5	1.5	1.5
Memory contents	[l]	202	194	260	251
Refrigerant/Fill quantity	[--/kg]	R513A / 1.1	R513A / 1.1	R513A / 1.1	R513A / 1.1
Sound power level	[dBA]	56	56	56	56
Maximum water temperature.	[°C]	65	65	65	65
Air volume flow	[ m³/h ]	420	420	420	420
Dimensions (diameter x height)	[mm]	630 x 1720	630 x 1720	630 x 2010	630 x 2010
Weight	[kg]	105	121	110	128
Ref. No.		7738340427	7738340428	7738340429	7738340430

Brand	Bosch
Manufacturer part number	7738340428
Unit price	CHF/piece
Ref. No.	7738340428
Type	CS 5001 DW 200 C
EAN	4062321590338
