- Without heat exchanger for monovalent operation
- Recirculation and supply/exhaust air operation possible
- Plug-in ready with Schuko plug, 1.8 m cable
- Including 2 kW electric auxiliary heater
- Integrated SmartGrid connection for PV system or multi-tariff meter
|
Type
|
FHS
|
|
|
|
EEK Hot water preparation
|
A+ to F
|
A+
|
A+
|
|
Total heating output
|
[kW]
|
3
|
3,4
|
|
Heating output of heat pump
|
[kW]
|
1
|
1,4
|
|
Heating power of additional heating element
|
[kW]
|
2
|
2
|
|
Maximum operating pressure.
|
[bar]
|
10
|
10
|
|
|
|
|
|
Pitch profile
|
L
|
XL
|
|
|
Operating mode
|
Exhaust air, recirculation
|
Exhaust air, recirculated air, outside air
|
|
|
Memory content
|
[l]
|
166
|
270
|
|
Material Storage
|
Stainless steel
|
Enamel
|
|
|
Refrigerant/Fill quantity
|
[/kg] |
R290/0.15
|
R134a/1.1
|
|
Dimensions (H x W x D)
|
[mm]
|
1576 x 540 x 575
|
1768 x 707 x 575
|
|
ø Air duct connection
|
[mm]
|
160
|
160
|
|
Weight
|
[kg]
|
70
|
130
|
|
Ref. No.
|
|
2486462
|
2486463
|
| Brand | WOLF |
|---|---|
| Manufacturer part number | 2486463 |
| Unit price | CHF/piece |
| Ref. No. | 2486463 |

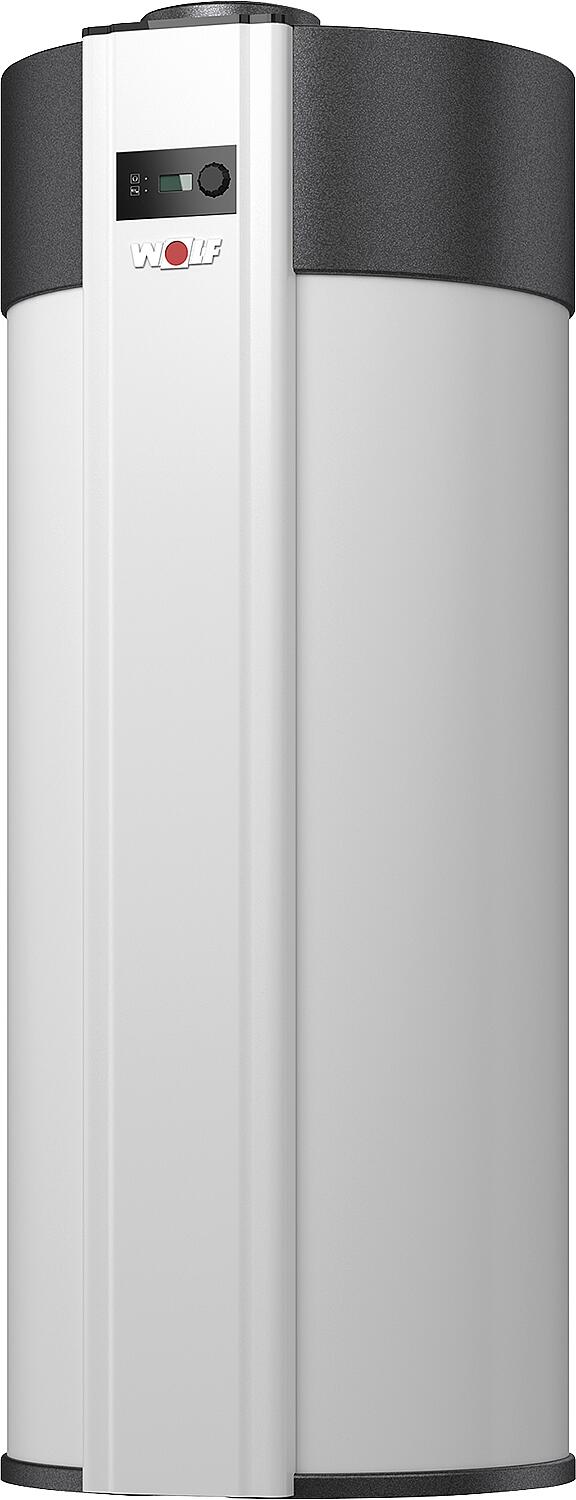

| Type | FHS 280-S |
| EAN | 4045013512030 |
