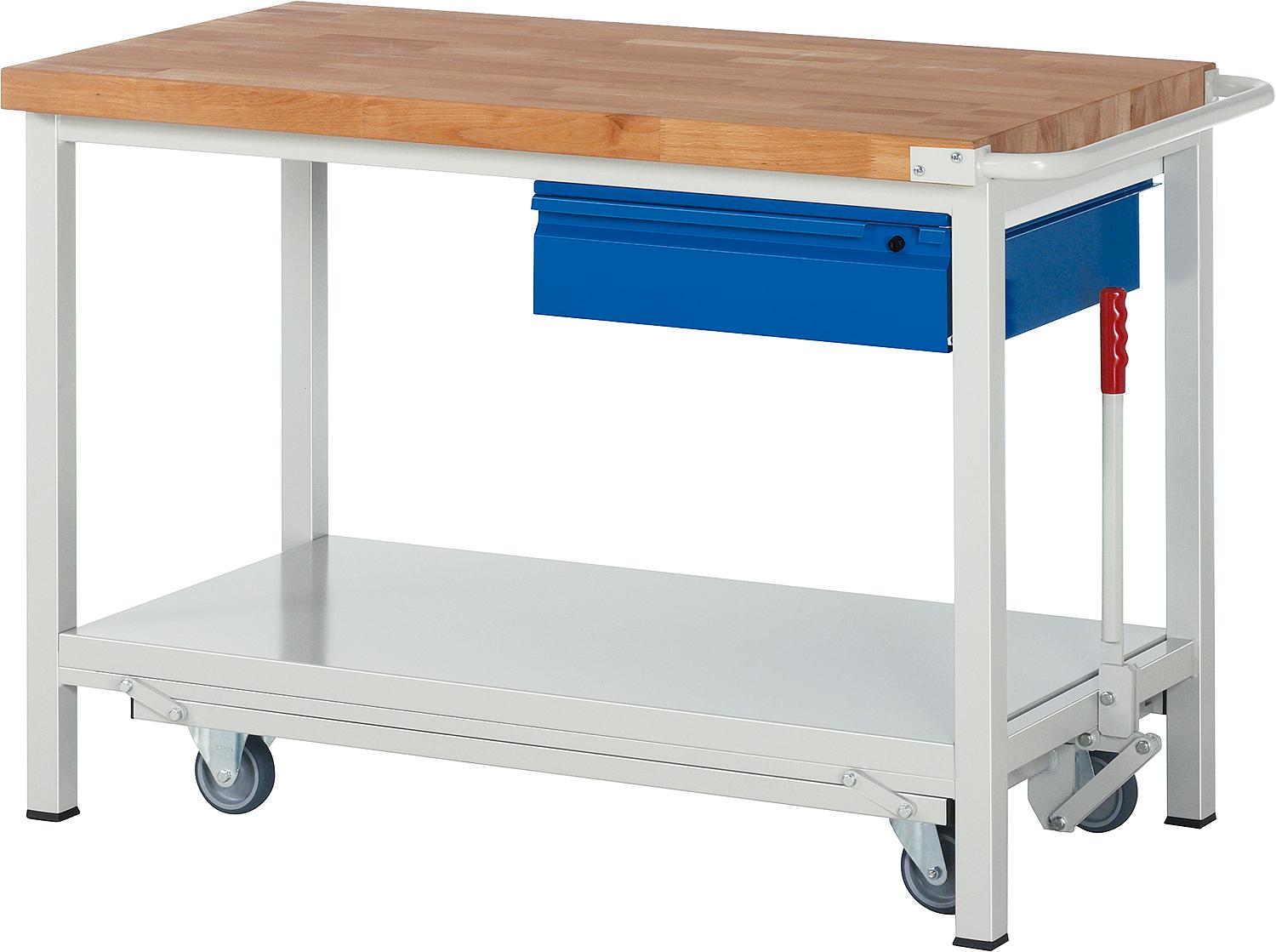

Workbench with lowering chassis RAU 8001 Series Basic-8 1500 x 880 x 700 mm

• Dimensions (H x D) (mm): 880 x 700, width see table
• Solid beech worktop (H) (mm): 40
• 4-foot welded frame with two pairs of frame feet made of profile steel tubing (L x W x S) (mm): 45 x 45 x 2
• Cross struts made of C profile (L x W x S) (mm): 40 x 40 x 2
• High-quality powder coating: frame/housing light grey (RAL7035), drawer gentian blue (RAL5010)
• 2 x fixed and 2 x swivel casters with brakes
• Handle/sliding grip (included separately)
• Undercounter drawer dimensions (W x H x D) (mm): 520 x 175 x 650
• Drawers with roller bearings, 90% extension
• Fully integrated, continuous handle strip
• Central locking system (pin tumbler lock with 2 keys)
• Chassis extendable and retractable via eccentric lever
• Maximum payload when operating the eccentric lever (kg): 300
• Surface load on casters (kg): 450
• Surface load with retracted landing gear (kg): 1250

Classification:

• Bottom right:
• 1 x drawer, internal dimensions (W x H x D) (mm): 490 x 150 x 560
• Load capacity (kg): 50

• Delivered fully assembled, without tools, boxes, system setup, pegboard or other accessories

• S = Material thickness

• Matching accessories: Order no.: 81 027 42 50
