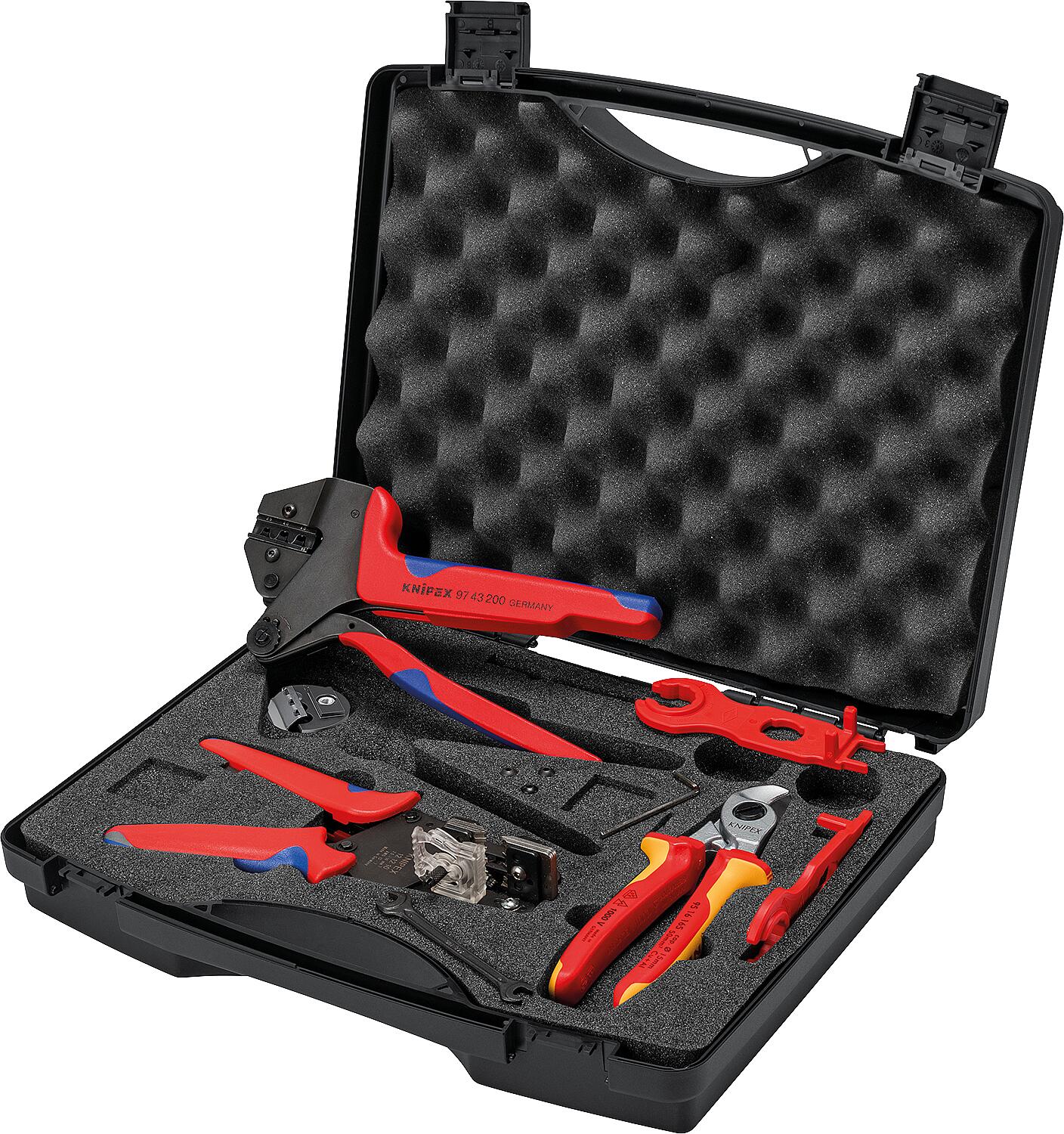

KNIPEX 6-piece tool set for photovoltaics 97 97 04 V01, in a transport case

• Impact-resistant plastic case
• Dimensions (W x H x D) (mm): 345 x 80 x 280

Consisting of:

• Universal wire stripper (80 006 38):
• Additional cable support for better centering of multi-layer insulated conductors
• Stripping values: 1.5 / 2.5 / 4 / 6 mm² solar cable, AWG 1510
• 4 interchangeable blades
• Cable shears, length 165 mm (80 009 63):
• VDE-certified safety up to 1000 volts
• Cutting values ​​for Cu and Al cables, single and stranded: ø 15 mm, 50 mm², AWG 1/0
• Chrome-plated head
• Crimping insert for crimping tool, MC4 solar connectors (MultiContact) (80 232 75):
• Capacity (mm²): 2.56.0
• AWG: 14/10
• Assembly tool for MC4 (MultiContact) solar connectors
• For tightening and loosening the cable gland
• To release the locking mechanism of MC4 housings
• Positioning aid for MC4 (MultiContact) solar connectors
• Crimping system pliers for interchangeable crimping dies (80 232 71):
• High crimp quality thanks to precision inserts and unlockable locking mechanism
• Crimping movement almost parallel
• With lever transmission for fatigue-free work
• Precisely calibrated crimp pressure
• Various positioning aids for precise location determination
• Ergonomically shaped multi-component handles
• Pliers and head burnished
• With assembly tools
• Crimping dies for the crimping system pliers are not compatible with MultiCrimp® pliers
