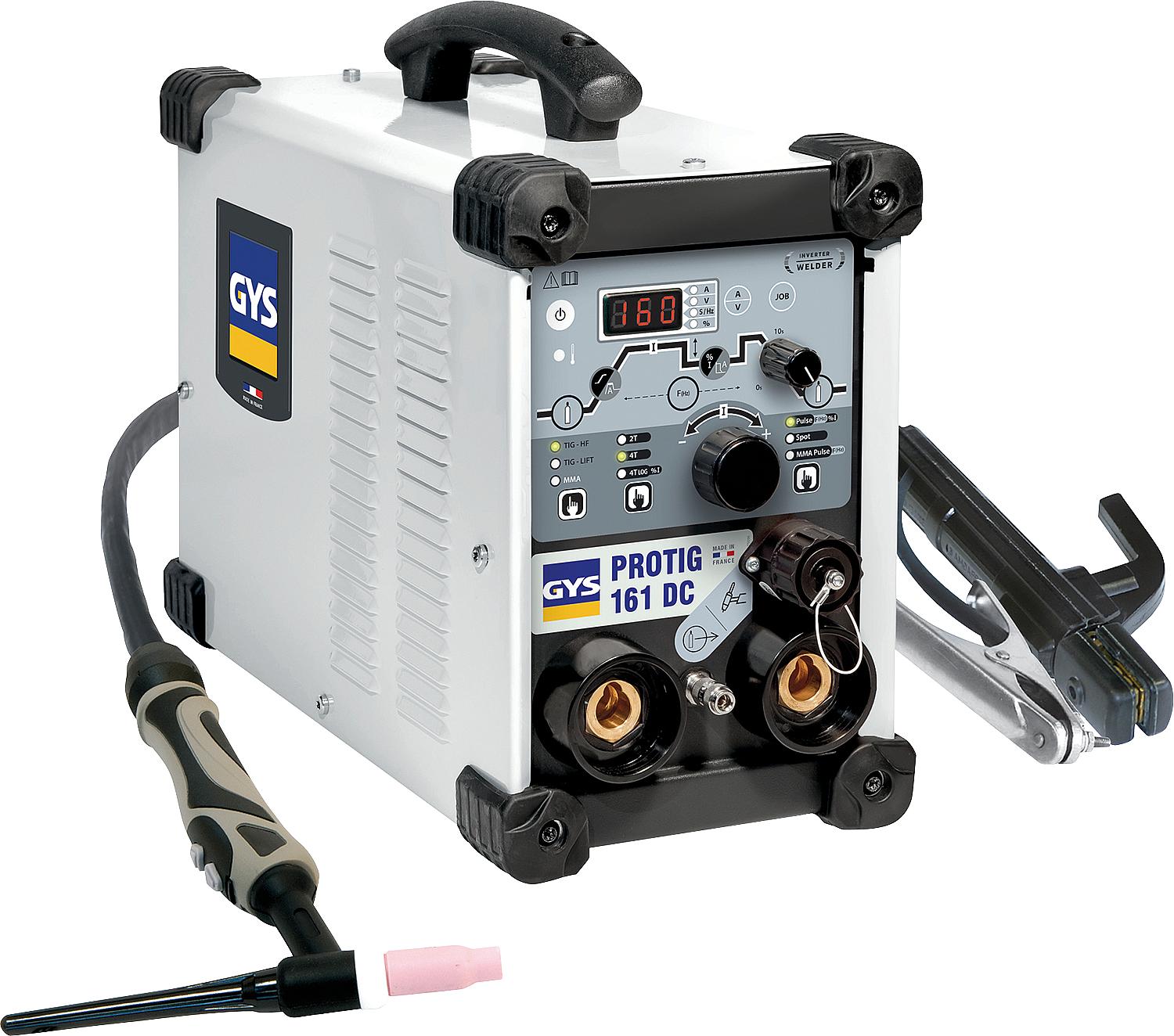

PROTIG 161 DC TIG welding machine with accessories

• TIG welding
• For welding work on stainless steel, copper and copper alloys
• 10 memory locations for storing preferred parameters
• TIG DC Pulse
• It controls the temperature of the melt pool, minimizes deformation, and thus enables the joining of sheets from 0.3 mm thick.
• 2 ignition options
• Contact ignition with LIFT ignition
• Contactless HF ignition
• Spot: precise tack welding of thin sheets before welding
• 3 burner modes:
• 2-stroke
• 4-stroke
• 4-stroke LOG: By briefly pressing the torch trigger, you can switch between two welding currents (main and base current).
• Electrode welding
• Welds all common basic and rutile coated electrodes up to ø 4 mm
• Pulse: facilitates vertical-up welding
• 3 integrated welding aids
• Anti-sticking: reduces the risk of the electrode sticking to the workpiece upon contact.
• Hot Start: facilitates ignition and sets itself within seconds, depending on the type of metal.
• Arc Force: short-term current increase for welding in difficult welding positions

• Welding process: TIG + electrodes
• Current (230 V 16 A): TIG 10160
• Electrodes 10160
• Welding consumables: TIG welding rods and tungsten electrodes
• Stick electrodes 1.64.0 mm
• Wire reel: No
• Wire guide roller: No
• Voltage (V): 230
• Control panel: Potentiometer/Digital
• ED at 20°C (55% at 115 A): TIG 60% at 105 A

Electrodes 60% at 95 A

• Suitable for generators (+/15%) max: 6kW/7.5kVA
• Protection rating (IP): 21
• Dimensions L x W x H (mm): 360 x 160 x 280
• Weight (kg): 7.5
• Scope of delivery:
• TIG torch TIG17DB (4 m)
• Ground clamp (2 m/ø25 mm²)
• Electrode holder (2 m/ø25 mm²)
