- Heating water flow rate: up to 2.3 m³/h
- Power output at ∆t=20°C up to 50 kW
- Inlet and outlet chambers are thermally separated
- Suitable for condensing boiler technology
- Boiler connections at the bottom: DN25 (1") male nipple
- Group connections: DN25 (1") male nipple
- Insulation (35 mm) with galvanized steel sheet casing (0.60 mm)

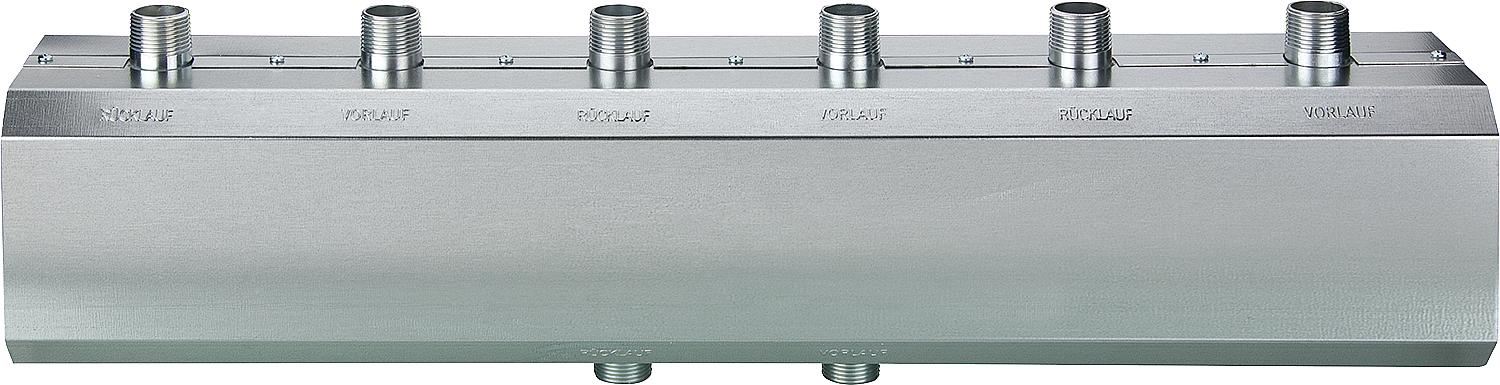

- Compact design with integrated flow and return
- Group departures lying next to each other
- pressure tested and galvanized
- Operating pressure: max. 6 bar
- Flow temperature: max. 90°C
- Pressed-in flow and return markings in the sheet steel casing
| Number of heating groups | 2 |
|---|---|
| L [mm] | 520 |
| Unit price | CHF/piece |
| Type | HVI-2 |
