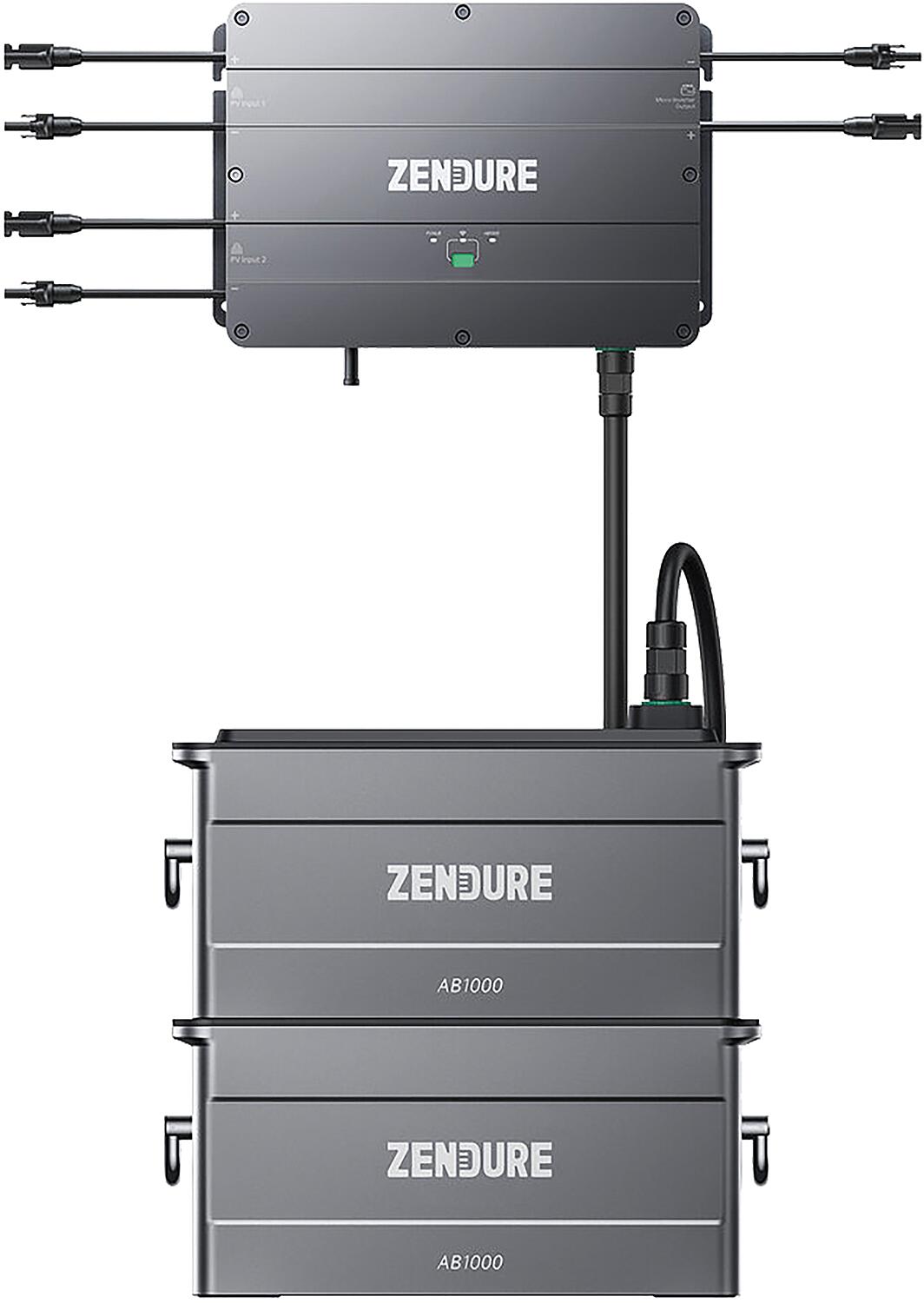

Zendure SolarFlow 1200 Set with 2 x AB1000S batteries

• Energy storage system for existing or new installations with up to two PV modules on the balcony, garden or roof
• Excess power is automatically stored in the battery.
• Battery capacity expandable to max. 4 units (3840 Wh)
• The power output to the inverter (microinverter) can be adjusted in 100 W increments.
• Output is only possible via a connection to the inverter.
• Universal adaptability through MC4
• Individual settings via the Zendure app
• 10-year manufacturer's warranty

Set consisting of:

• 1 x Smart PVHub 1200
• Protection rating: IP65
• Input power: 2 x 400 W (800 W max.) MPPT
• Input voltage: 1660 V
• Input current: 2 x 13 A
• Output power: 1001200 W
• Output voltage: 3548 V
• Output current: 30 A max.
• Dimensions (L x W x H): 363 x 246 x 64 mm

2 x battery AB1000S:

• Battery type: Li-ion battery LiFePO4
• Capacity: 960 Wh (48V / 20Ah)
• Input power: 800 W
• Output power: 1200 W
• Dimensions (L x W x H): 350 x 200 x 186.5 mm

Scope of delivery:

• 1 x Smart PVHub

2 x AB1000S batteries

4 x solar panel cables 3m

• 4 x Micro Inverter Cables 0.6m

1 x battery cable 1.5m

• 1 x Connection set Y-connector

6 x mounting screw M4.7 x 39mm

2 x flat washers

1 x antenna

• Please contact your energy supplier regarding registration and approval of the system.
