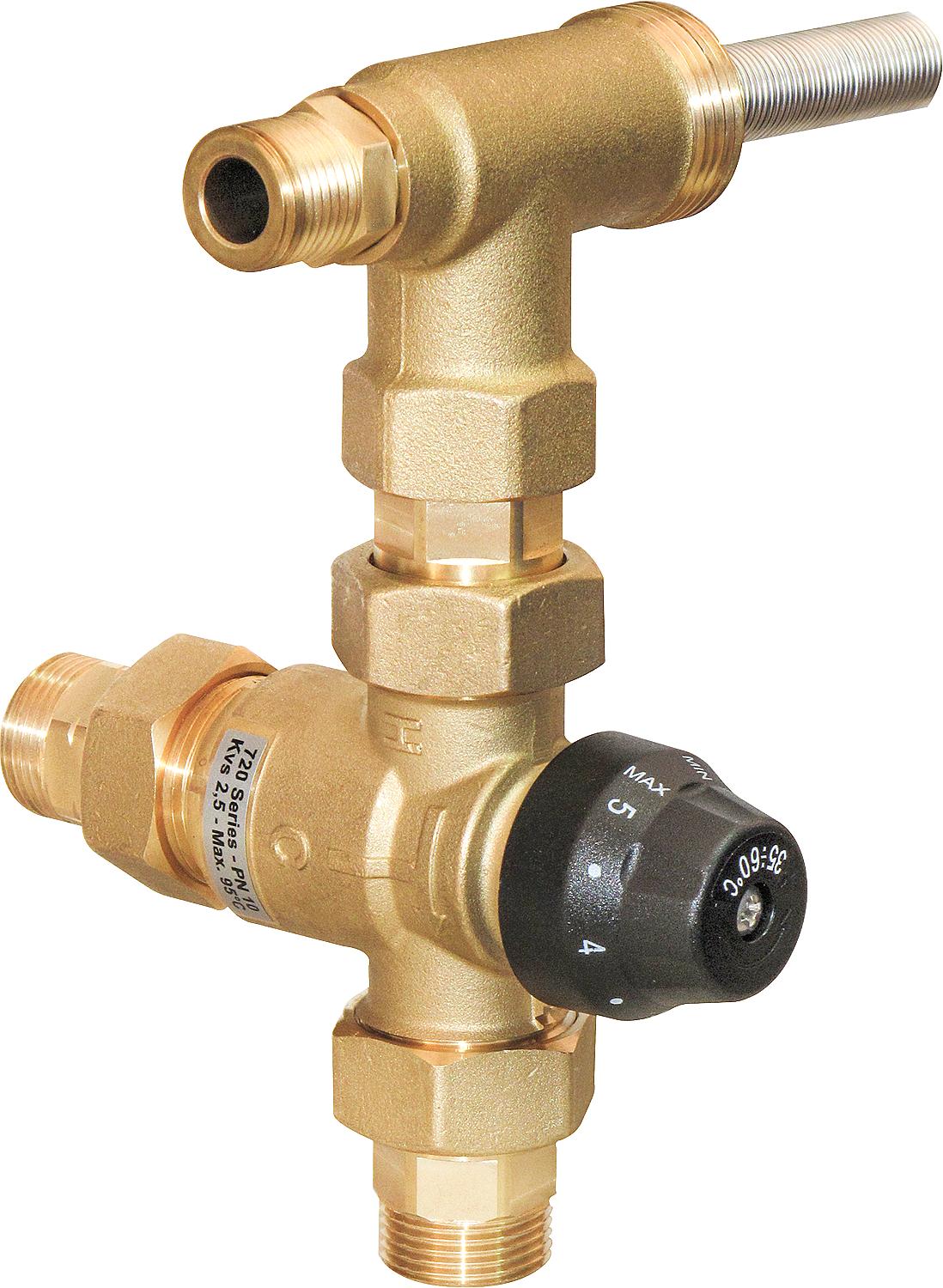

Easyflow Circ 1 Kvs 2.5 circulation set for hygienic combination storage tanks

• For hygienic combination storage tanks with corrugated pipe heat exchanger
• With drinking water mixing valve
• Corrugated stainless steel diving lance
• T-piece and screw connections for the mixing machine
• The three check valves and circulation pumps must be provided by the customer.

Technical data:

• Maximum static pressure: 10 bar (PN10)
• Maximum dynamic pressure: 5 bar
• Maximum pressure ratio: 2:1
• Maximum inlet temperature: 95 °C
• Temperature setting range: 35÷60 °C
• Accuracy: ±2 °C (Kvs 4.0); ±1 °C (Kvs 2.5)
• Connections: 3/4” male thread with screw fitting
• Circulation: 1/2” AG
• to storage*T pcs: 1” AG

• 1. Hot water tap

2. Expansion vessel

• 3. Circulation Set

4. Circulation pump

5. Safety valve

• 6. Hygienic combination storage tank

7. Check valves

A. Circulation line

B. Hot water pipe

C. Cold water pipe
