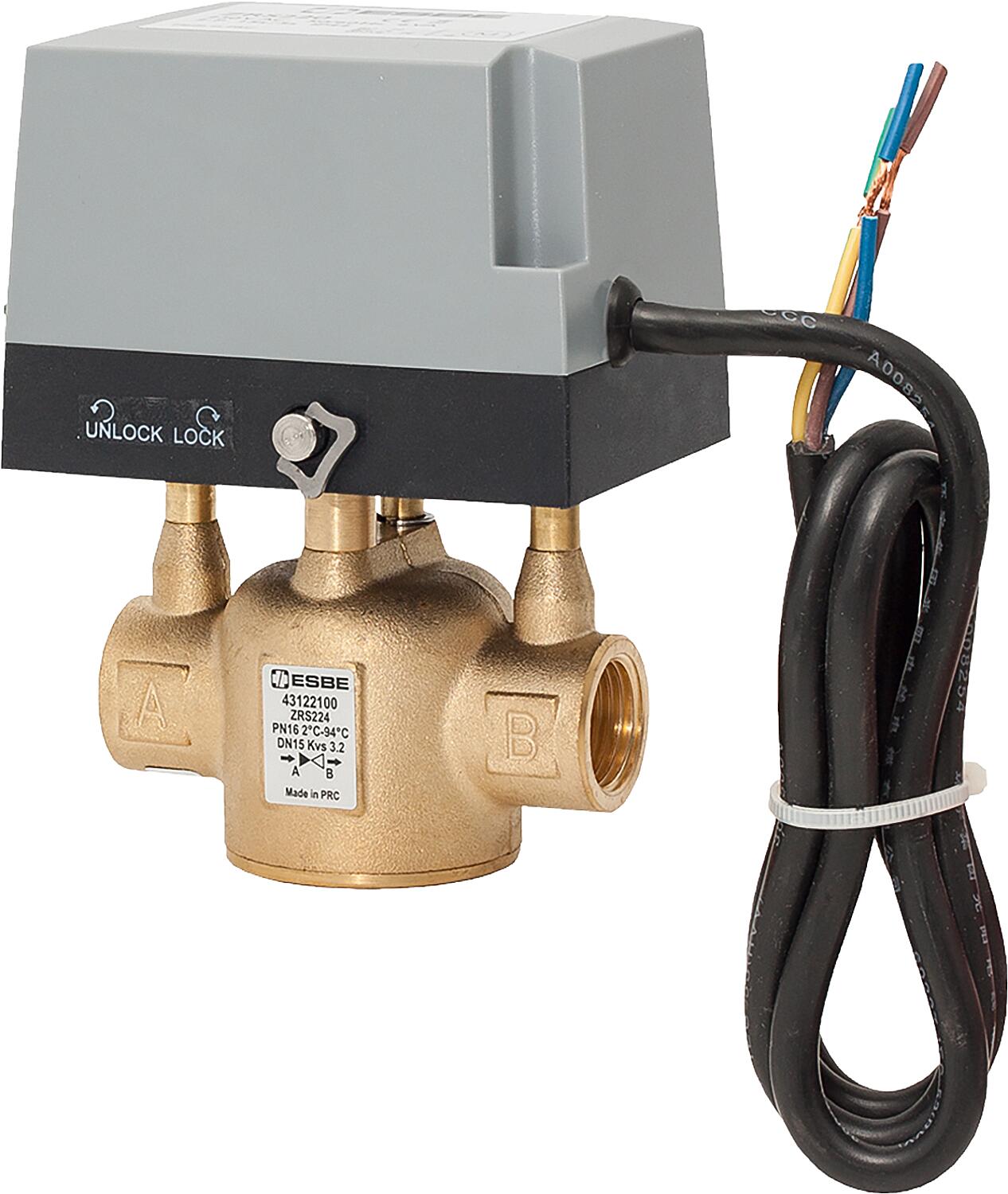

Zone valve ESBE, type ZRS 224, 2-way, DN15 (1/2") IT, 230 V, Kvs 3.2

Zone valve ESBE, type ZRS 224, 2-way, DN15 (1/2") IT, 230 V, Kvs 3.2

Bewertungen
CHF 121.45
CHF 121.45
% Sold out
Taxes included.

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

  • Economy (kostengünstig) wird berechnet
  • Express (Express-Lieferung) wird berechnet
  • Priority (schneller Standard) wird berechnet
Manufacturer:
Order No.:
Availability:
ESBE
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • For installation in heating/cooling systems
  • 2-point actuator
  • With cable 0.85 meters
  • Easy replacement of the actuator motor
  • Fast runtime
  • Manual operation possible
  • Not for use with process/drinking water

Technical data:

  • Operating temperature: Max. 94°C
  • Pressure rating: PN16
  • Duration:
  • Open in 15 seconds.
  • Close in 5 seconds.
  • Protection class: IP44
  • Power supply: 230 V/AC, 50 Hz
  • Control signal: 2-point
  • Valve body: Brass
  • Seals: NBR / EPDM
  • Media:
  • Water according to VDI2035
  • Glycol mixture max. 50%
  • Ethanol mixture max. 28%

  • Connections with internal threads on both sides
  • Open/Close function
  • Flow path from A to BPort
Brand ESBE
Manufacturer part number 43122100
Unit price CHF/piece
Size DN 15 (1/2")
A [mm] 80
Kvs value 3.2
EAN 7330193052696
