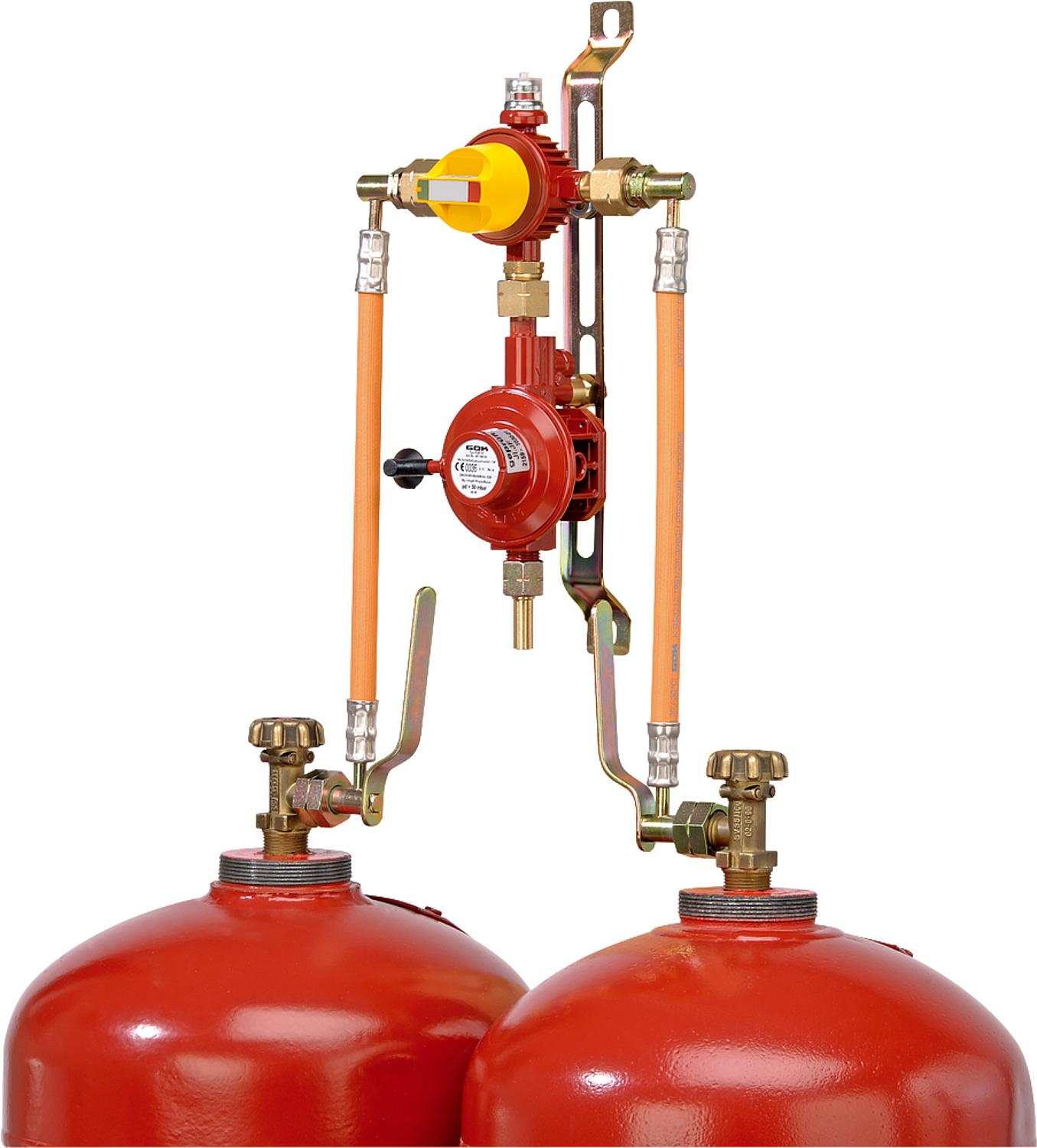

2-cylinder system 4kg/h 50mbar PS16bar GF AUV visual display SAV PRV

• For connection to gas cylinders with a 33 kg filling weight, for pressure regulation to the nominal pressure of the gas appliance.
• Conformity:
• Individual fittings with DIN/DVGW or DVGW type examination certificate or EU type examination certificate GGV

A notice:

The dimensioning and design of the liquefied gas system (selection of gas flow monitor, nominal flow rate, nominal diameter, etc.) must be carried out according to TRF.

Technical data:

• Maximum inlet pressure: 16 bar
• Outlet pressure: 50 mbar
• Maximum output: 4 kg/h
• Connection output: RST 12 mm

Consisting of:

• High-pressure hose assemblies with large cylinder connection, pipe sections, automatic changeover valve TYPE AU with operating button, operating and reserve indicator, gas non-return valves, low-pressure regulator with overpressure safety shut-off device OPSO (SAV), safety relief valve PRV, screw fittings and mounting rails
• Changing the bottle is possible without interrupting operations.
• Gas backflow prevention device: prevents gas flow from leaking back during cylinder changes.
