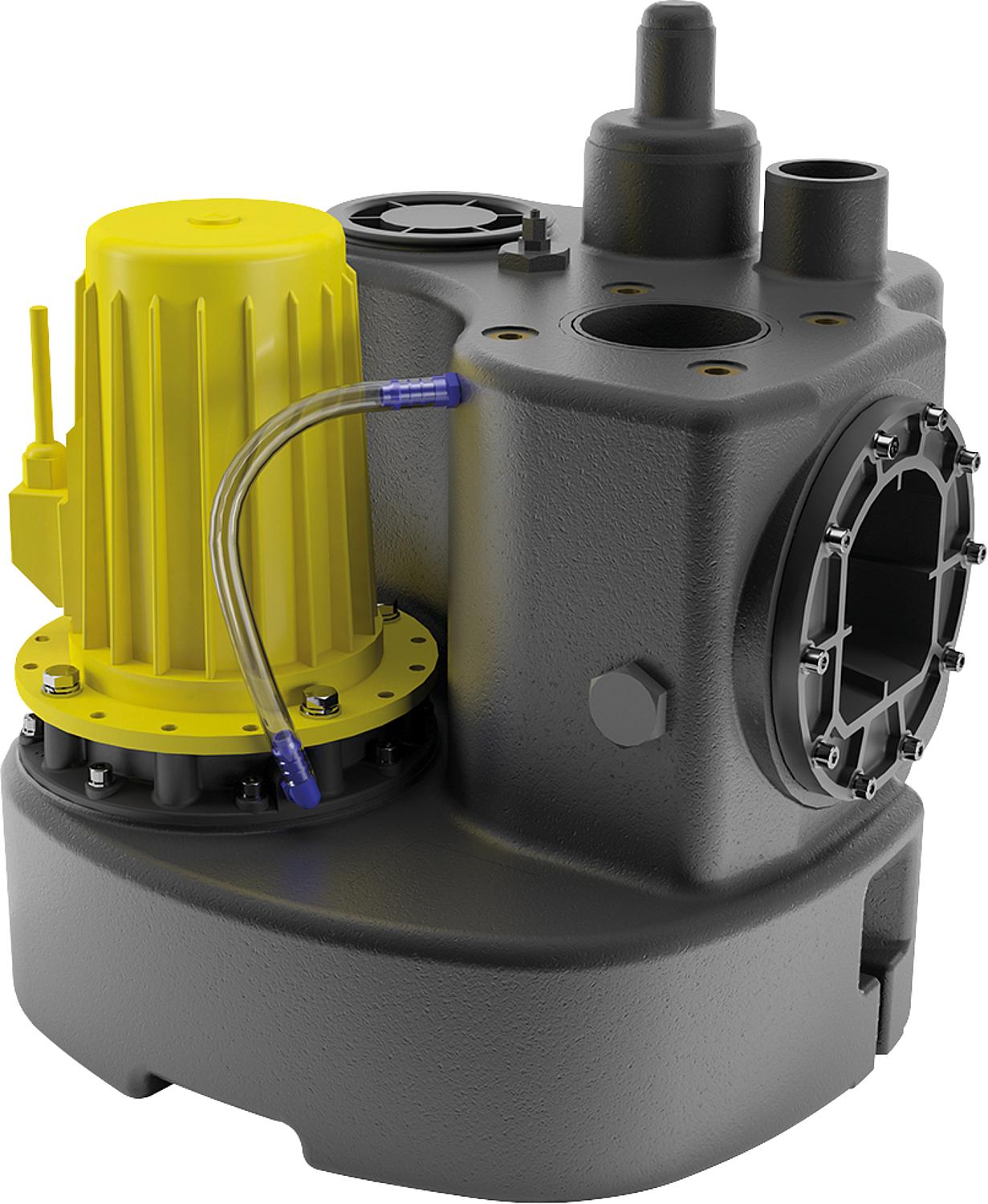

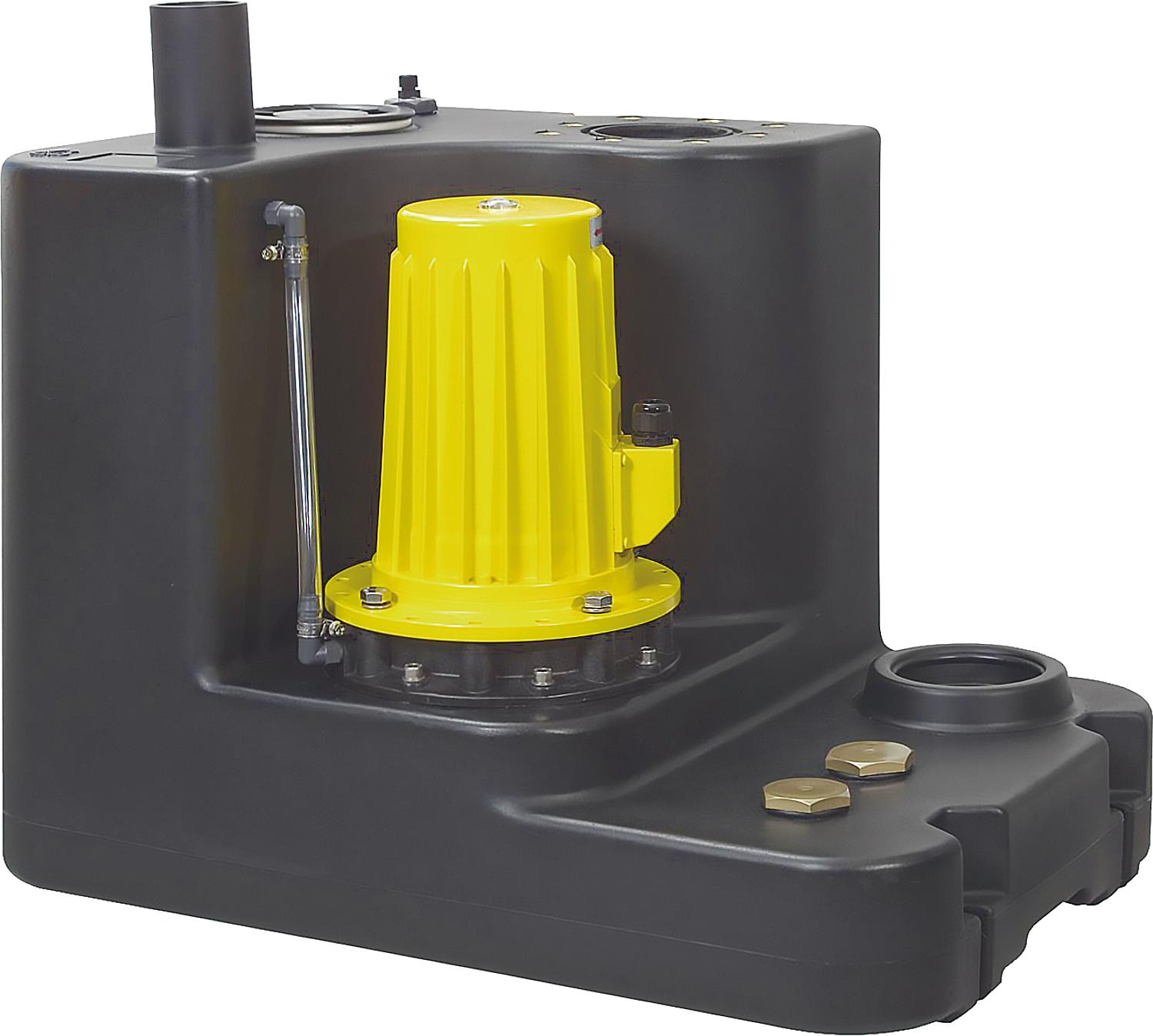

Boy 1.5 wastewater lifting station with vortex pump (400 V/ 1.5 KW)

Single-plant design:

• Polyethylene collection container
• Compact unit with a 55 l capacity and adjustable switching volume from 19 l to 45 l, depending on the inlet connections used.

Free-flow impeller pump with high efficiency and significantly reduced running noise, three-phase or single-phase current

• Boy with 140 l capacity and 70 l switching volume
• Single unit with mounted vortex pump,

with three-phase motor

• Sealing by mechanical seal and shaft seal

intermediate oil chamber

• Pressure outlet optionally DN 80 or DN 100
• Inlet for HT pipe DN 100, rotatable and height-adjustable
• Additional DN 40 (1 1/2”) connections for hand diaphragm pump
• Vent DN 65 (ø 75)
• pneumatic level control ZPS 1, potential-free output for

Collective fault message and acoustic alarm

• 3.5m connection cable to the motor
• Boy plant with larger emergency storage volume

Areas of application for individual systems:

• Pumping of domestic wastewater from a basement apartment or a single-family house

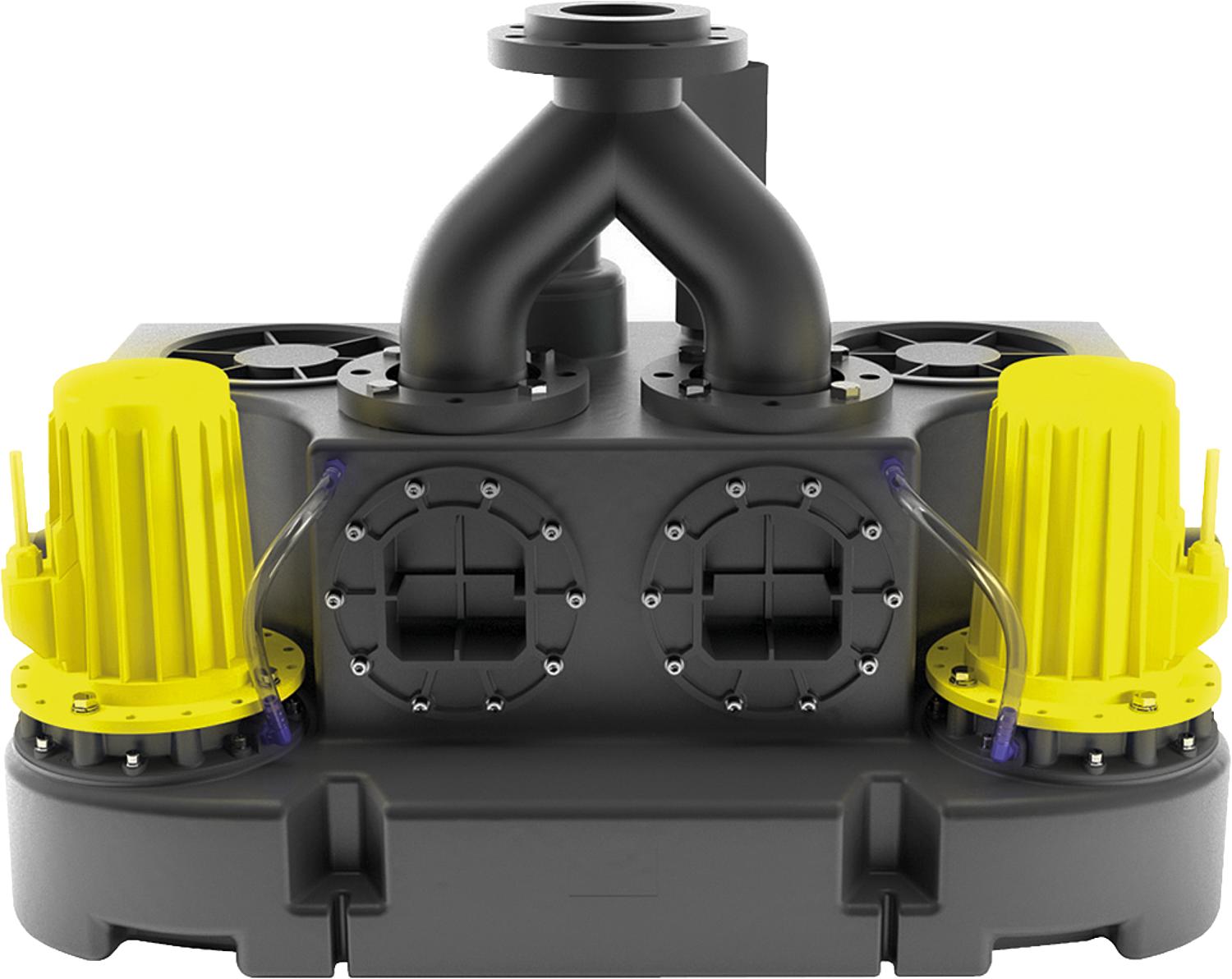

Double system design:

• Polyethylene collection container
• Compactboy double with 150 l capacity and 80 l switching volume
• Boy double with 200 l capacity and 100 l switching volume
• Boy twin system with mounted swirl wheel pumps, with three-phase motor
• Kompaktboy twin system with mounted free-flow impeller pumps
• Sealing by mechanical seal and shaft seal

intermediate oil chamber

• Pressure outlet DN 100
• Inlet for DN 100 HT pipe, rotatable and height-adjustable, also available for Boy double models.

DN 150 with flange connection (optional accessories required)

• Additional DN 40 (1 1/2”) connections for hand diaphragm pump
• Venting: Compactboy DN 65 (ø 75), Boy DN 100 (ø 110)
• pneumatic level control ZPS 2.1, automatically changing operation,

Peak load function and fault switching, potential-free output for

Collective fault message and acoustic alarm

• 3.5 m connection cable to the motor
• Boy double unit with larger emergency storage volume

Areas of application for dual systems:

• Disposal of domestic wastewater from apartment buildings, commercial facilities, etc.
• Facilities where wastewater disposal must not be interrupted.

Scope of delivery: Lifting station including control unit, flexible connections for DN 100 pressure line and vent, check valve and Y-pipe (only for double systems)
