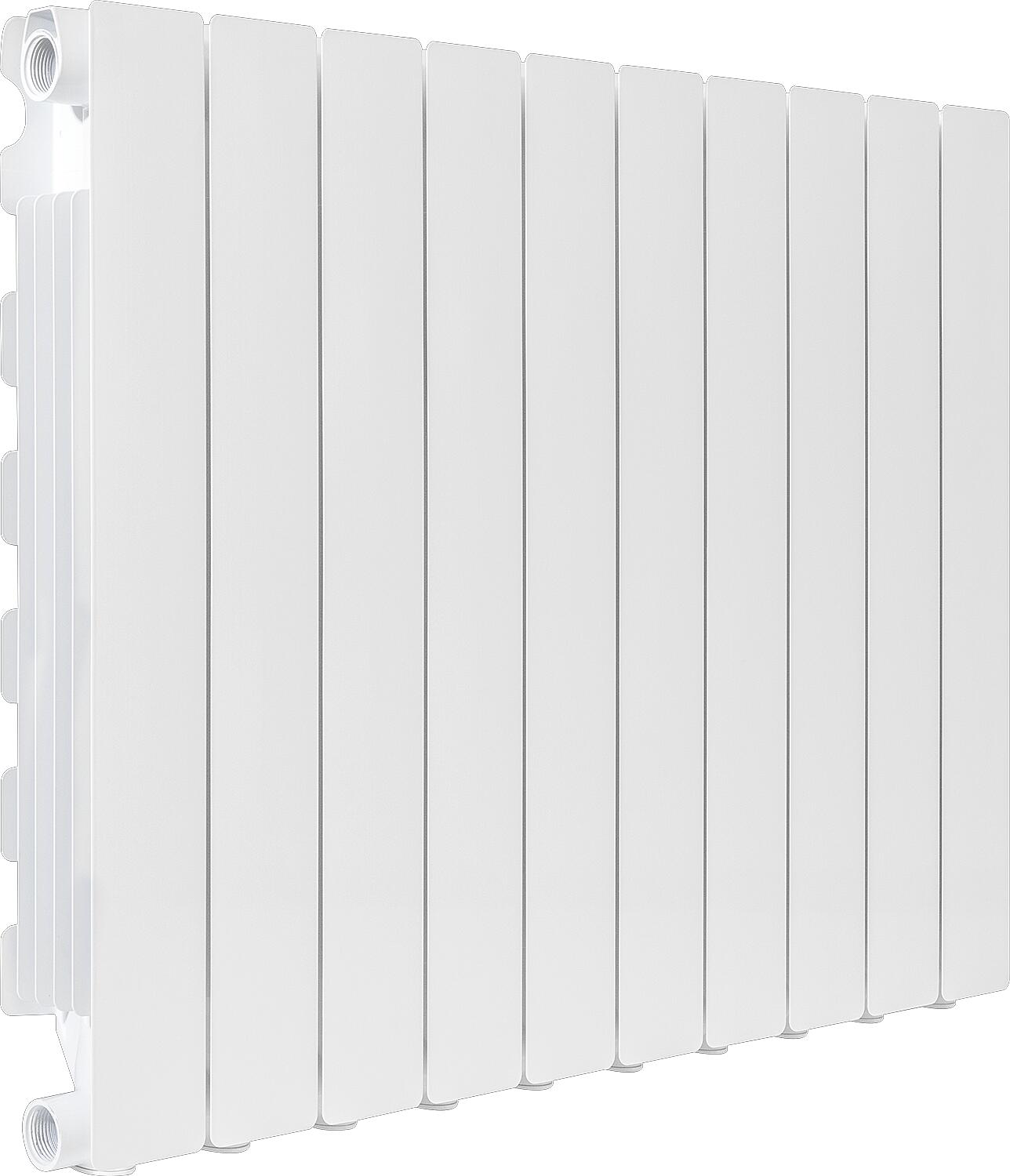

Aluminium-Heizkörper Blitz Super B4,800/100-10Glieder weiss, RAL 9010

• Material: Aluminum
• Suitable for heating element: Yes
• Operating temperature: max. 90°C
• Operating pressure: max. 16 bar
• 4 connections: DN25 (1")
• Connection options: side right and left, optionally via tap block
• Installation depth: 97 mm
• Axle spacing: 800 mm
• Distance from wall to center of connection: 80 mm

Scope of delivery:
• Radiators

• Without wall brackets, side panels and connection accessories

• Ideally suited for use in condensing boilers with low flow temperature

• Can be used as a valve radiator (optional accessory)
• Can also be used as a replacement body for DIN radiators; pay attention to the wall clearance!
