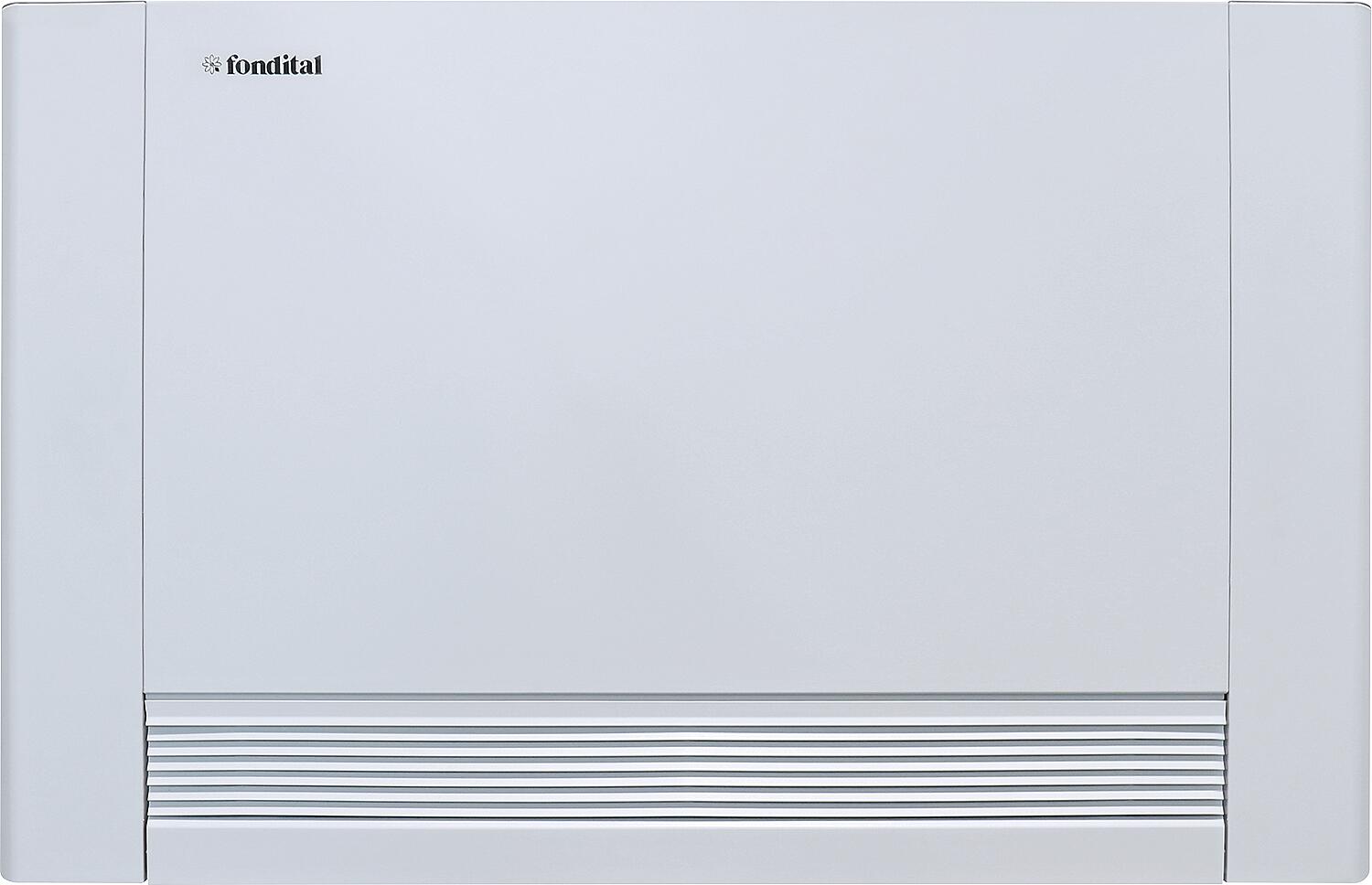

Fan coil unit with housing AURAL ONE 20

• For heating and cooling
• The AURAL ONE concept is based on a hydraulic radiator connected to the central hot water heating system. An additional energy-saving and quiet "Super Silence" axial fan (min. 24 dB(A)) ensures that the radiator delivers maximum performance even at the lowest temperatures.
• Therefore, the AURAL ONE concept is also suitable for a comfortable indoor climate in every season: with a reversible heat pump, the AURAL can heat and cool.
• The ideal combination with low-temperature heating systems (heat pumps, gas and oil condensing boilers)
• Control panel 90 130 30 must be ordered separately, mounting in the upper right corner.
• Copper-aluminum heat exchanger
• Outer casing made of galvanized sheet metal
• Painted, white RAL9003
• Axial fan “Super Silence”
• Honeycomb air filter removable for cleaning
• Condensate collector
• Hydraulic connections on the left (heating system)
• Wall brackets including template included in the scope of delivery

Technical data:

• Operating voltage: 230 V/AC, 50 Hz
• Depth: 129 mm
• Power consumption of axial fan min. / max.:
• Aural One 20: 5 / 11 W
• Aural One 40: 4 / 19 W
• Aural One 60: 6 / 20 W
• Hydraulic connections: 2x DN 20 (3/4") male thread Eurocone
• Condensate drain: 14 mm
• Maximum heating output (45°C / 40°C):
• Aural One 20: 1020 W
• Aural One 40: 2210 W
• Aural One 60: 3020 W
• Maximum cooling capacity (7°C / 12°C):
• Aural One 20: 910 W
• Aural One 40: 2120 W
• Aural One 60: 2810 W
