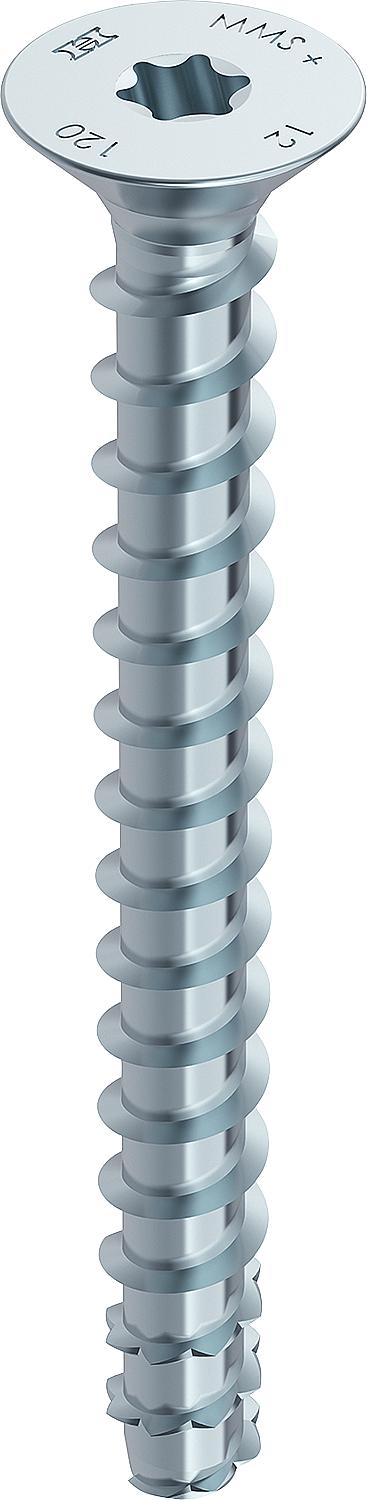

• Galvanized steel
• The screw is screwed directly into the drilled hole without a dowel.
• Approved for use with masonry bricks, solid calcium silicate bricks, perforated calcium silicate bricks and lightweight concrete
• With ETA 15/0784 approval
• Screw diameter 10.0 + 12.0 mm is reusable, however, it must first be tested using the test sleeve (94 008 05-...06).
• Thread diameter: 10.0 mm
• Drill diameter: 8.0 mm
• Drive: T 45
• Head diameter: 19.5 mm
• Countersunk head: Screw fixing in concrete and masonry whenever flush countersinking of the head is required.
• Fully threaded: Screw connection possible without dowels, withstands high tensile forces, high contact pressure
• Galvanized: Blue passivated. For indoor and outdoor applications without direct weathering, but not a substitute for stainless steel.
| Brand | Heco |
|---|---|
| Length [mm] | 60 |
| Unit price | CHF/unit price |
| Clamping thickness [mm] | 10 |
| Screw head | Countersunk head |
| Packaging unit | 25 |
