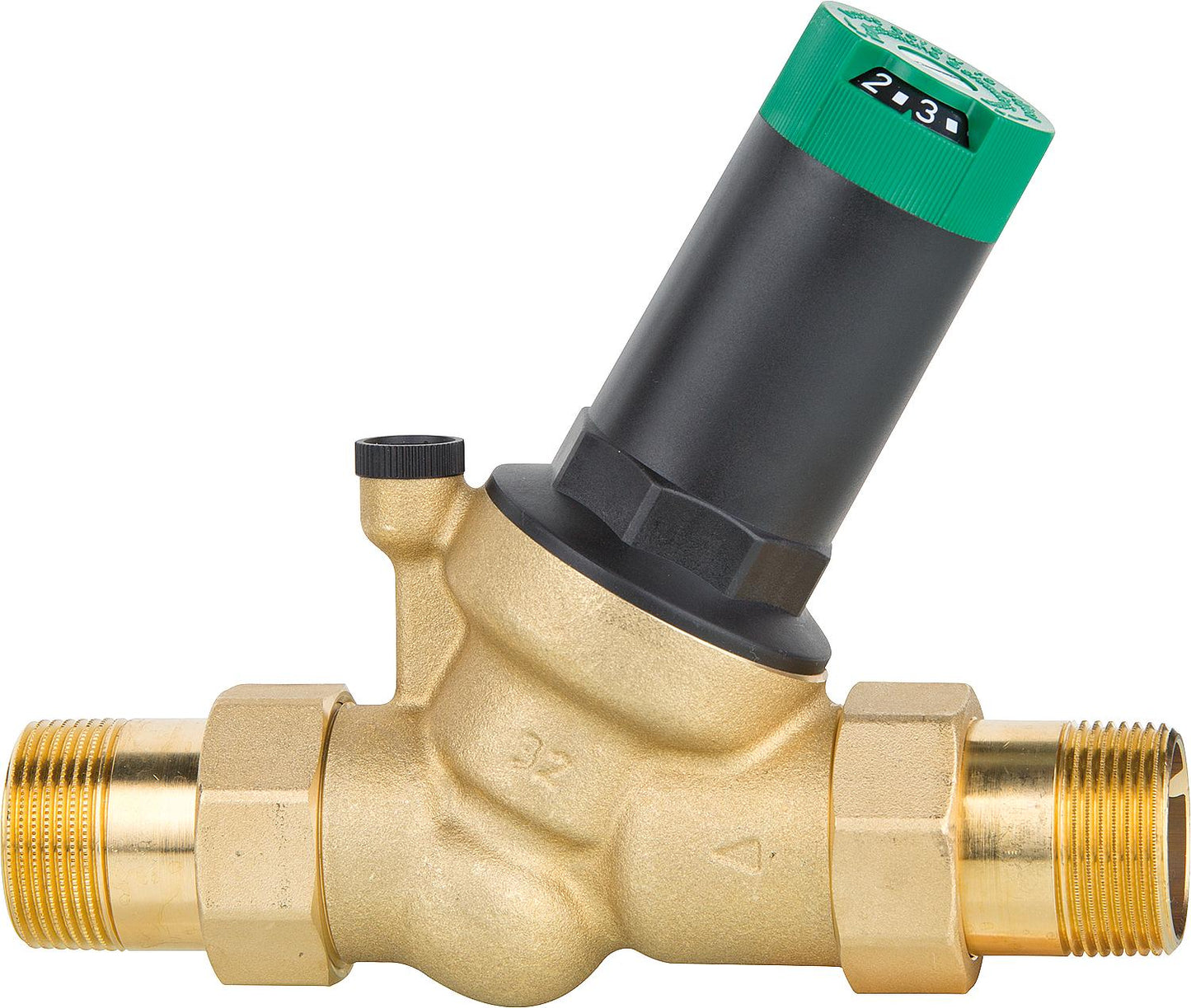

Brauckmann Druckminderer D05FS 2" A Gewindetülle mit Einstellskala

Bewertungen

| Eine Rezension schreiben

CHF 343.90

% Sold out

Taxes included.

Quantity

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

Economy (kostengünstig) wird berechnet
Express (Express-Lieferung) wird berechnet
Priority (schneller Standard) wird berechnet

Manufacturer:

Order No.:

Availability:

Resideo

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

• For use with water, oil-free compressed air and nitrogen within the scope of plant approval according to PED
• Outlet pressure: 1.5 - 6 bar
• Installation position: horizontal
• Pressure gauge connection on both sides DN 8 (1/4")
• Seals and membranes: NBR
• Delivery does not include a pressure gauge
• DIN/DVGW certified

• Housing made of dezincification-resistant brass
• Brass screw fitting
• Maximum inlet pressure: 25 bar
• Maximum operating temperature: +70 °C
• Suitable pressure gauge (Order No.: 70 100 65)

kvs value [m³/h]	3.0
Brand	Resideo
Overall length without screws [mm]	95
Manufacturer item number	D05FS-1/2A
Unit price	CHF/piece
Ref. No.	D05FS 1/2" A
Size	DN 15 (1/2")
Overall length including screw connection [mm]	155
EAN	4019837113087
