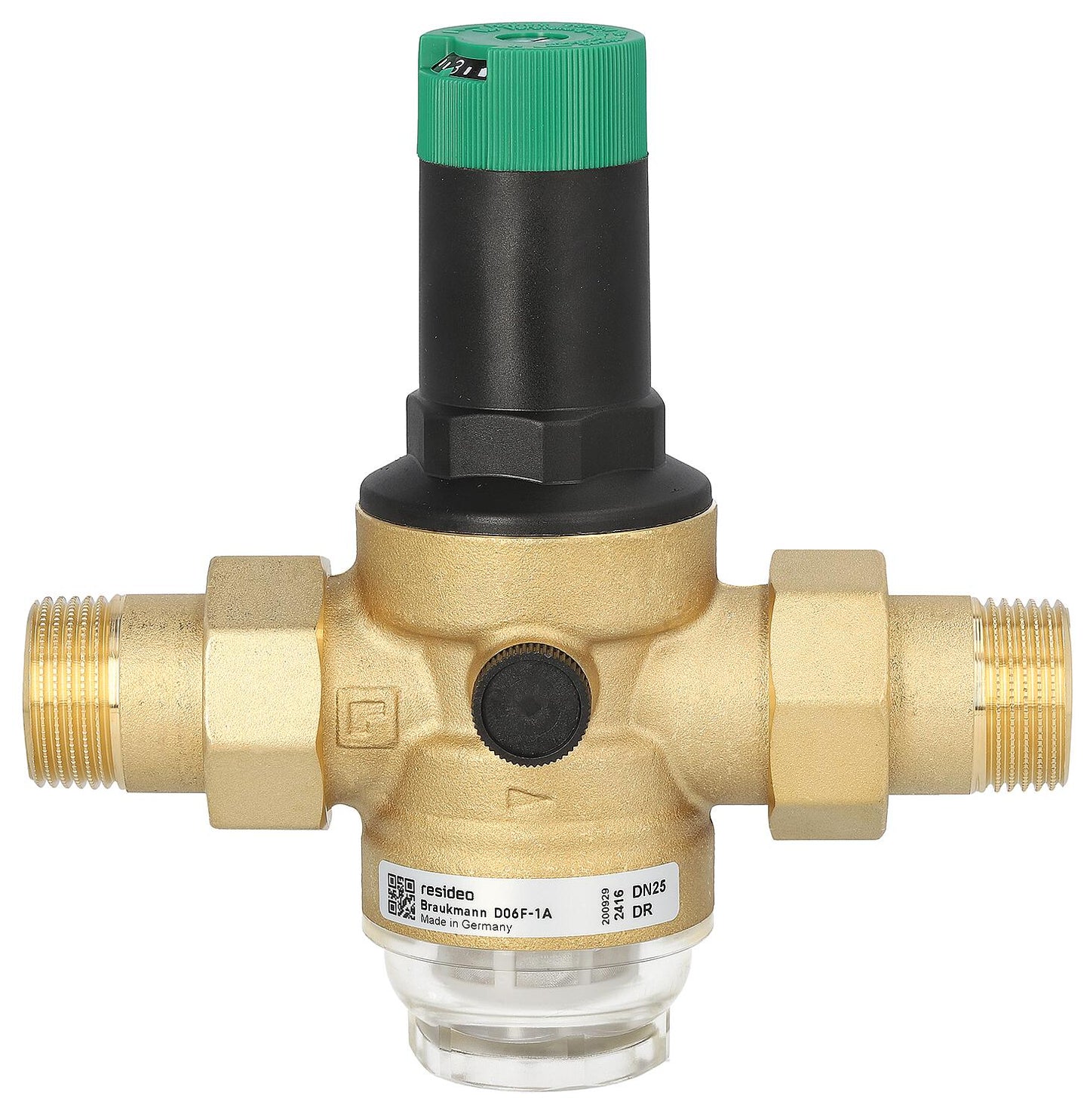

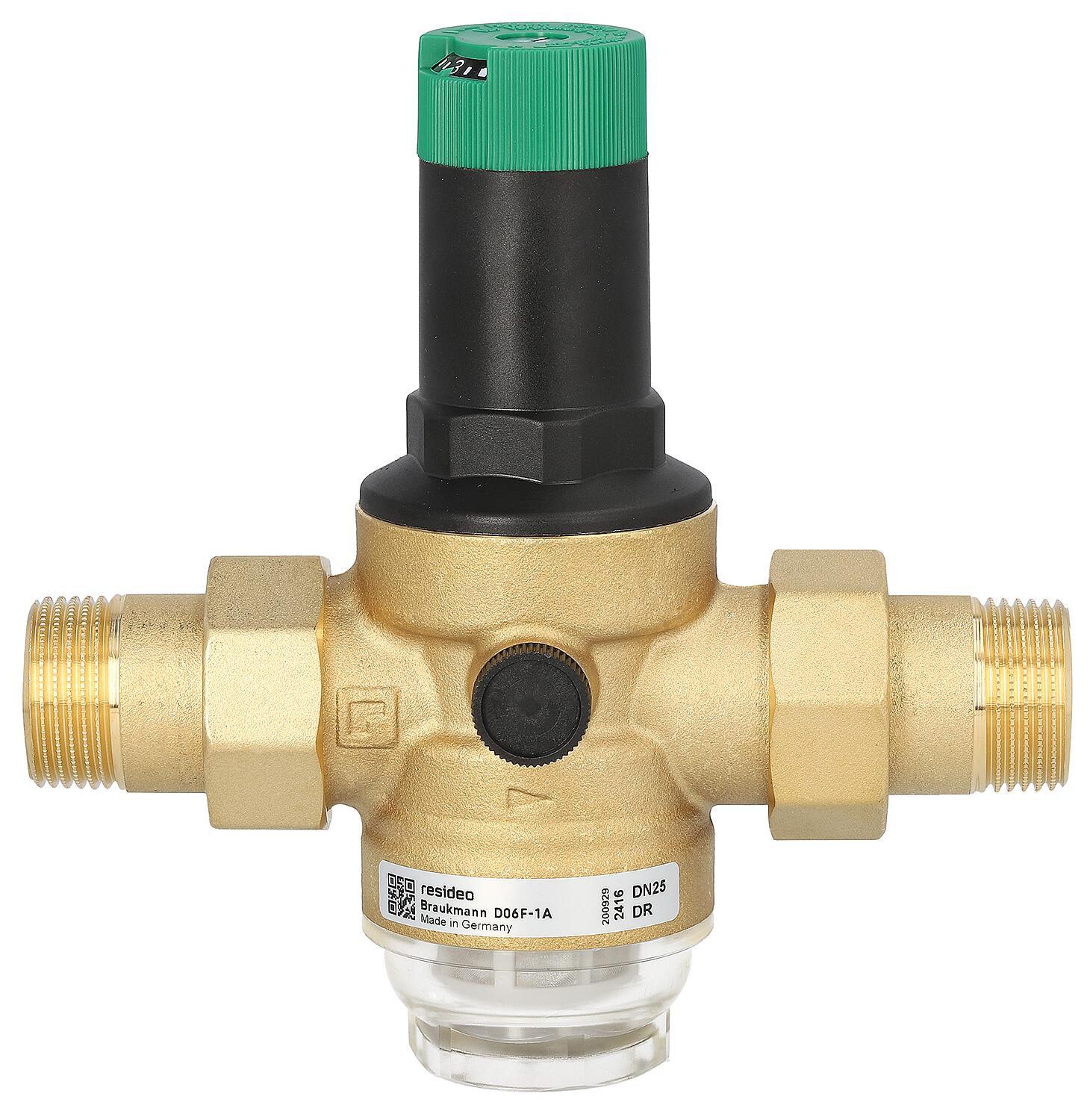

Braukmann Druckminderer D 06 F 2"A Gewindetülle mit Einstellskala (W1)

Bewertungen

| Eine Rezension schreiben

CHF 246.80

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

Resideo

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

• For use with water, oil-free compressed air and nitrogen within the scope of plant approval according to PED
• Outlet pressure: 1.5 - 6 bar
• Installation position: horizontal
• Pressure gauge connection on both sides DN 8 (1/4")
• Seals and membranes: NBR
• Delivery does not include a pressure gauge
• DIN/DVGW certified

• Housing made of dezincification-resistant brass
• Brass screw fitting
• Inlet pressure: max. 16 bar
• Operating temperature: max. +40°C
• Suitable pressure gauge (Order No.: 90 013 02)

kvs value [m³/h]	2.4
Brand	Resideo
Version = A	D 06 F
Overall length without screws [mm]	80
Manufacturer item number	D06F-1/2A
Unit price	CHF/piece
Ref. No.	D06F 1/2" A
Size	DN 15 (1/2”)
DVGW No.	0432
Overall length including screw connection [mm]	140
