Double-walled exhaust system kit 1 130 mm

Operating conditions:

• Standard fireplaces for the fuels gas, heating oil, solid fuels
• Tmax: 400°C in vacuum operation
• Dry operation with solid fuels
• Without guying from the last wall bracket, with static clamping strap up to 4 m

Material:

• 1.4404 for components exposed to exhaust gases
• 1.4301 for outer sheath
• 29 mm insulation
• 0.6 mm wall thickness

We'll calculate your chimney!

• In our online shop www.weinmannschanz.de, under Downloads – Planning Forms, you will find the PDF files “Data Collection for Evenes Chimney…”! Please send the completed form back to us. We will then create the cross-sectional calculation and a customized offer for you!

• Kit 1b
• approx. 1.25 linear meters of construction height
• Including clamps

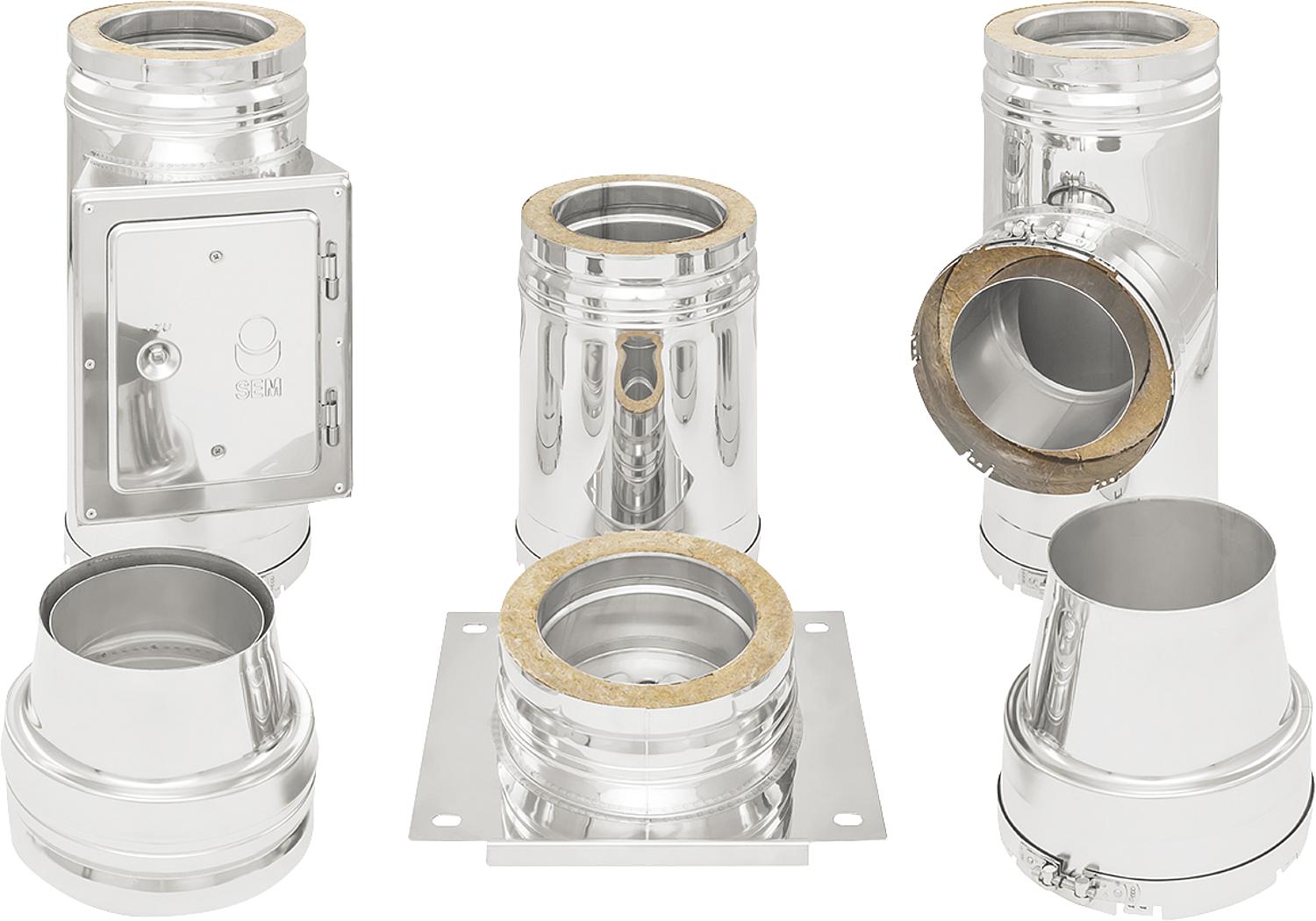

Consisting of:

• 1 x console plate
• 1 x cleaning element
• 1 x pipe element 253mm
• 1 x T-piece 87°
• 1 x transition pipe
• 1 x Muzzle end
