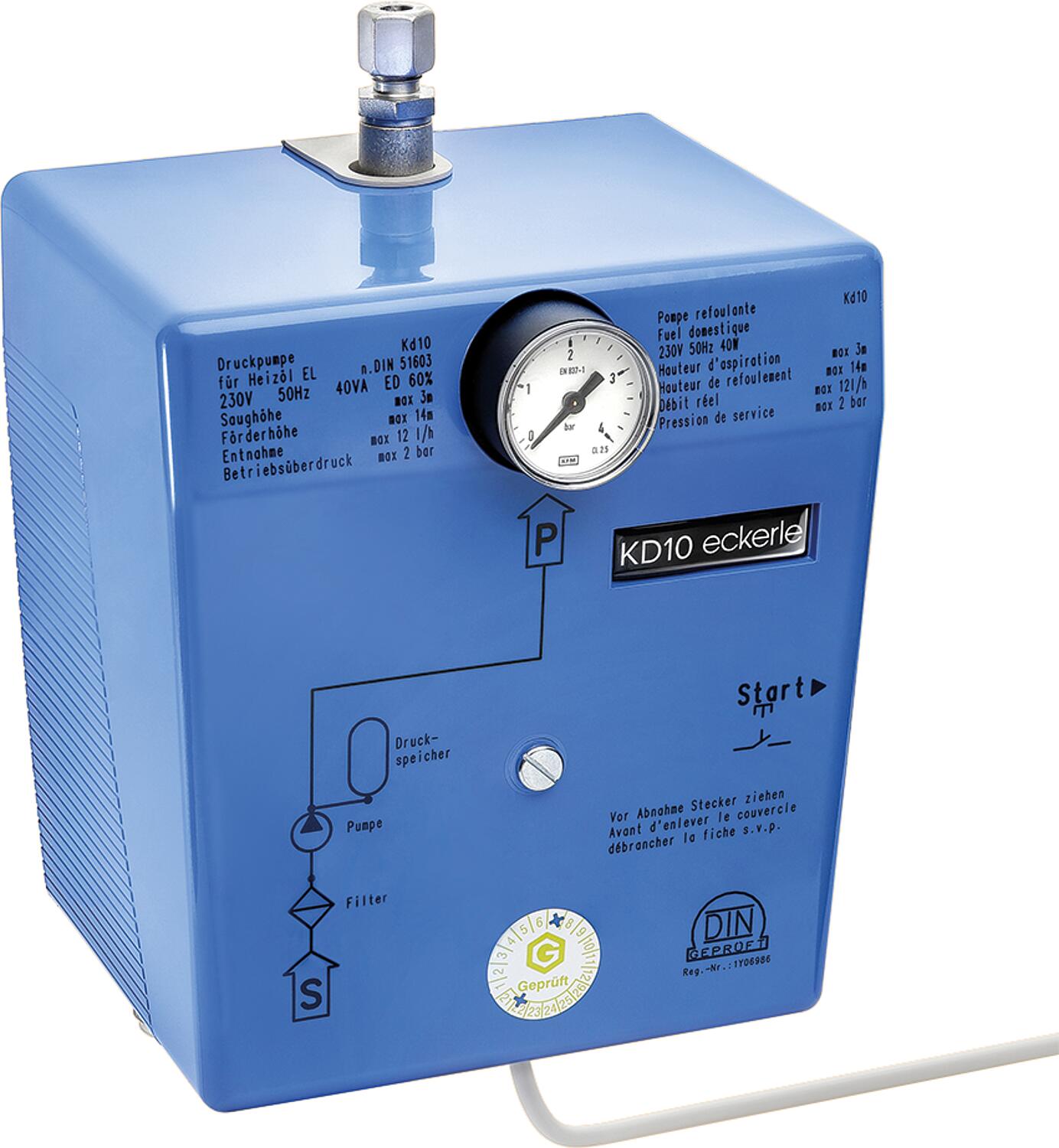

Eckerle KD 10 pressure pump unit

Name: Eckerle KD 10 pressure pump unit
Brand: eckerle
SKU: 31 001 02
Price: 877.95 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 877.95

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

eckerle

31 001 02

sofort lieferbar

Security policy

Delivery terms

Return policy

With oscillating piston drive, displacement-dependent control and safety device, pressure gauge, device for rapid emptying through the suction line, air processing, suction filter integrated in the sight glass
Pipe connections ø 8 x 1
Fully wired with Schuko plug and mounting strip
Oil drip tray with electronic control built into the device
Electrical connection specifications: 220 V, 50 Hz, 18 VA
Flow rate: 14 l/h at a maximum delivery head of 14 m, of which a maximum suction head of 3 m is possible.
No return line
Do not install a check valve in the suction line, as one is already present in the pump.
Dimensions (H x W x D): 280 x 80 x 150 mm
Weight: 4 kg
Centralized public water supply systems for up to approx. 12 consumers; ideal for year-round operation (bath boilers, etc.), especially recommended for rented apartments.
Automatic supply of oil burners in single-line operation
