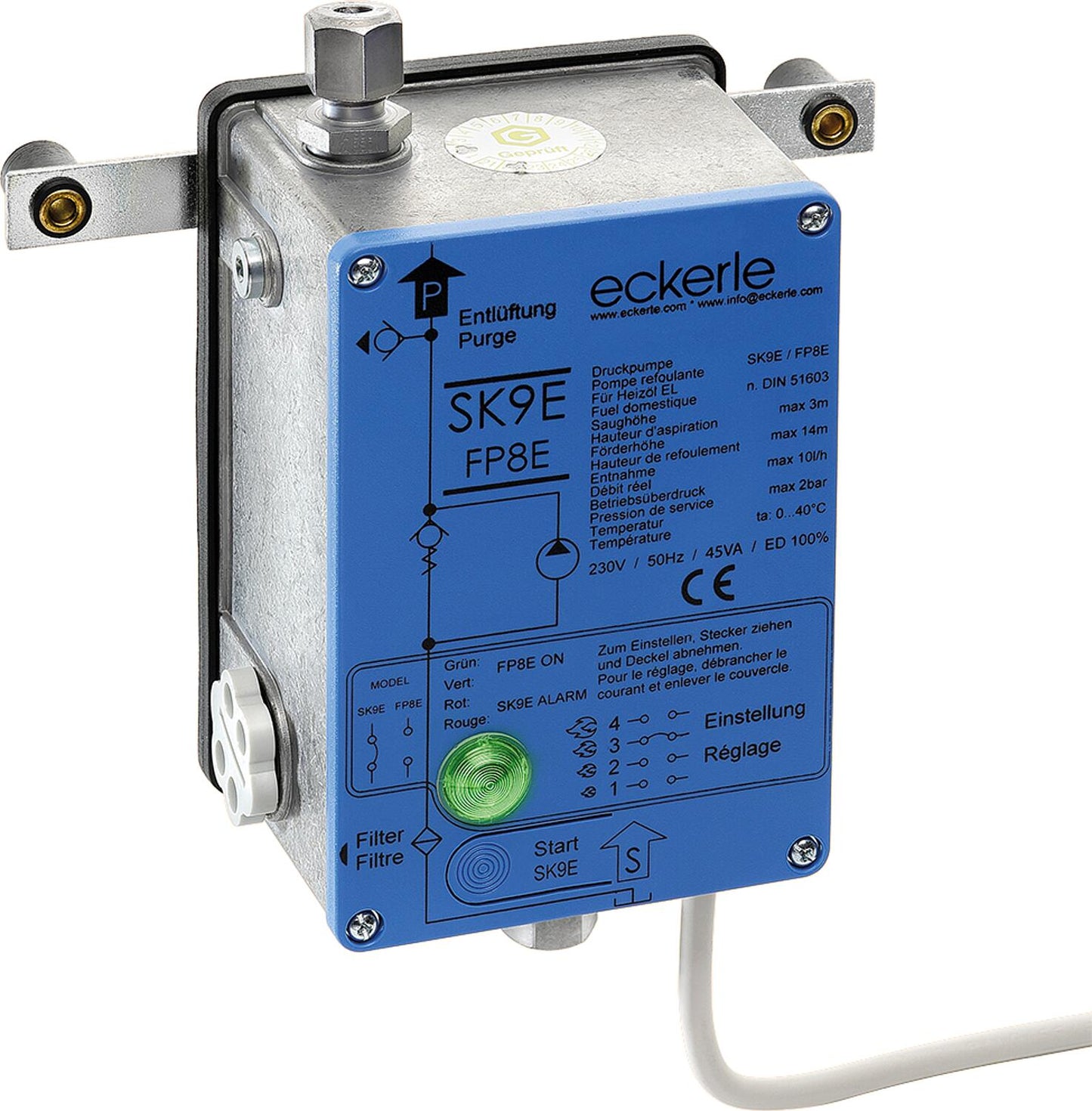

SK9E/FP8E pressure pump unit with electric four-stage control

Bewertungen

| Eine Rezension schreiben

CHF 659.75

% Sold out

Taxes included.

Quantity

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

Manufacturer:

Order No.:

Availability:

eckerle

31 001 11

sofort lieferbar

Security policy

Delivery terms

Return policy

Replaces the SK8, SK9E, FP6 and FP8E pumps.
The electronic circuit allows the user to choose between continuous operation for supplying oil furnaces (SK9E) and synchronous operation with the consumer (FP8E). Four operating speeds can be selected to achieve the desired pump output.
The pumping station consists of an electromagnetic oscillating piston pump.
SK9E: Automatic supply of heating oil to oil furnaces
FP8E: Heating oil transfer pump for consumers with their own control circuit, but also for automatic burners, oil stoves and tiled stoves
Voltage/Frequency: 230 V/50 Hz
Power consumption: 25 W
Protection class: IP 44
Maximum flow rate/height: 10 l/h/14 m
Maximum suction height: 3 m
Maximum pump pressure without oil extraction: 2 bar
Connections: ø 8 x 1 mm Cu pipe
Dimensions (H x W x D): 155 x 106 x 105 mm
