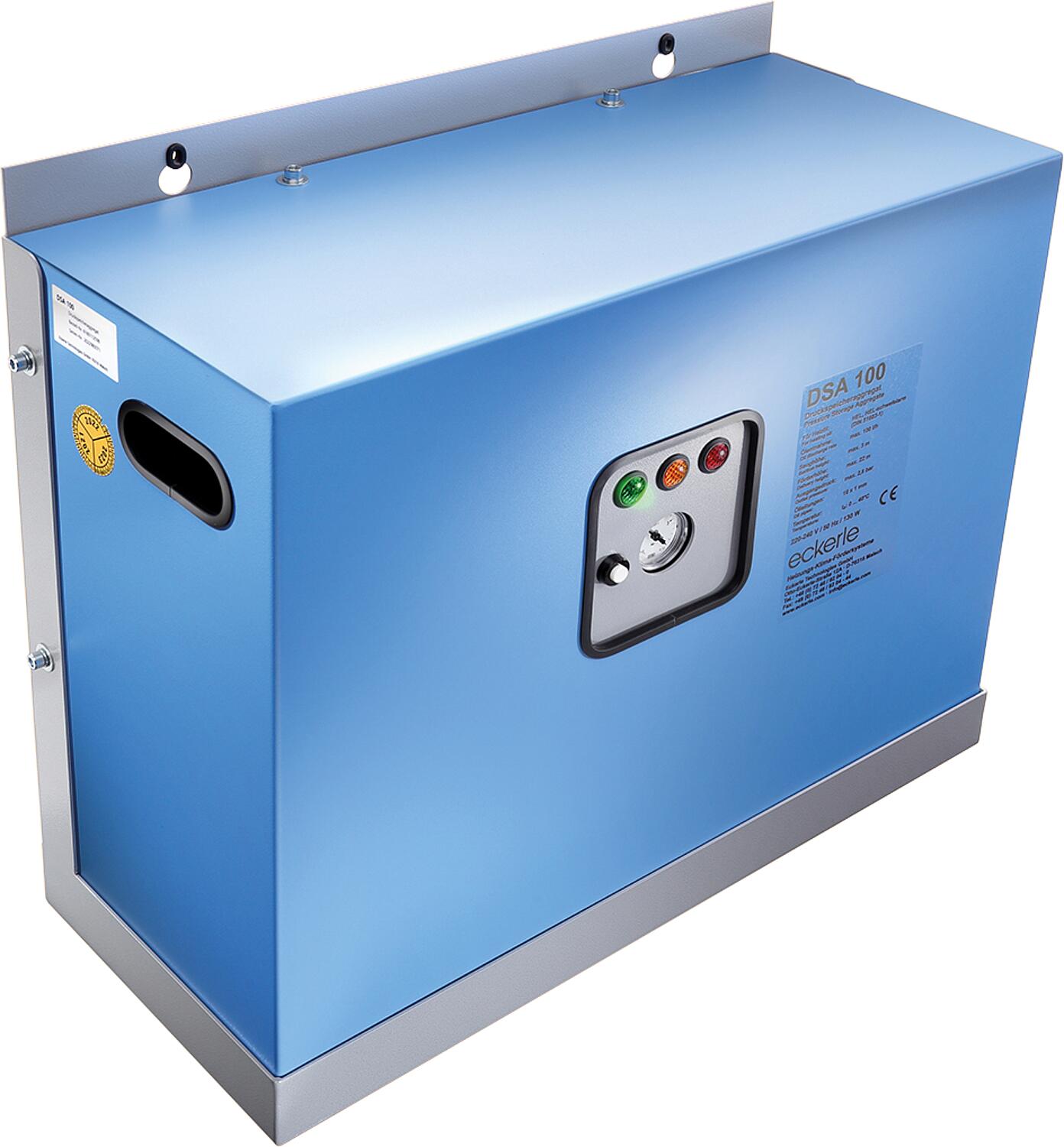

Eckerle DSA 100 pressure storage unit

• With internal gear pump,
• The pump fills a 5-liter membrane storage tank during storage charging operation.
• The control system is pressure-dependent and, as required by EN 12514, has a low oil level and line rupture protection system.
• The built-in check valve protects the suction line against unwanted pressure increases and prevents the backflow of the operating medium.
• Integrated oil drip tray with leakage monitoring
• Integrated suction filter
• Suction and pressure connection for copper pipes 10 x 1 mm
• For the central supply of larger residential complexes with multiple oil furnaces (from 12 supply points)
• Automatic oil supply for oil burners, CHP units or similar consumers in single-line operation
• Power range: up to 1000 kW

• Plug-and-play
• Connection: ø 10 mm x 1
• Electrical connection: 230 V / 50 Hz, 130 W
• Integrated check valve, suction side
• Maximum flow rate: 100/h
• Maximum delivery head: 26 m
• Maximum suction height: 3 m
• Maximum pump pressure: 3.2 bar
• Expansion vessel: 5 l capacity
• Dimensions (H x W x D): 510 x 530 x 240 mm
• Weight: approx. 21 kg

No backflow preventer may be installed in the suction line!
