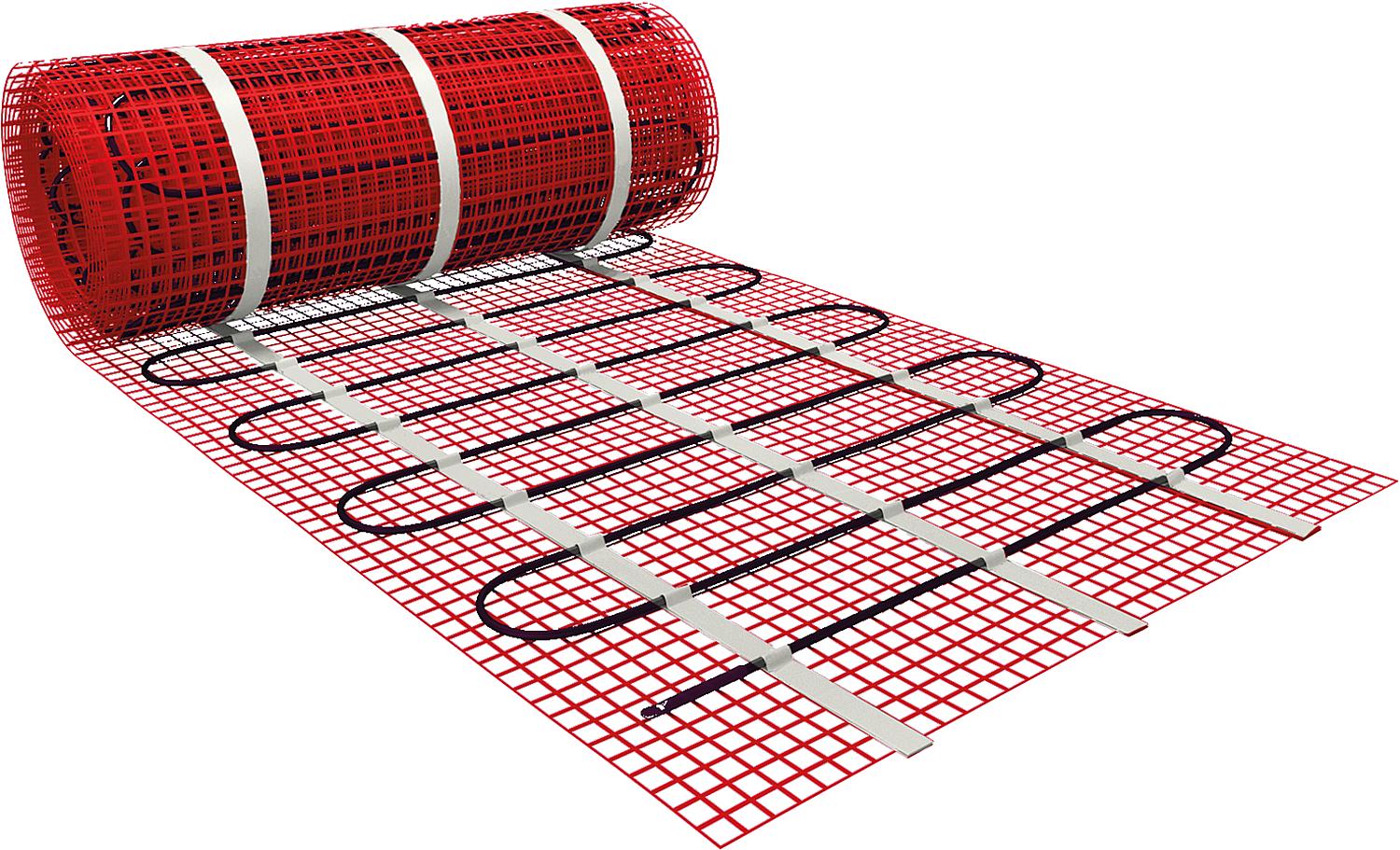

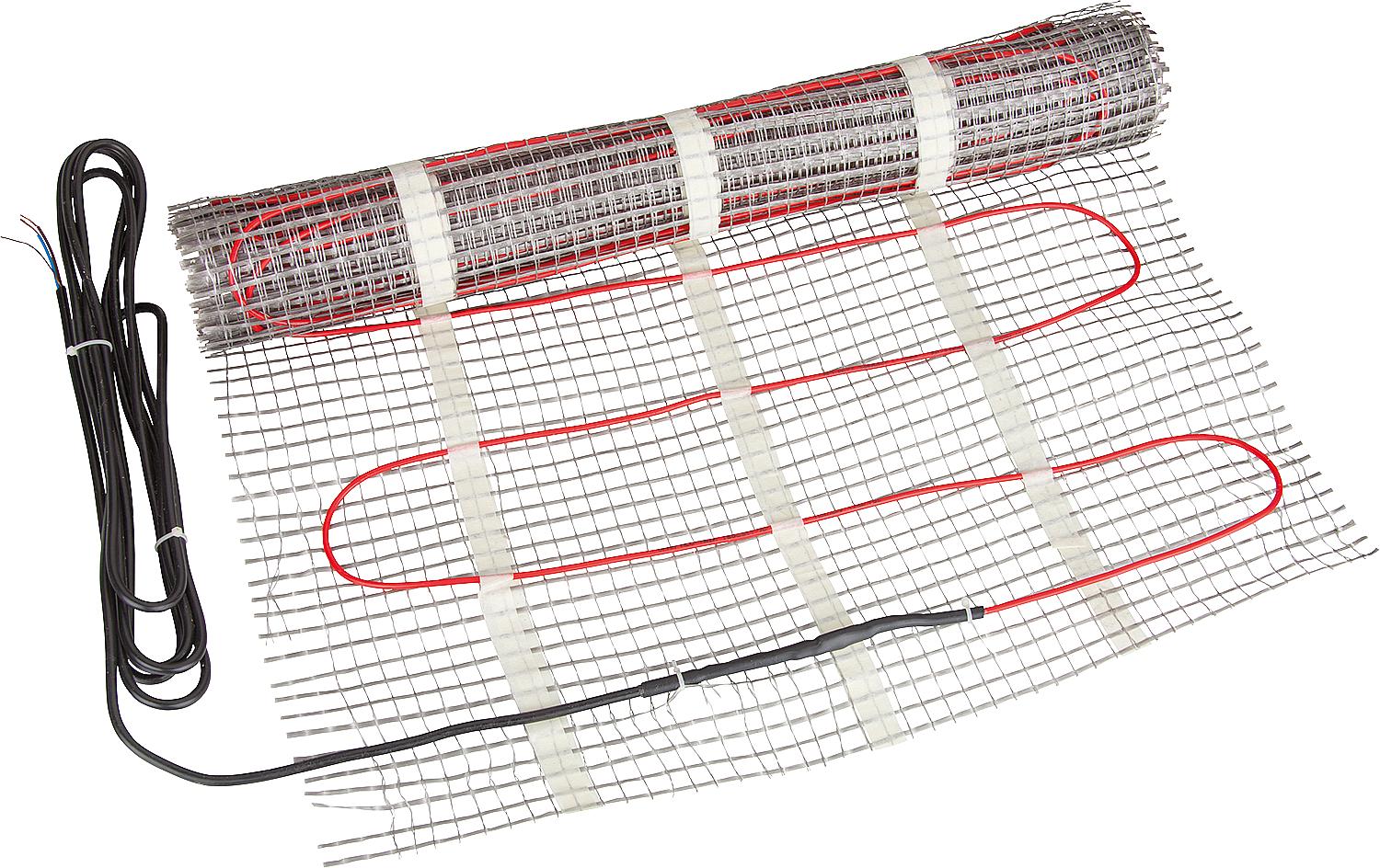

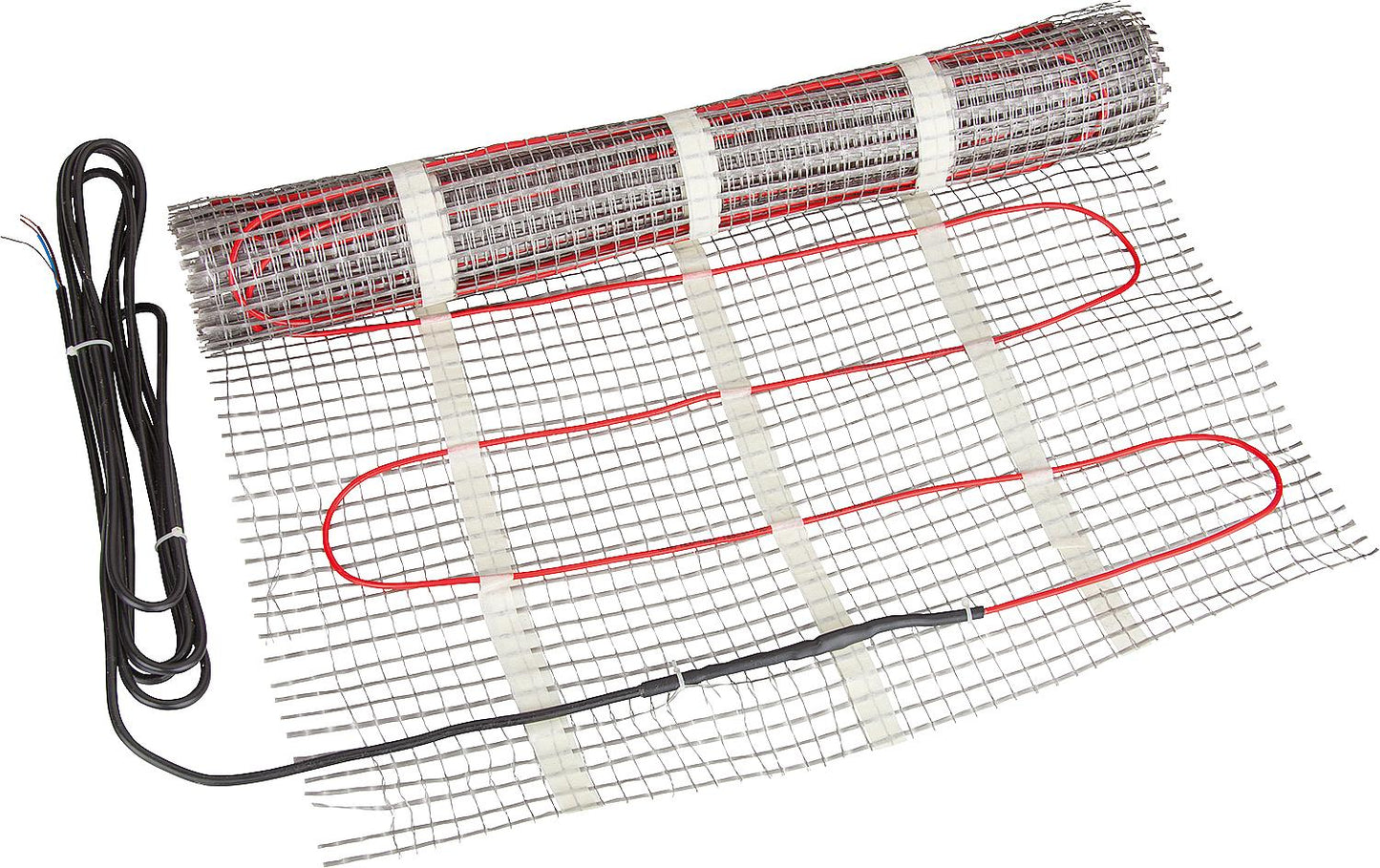

Thin-bed electric heating mat, 40.0 x 0.5m = 20m², 3000 W

This system was developed to install underfloor heating over existing tiled floors or floor coverings. The mat is approximately 4 mm thin and can be integrated into the adhesive surface without dismantling or milling. The mat lies almost directly beneath the surface. This allows the floor to heat up more quickly, making the system ideal for rooms where a constant level of occupancy is not required, such as bathrooms, hobby rooms, and recreational areas. The advanced thermostat takes the required warm-up time into account, ensuring the floor is always at the desired temperature at the desired time.

Technical data:

• Electromagnetically compatible 2-wire cable attached to the fiber optic network
• 2.5 m 3-core power cable
• Complete encasement by aluminum earth mantle
• Blind connection between heating and connection cable
• Chrome/nickel resistance wire
• PTFE (Teflon) insulation
• PVC protective coating
• 15.7 W/m heating cable, 230 V
• Cable diameter: approx. 3 mm
• Mat width: 500 mm
• Meets the NEN standards for installations in all damp rooms

• Scope of delivery:
• heating mat
• Conduit for soil sensor
