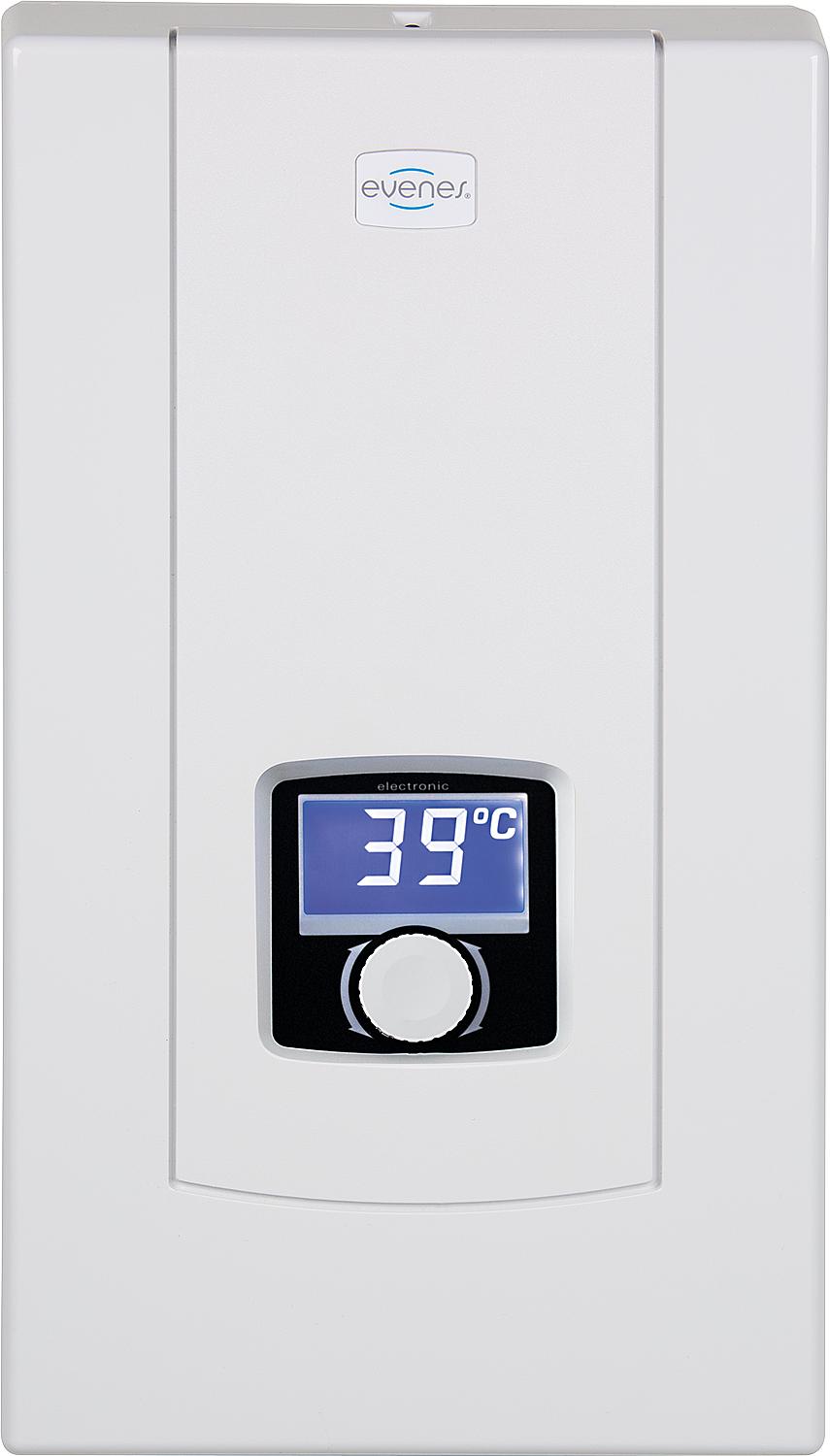

Durchlauferhitzer evenes PPE2 elektronisch, LCD 17/18/21/24KW, 400 Volt

• For one or more sampling points • Suitable for solar thermal systems up to a maximum inlet temperature of 60°C • Always precise temperature thanks to electronic control • 4 switchable power levels 17/18/21/24 kW (will be determined during installation) • User-friendly LCD display • Memory function – 3 frequently used temperatures can be saved and recalled at the touch of a button. • Electronic safety system via WTC safety switch • Maximum temperature lock (scald protection) Areas of application: • Individual and group supply for bathroom, kitchen sink or washbasin

Model	PPE2
Technical data
Energy efficiency class	A *)	A *)	A *)	A *)
Rated power [kW]	17	18	21	24
Permissible operating pressure [bar]	10	10	10	10
Water connections (screw connections)	DN 15 (1/2")	DN 15 (1/2")	DN 15 (1/2")	DN 15 (1/2")
Temperature selection range [°C]	30-60	30-60	30-60	30-60
Hot water output at Δt = 30 K [l/min]	8.1	8.7	10.1	11.6
Switch-on max. flow rate [l/min]	2.5	2.5	2.5	2.5
Voltage [V]	3~ / PE 400	3~ / PE 400	3~ / PE 400	3~ / PE 400
Rated current [A]	3 x 24.7	3 x 26	3 x 30	3 x 34.6
Minimum required cable cross-section [ mm² ]	4 x 6	4 x 6	4 x 6	4 x 6
Approx. weight with water filling [kg]	4.0	4.0	4.0	4.0
Dimensions (W x H x D) [mm]	245 x 440 x 126	245 x 440 x 126	245 x 440 x 126	245 x 440 x 126
Humidity level according to VDE	IP 25	IP 25	IP 25	IP 25
* ) This information complies with the provisional requirements for EU Regulation No. 812/2013, which will become binding from September 2015.

Brand	evenes
Unit price	CHF/piece
Type	PPE2
Energy Efficiency Class	A
