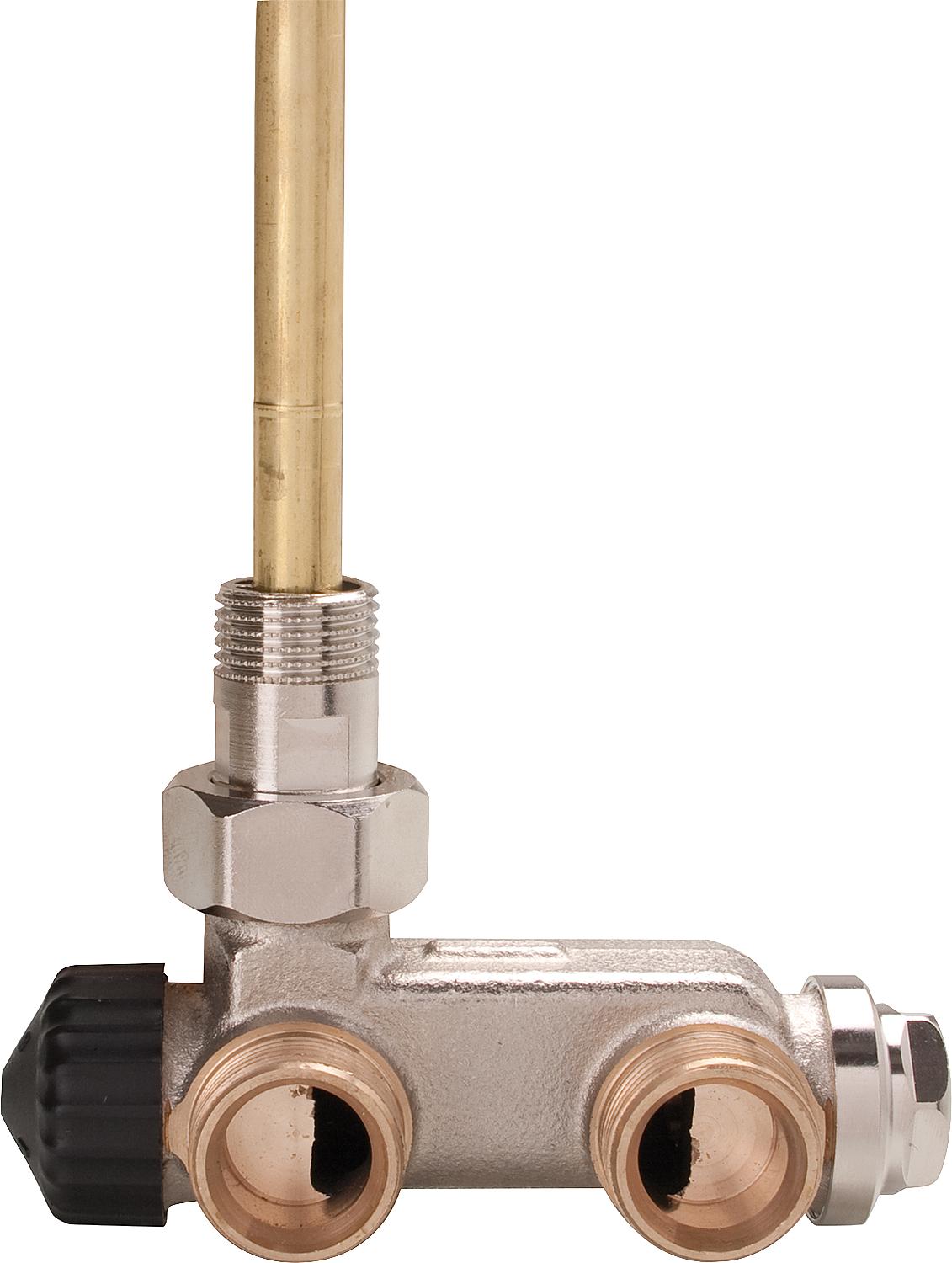

EZ valve with immersion tube DN 15 two-pipe system corner shape

EZ valve with immersion tube DN 15 two-pipe system corner shape

Bewertungen
CHF 89.85
CHF 89.85
% Sold out
Taxes included.

Lieferung Schweiz

Voraussichtliche Lieferung nach Versandart:

  • Economy (kostengünstig) wird berechnet
  • Express (Express-Lieferung) wird berechnet
  • Priority (schneller Standard) wird berechnet
Manufacturer:
Order No.:
Availability:
IMI HEIMEIER
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • DN 15 (1/2")
  • With dip tube
  • Maximum screw-in length: 250 mm
  • Housing made of corrosion-resistant, dezincification-free red brass, nickel-plated
  • With stainless steel spindle and double O-ring seal
  • Outer O-ring replaceable without draining the system
  • Flow and return can be shut off
  • Eurocone connection DN 20 (3/4"), in conjunction with compression fittings for plastic, copper, precision steel or composite pipe
  • Maximum operating temperature: 120°C
  • Maximum operating pressure: 10 bar

  • Presettable via return shut-off valve
  • black construction protective cap
Brand IMI HEIMEIER
Design Corner
Unit price CHF/piece
Ref. No. 3879-02.000
