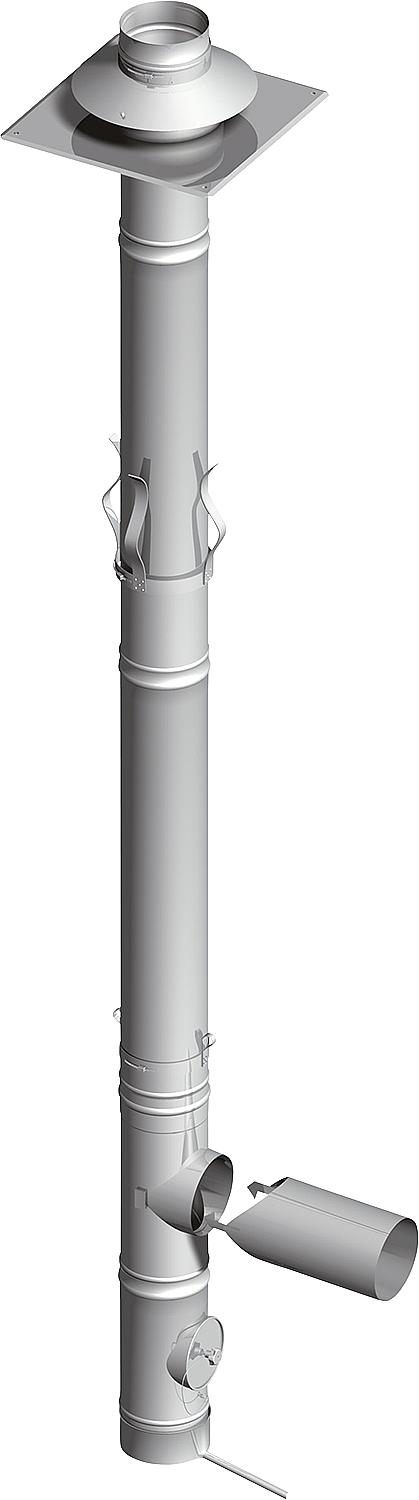

Single-wall exhaust system UNI-EW basic package DN 113 mm height 6 m

• Stainless steel exhaust system, single-walled

Operating conditions:

• Standard fireplaces for the fuels heating oil, gas, solid fuels
• Tmax: 400°C (exhaust gas)
• Vacuum operation
• Humidity-insensitive operating mode for oil and gas
• Dry operation with solid fuels

Material:

1.4404 for components exposed to exhaust gases

0.6 mm wall thickness (1.0 mm on request)

• EC Declaration of Conformity: CE 0432BPR119902
• VKFNr./n° AEAI 19321

Consult the responsible district chimney sweep before starting the installation.

• Effective height approx. 6 m

Consisting of:

• 1 x condensate tray
• 1 x Basic Element
• 1 x Lid FU (Tmax 400°C)
• 1 x T-piece 87°, 2-piece
• 1 x pipe clamp with drain eyes
• 1 x spacer
• 5 x pipe 1000 mm
• 1 x pipe 435 mm
• 1 x manhole cover with rain collar

We'll calculate your fireplace!

• In our online shop www.weinmannschanz.de, under Downloads – Planning Forms, you will find the PDF files “Data Collection for Evenes Chimney…”! Please send the completed form back to us. We will then create the cross-sectional calculation and a customized offer for you!
