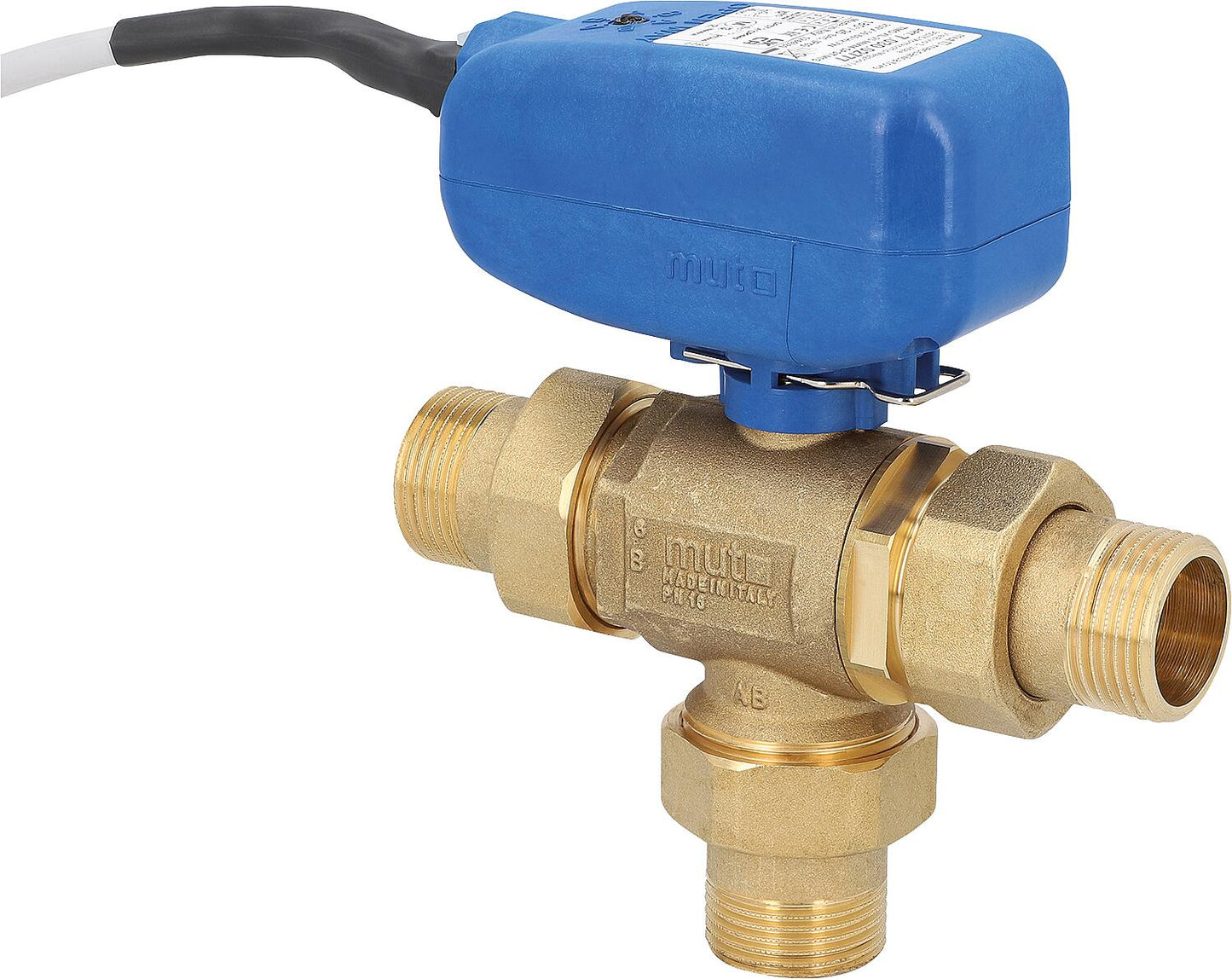

Electric ball valve MUT TMO XL 3-way, SPST control, 230 V, DN 25(1") male thread, with screw connection.

• For use in heating, cooling and drinking water systems
• Especially well suited for systems with higher flow rates, such as heat pumps.
• Easy and quick disassembly of the actuator
• With built-in relays, SPSTA control 1x permanent phase and 1x controlled phase
• Auxiliary microswitch integrated as limit switch
• Scope of delivery:

– Ball valve with actuator

– Molex cable Minifit JR6

Technical data:

• Ball valve material: brass CW617N
• Operating temperature range: 2 to 90 °C
• Maximum operating pressure: 10 bar
• Maximum differential pressure: 6 bar
• Operating voltage: 230 V/AC
• Protection class: IP 40
• Maximum power consumption: 7 W
• Connection cable length: 1.0 m
• Operating media: Water, glycol (max. 50%)

• Actuator response time: 6 s / 90°

• Including screws
