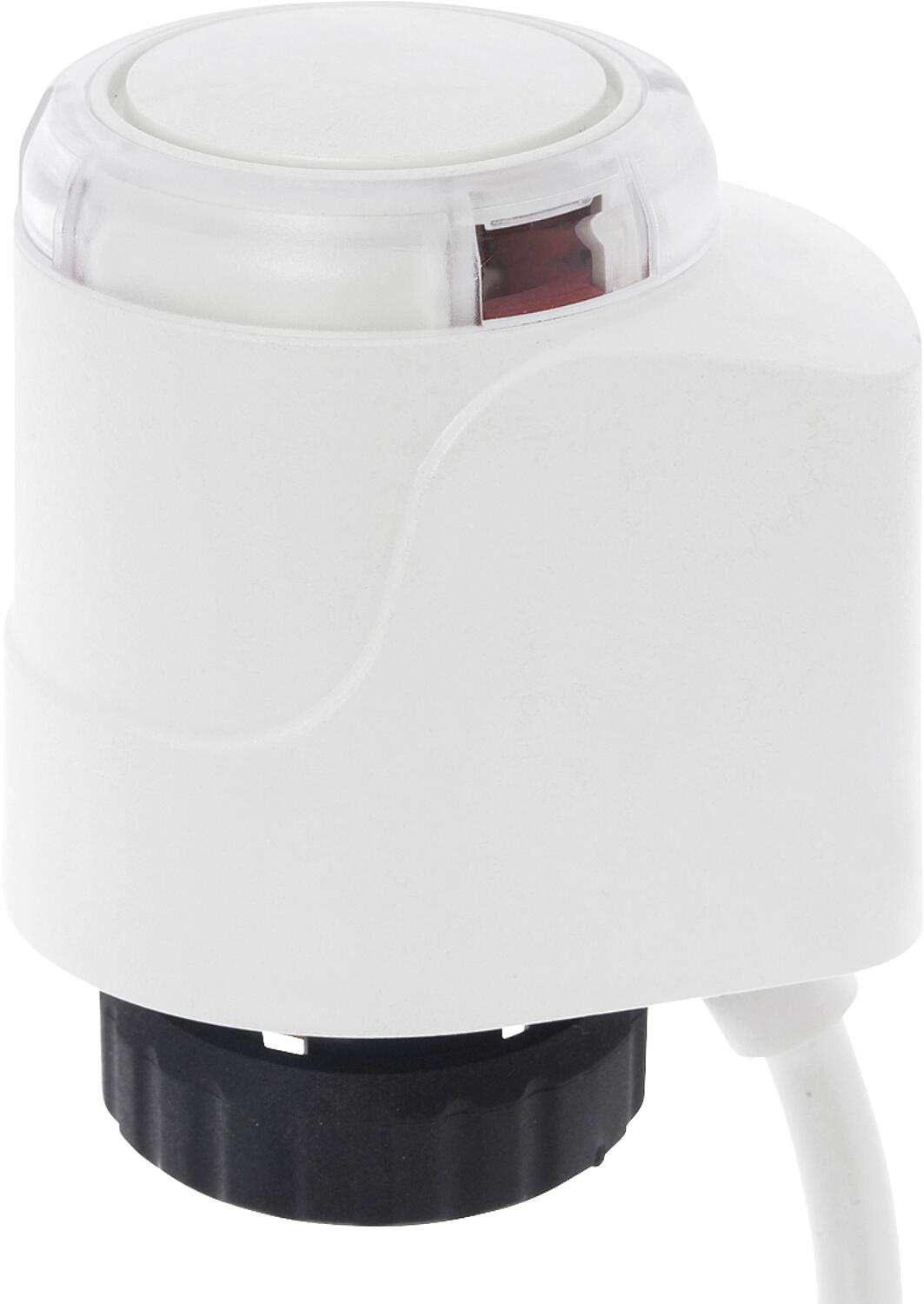

Electrothermal actuator IMI EMO-T, 230V normally open

Electrothermal actuator IMI EMO-T, 230V normally open

Bewertungen
CHF 36.45
CHF 36.45
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
IMI HEIMEIER
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • For HEIMEIER thermostat valve bodies and three-way valves
  • Position indicator visible from all sides
  • Connection: M30 x 1.5 (knobbed nut nickel-plated)
  • Protection class IP 54
  • Power consumption:
  • 2.5W (at 230V), 2W (at 24V)
  • Inrush current 250 mA: 1 s (at 230 V), 60 s (at 24 V)
  • Closing/opening times: approx. 4 min.
  • Actuating force: 125 N
  • Stroke: 4.7 mm
  • Ambient temperature: 5°C...50°C
  • Maximum medium temperature: 120°C
  • Connection cable: 1 m, 2 x 0.75 mm²
  • Dimensions (W x H): 57 x 65.5 mm
Brand IMI HEIMEIER
Power supply 230 V AC/DC
Design normally open (NO)
Unit price CHF/piece
Ref. No. 1837-00.500
