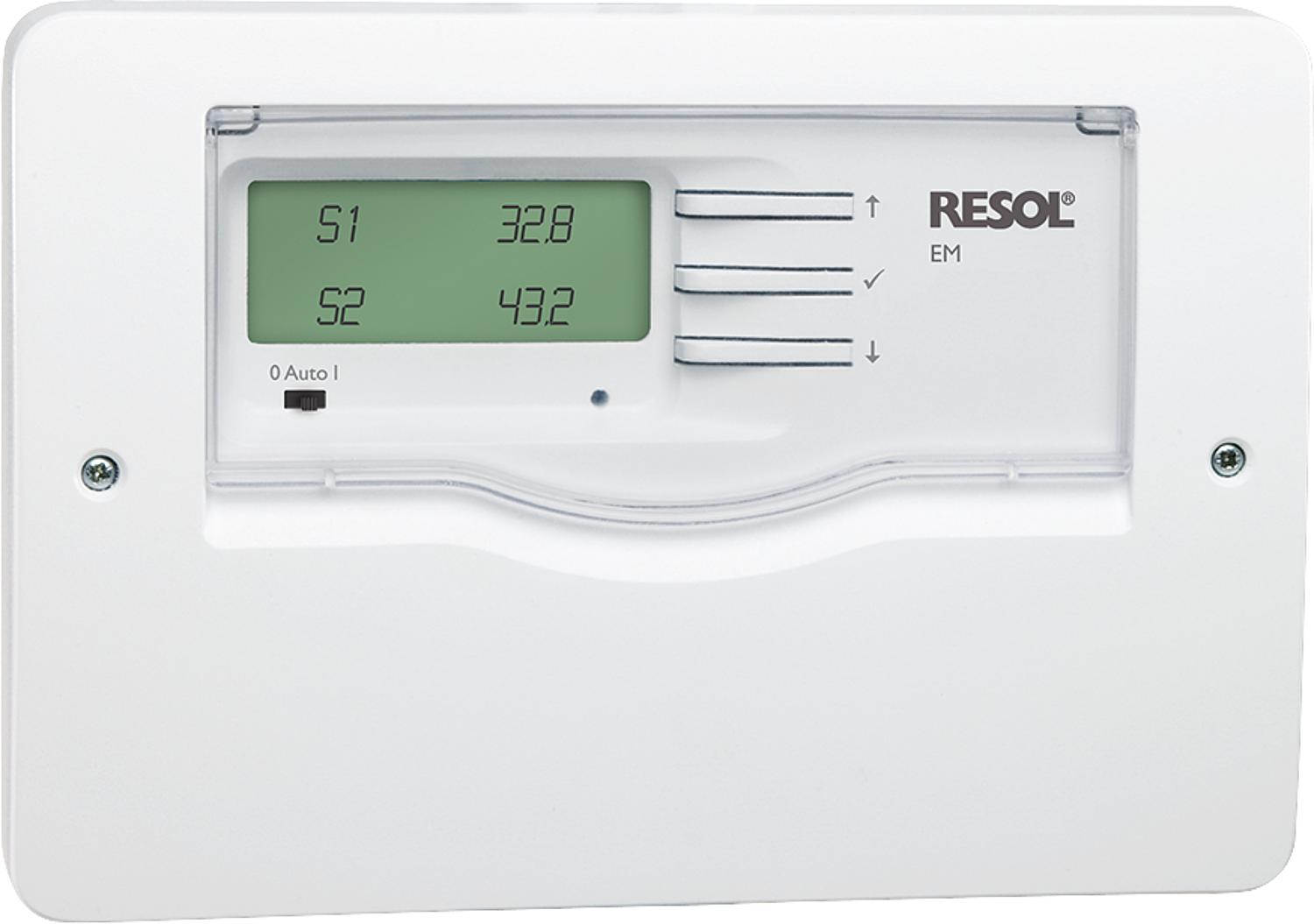

EM expansion module for MX and BX Plus

• Expansion of the controller by 6 sensor inputs and 5 relay outputs
• LC display with 7-segment displays
• Function check
• Slide switch 0 Auto I
• RESOL VBus® data interface
• Energy-saving switching power supply

• Inputs: for 6 temperature sensors Pt1000, Pt500 or KTY
• Outputs: 4 solid-state relays, 1 potential-free relay
• Switching capacity: R1 ... 4: 1 (1) A (100 ... 240) V~ (semiconductor relay), R5: 4 (1) A (100 ... 240) V~ (potential-free relay)
• Power supply: 100 ... 240 V~ (50 ... 60 Hz)
• Standby power consumption: < 0.7 W
• Data output: RESOL VBus®
• Dimensions: 144 x 208 x 43 mm
• Scope of delivery: 1 x EM expansion module
