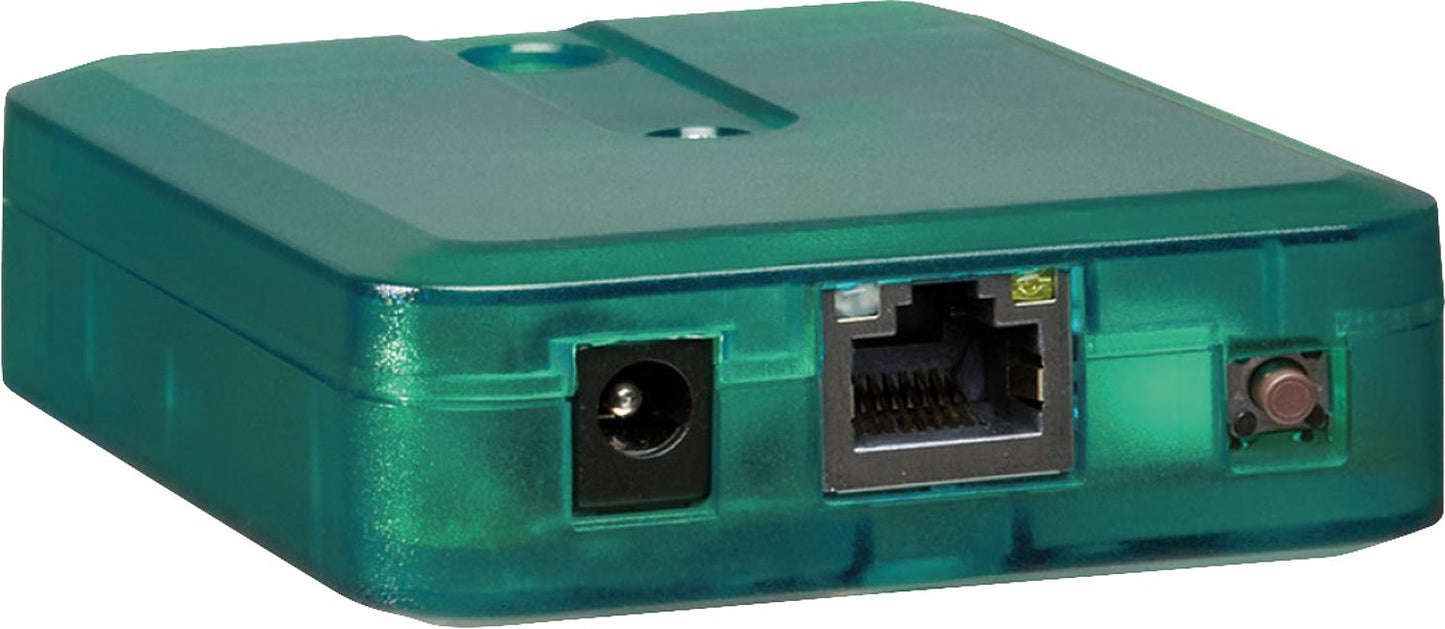

Resol KM2 communication module, network connection for Resol controls

• Internet access to the system via VBus.net
• Convenient system parameterization possible with the RESOL parameterization tool RPT
• For all RESOL controllers with VBus®
• Wi-Fi functionality
• Software updates

Technical data:
• Housing: Plastic
• Protection class: IP 20 / EN 60529
• Ambient temperature: 0 … 40 °C
• Indicator: Operating control LED
• Data interfaces: RESOL VBus® for connection to RESOL controllers, 10/100 Base TX Ethernet, Auto MDIX, WLAN 2.4~2.4835 GHz
• WLAN encryption: WEP, WPA/PSK, WPA2/PSK
• Power consumption: < 1.75 W
• Operating voltage of plug-in power supply: 100 … 240 V~ (50 … 60 Hz)
• Rated current: 146 mA
• Input voltage communication module: 12 V DC ± 5%
• Dimensions: 95 x 70 x 25 mm
