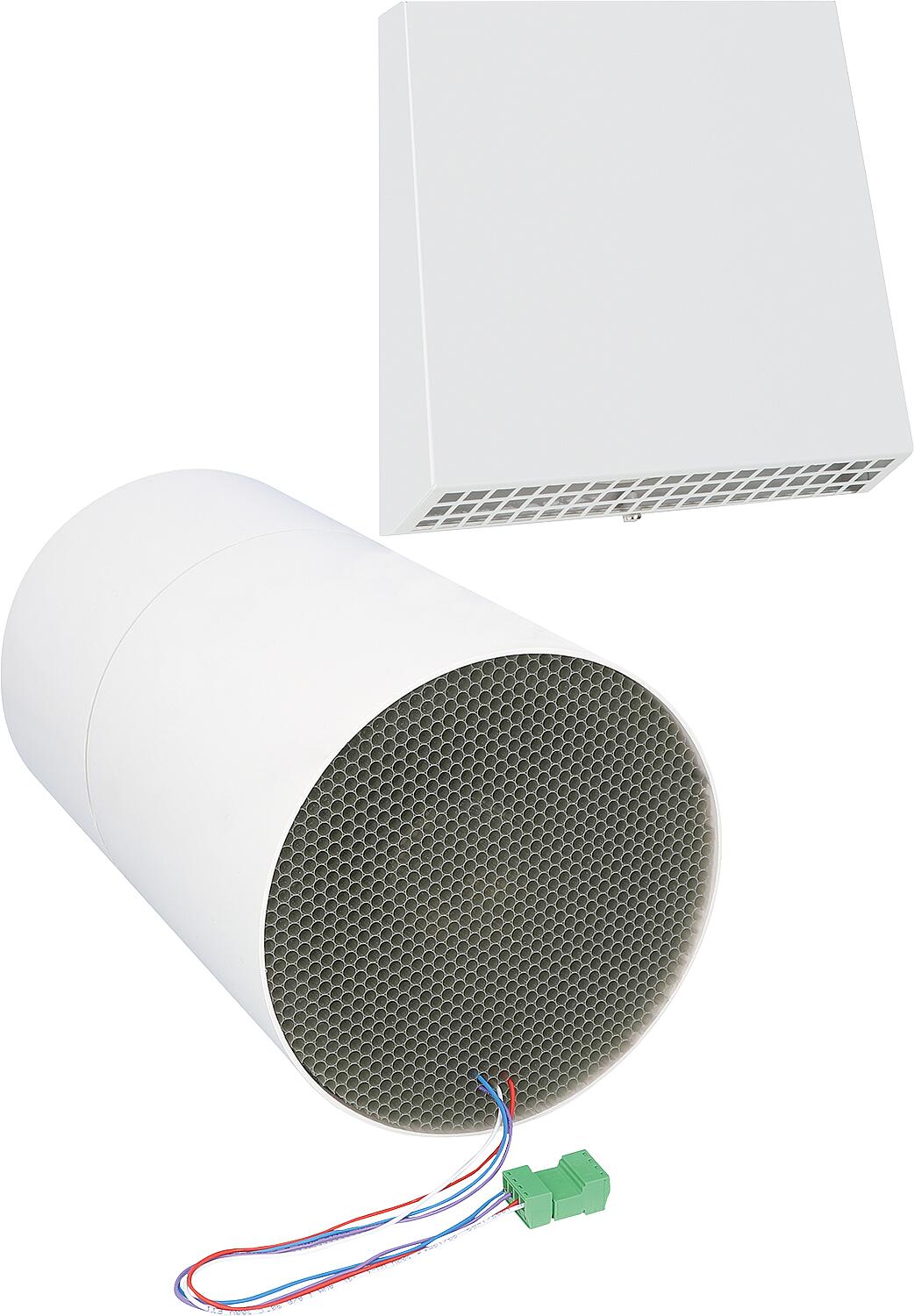

EventAir 2.0 SE Lüftungseinheit mit WRG, mit Schalldämmmatte und Wetterschutzhaube (RAL 9016)

The EventAir 2.0 ventilation unit is a decentralized ventilation system for controlled room ventilation with heat recovery. Using multiple units in pairs allows for the ventilation of entire residential units or buildings. When operating with heat recovery, the ventilation unit works in two time intervals. In the first interval (exhaust air phase), the exhaust air is drawn out of the room via the ventilation unit. The air flows through the ceramic heat exchanger inside the unit, warming it. In the second interval (supply air phase), the ventilation unit reverses the direction of airflow, and fresh outside air is drawn into the room. This air flows through the heat exchanger, which releases the previously stored heat back into the room. In this way, heat recovery of up to 99% is achieved. The principle of charging and discharging a heat exchanger is known as regenerative heat transfer. When a single unit is operating, a positive pressure (supply air phase) or negative pressure (exhaust air phase) is created in the room being ventilated, depending on the operating phase. To ensure a balanced ratio between supply and exhaust air volume, the use of EventAir 2.0 units in pairs is recommended. The EventAir 2.0 control system allows for the simultaneous operation of up to three pairs of units.

• 2 operating modes: Summer operation (supply or exhaust air mode without heat recovery) Winter operation (reversing mode with heat recovery)
• Sleep timer function (device switches off at the touch of a button and switches back on after 2 hours of sleep time)
• Easy cleaning of the heat exchanger thanks to completely removable internal components
• Expandable to 10 or SE version to 18 devices with expansion set (98 007 69)
• SE version without integrated humidity sensor
• Operation only possible via additional control

Scope of delivery:

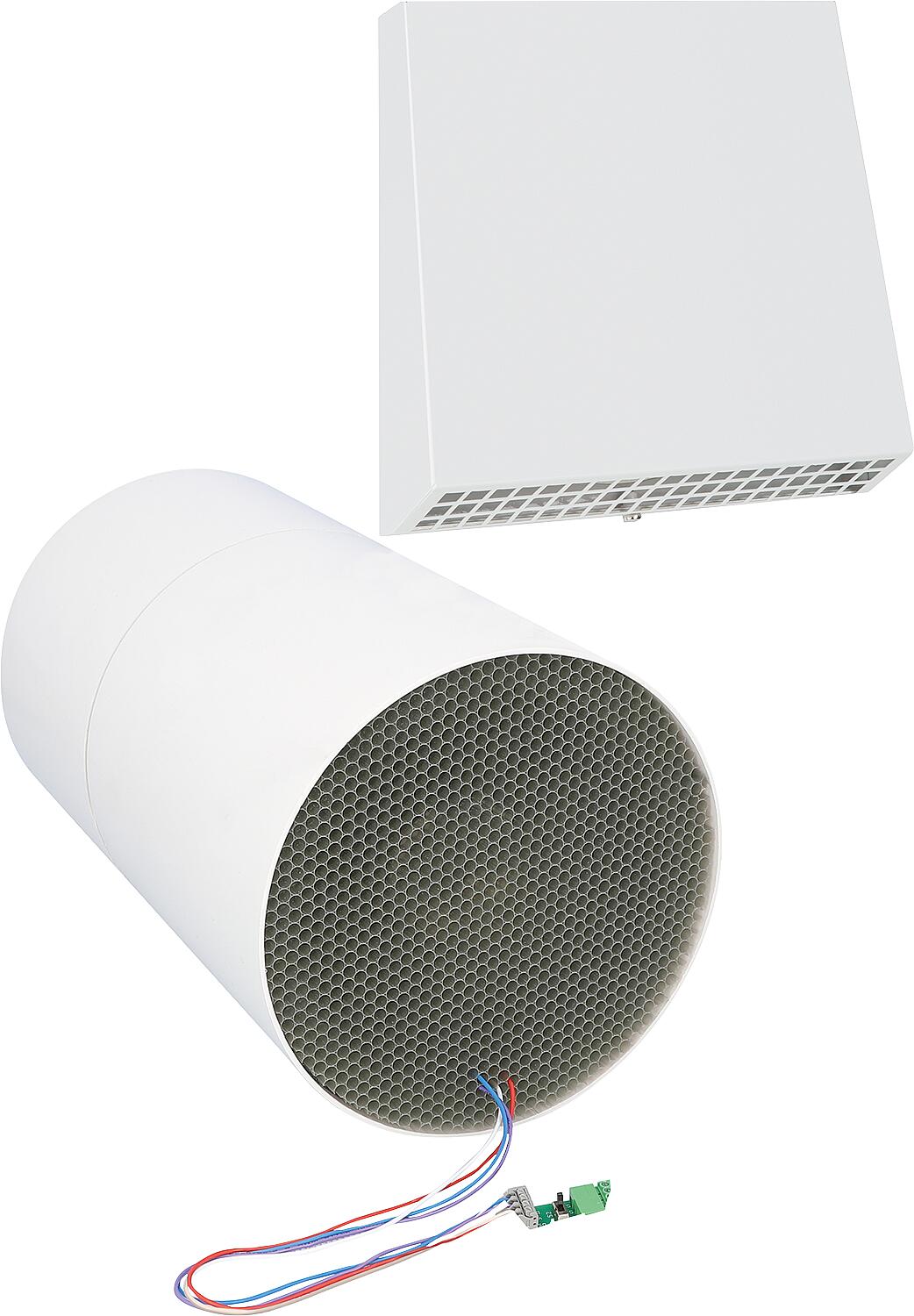

• Decentralized ventilation unit with ceramic heat exchanger
• Outer panel: white sheet steel
• Soundproofing mat

Required accessories:
• Inner panel: Order no.: 98 003 47 or 98 003 48
• Control unit: Order no.: 98 008 19
• Wall insulation sleeve: Order no.: 98 003 49

Technical data:
• Flow rate: 10/15/21/30/40 m³/h
• Voltage: 12 V
• Power consumption: 0.85/0.95/1.15/1.7/2.15 W
• Sound pressure (at 3 m): 11/15.7/21/32.5 dB (A)
• Protection rating: IP22
• Heat recovery rate up to 99%
• Minimum wall thickness: 260 mm
• Required core drilling: ø 200 mm
• Filter class: G3, regenerable
