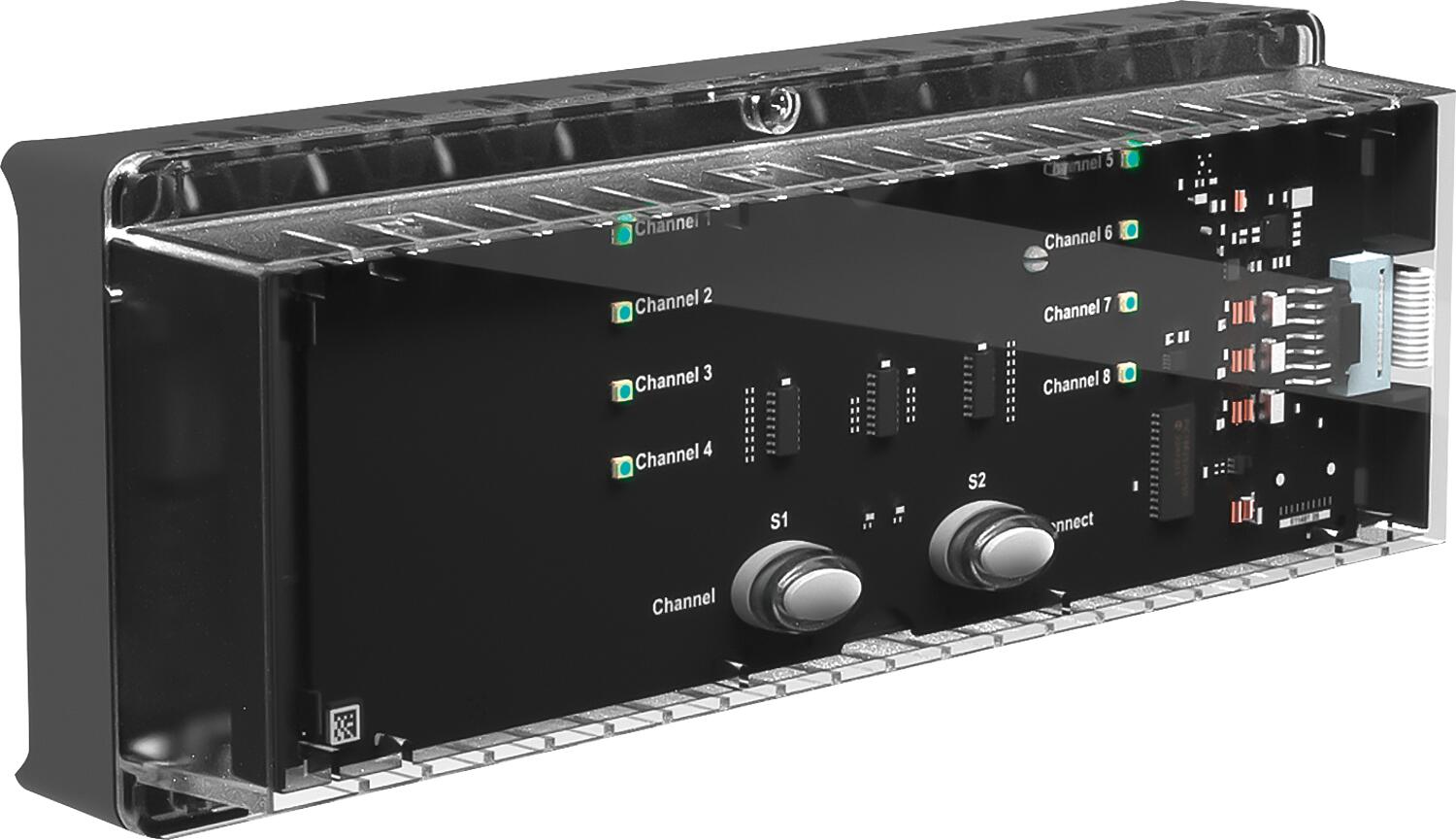

Alre radio receiver strip, HTFRL-316.225, 8-channel

• Indicators: 3 color LEDs, one LED per channel for multiple reception channels
• For installation in the heating circuit manifold
• Including pump module
• Master-slave operation
• Status display of the radio connection for each channel
• Antenna integrated into receiver strip
• Only compatible with Alre wireless room thermostats

Technical data:

• Operating voltage: 230 V, 50 Hz
• Transmission frequency: 868.3 MHz
• Protection rating: IP20
• Switching capacity: 690 W
• Switching voltage: 230 V, 50 Hz

• 8-channel radio receiver
• 9 relay contacts normally open 3 (1) A
• Maximum 3 actuators per heating circuit can be connected directly (total maximum 20 actuators)
• Maximum 8 time zones possible (i.e., up to 8 transmitters with clocks can be connected)
• Dimensions (W x H x D): 255 x 100 x 61.5 mm
