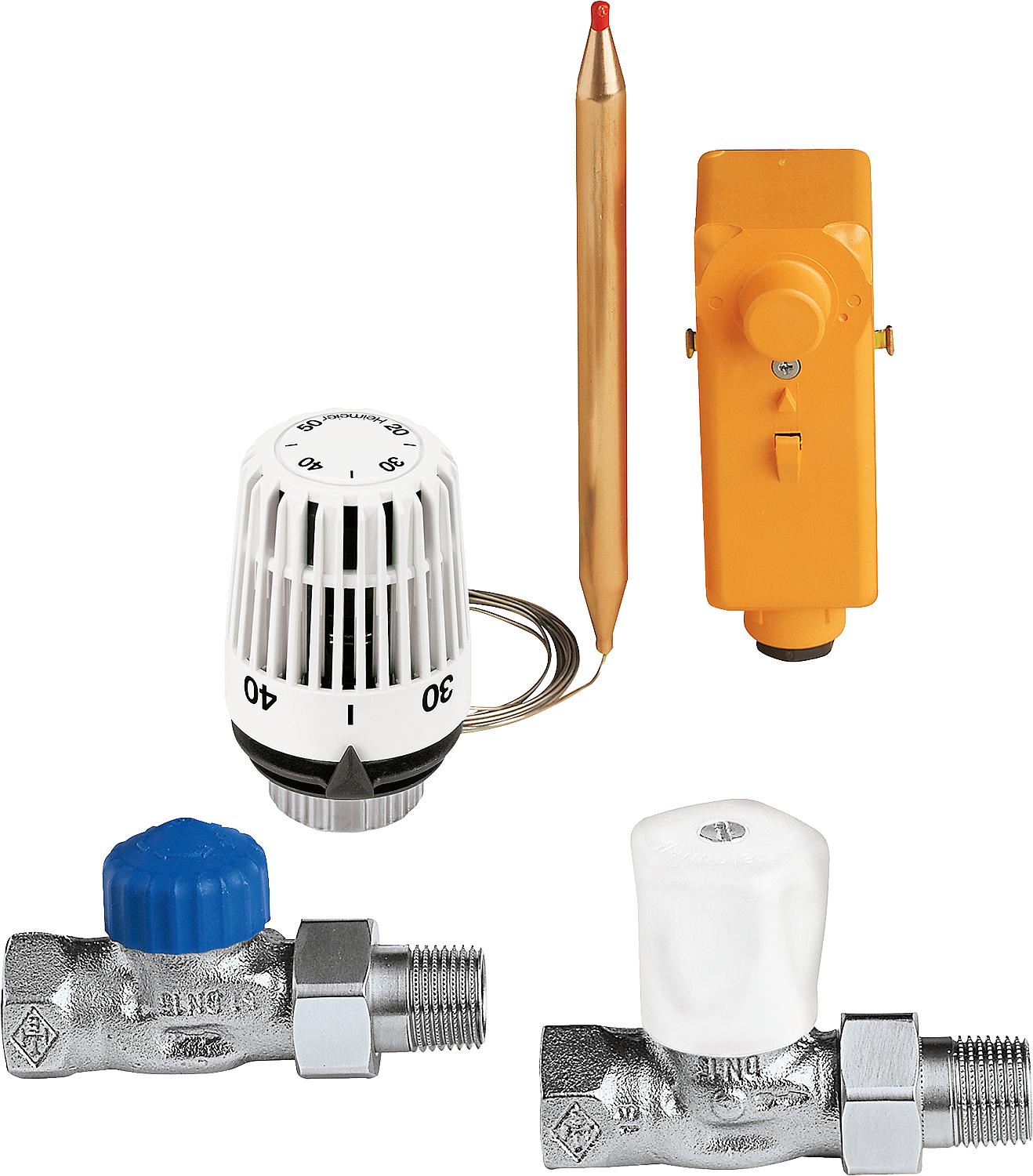

Floor control set for floors up to 45 m² DN: DT 10 (3/8'') DM 15 (1/2'')

• For constant control of the flow temperature.
• Application: For combined underfloor/radiator heating systems

Consisting of:

• 1 x Thermostat head with surface-mounted sensor and mounting material
• Setpoint range: 20°C...50°C
• Key number: 20304050
• 2 m capillary tube
• 1 x electric pipe clamping regulator with mounting material
• Setting range: 10°C...90°C
• 230 V, 15 A
• with concealed temperature setting
• 1 x Thermostatic valve body / Mikrotherm regulating valve (bypass) each
• Set 1: DN 10 (3/8") / DN 15 (1/2")
• Set 2: DN 15 (1/2") / DN 20 (3/4")
• Set 3: DN 20 (3/4") / DN 25 (1")
• Set 4: DN 25 (1") / DN 32 (1 1/4")
• Transitional form
• Red brass, nickel-plated
