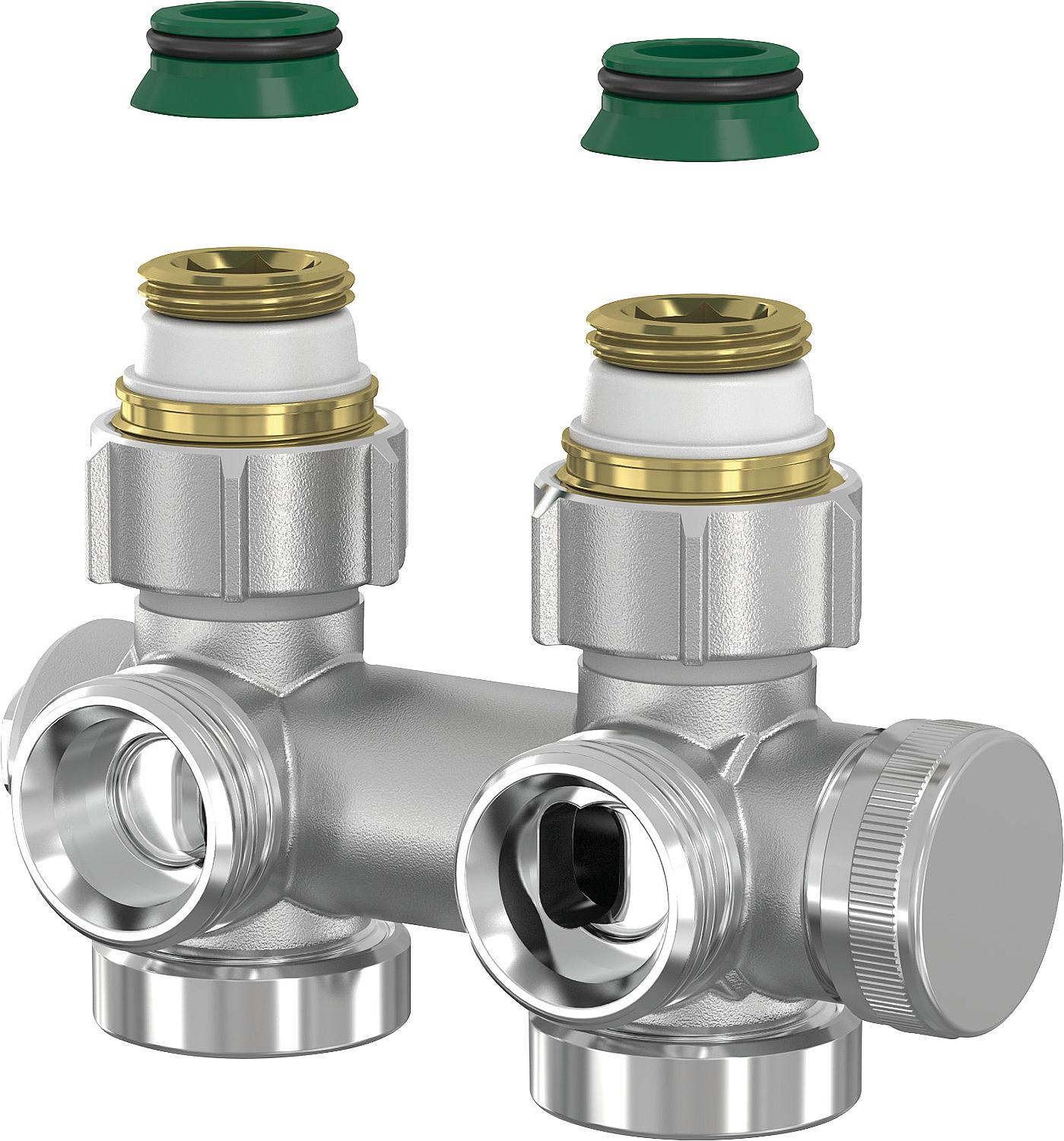

Simplex Universal valve block with drain, for two-pipe systems

• Suitable for installation as a corner or through-passage configuration
• Integrated drain valve
• Lockable
• Double-sided spindle shut-offs also allow for hydraulic balancing.
• Bypass adjustable for single-pipe design

Technical data:

• Maximum operating temperature: 110°C
• Maximum operating pressure: 10 bar
• Fitting material: nickel-plated brass
• Axle spacing: 50 mm
• Piping connection: DN 20 (3/4") Eurocone
• Radiator connection: DN 15 (1/2") AG
• Operating medium: Heating water according to VDI 2035
• Scope of delivery:
• Tap block
• Transitions DN 20 (3/4") male thread x DN 15 (1/2") male thread
• End caps DN 20 (3/4")
