For installation in two-pipe heating systems on radiators with a lower two-point connection, such as bathroom, designer, universal or valve radiators.
• Automatic hydraulic balancing through integrated flow regulator, ensuring that the flow rate in the radiator is never exceeded, even when neighboring valves close.
• The required flow rate of each radiator is set directly on the thermostatic valve body.
• The flow rate can be continuously adjusted within the flow rate range using the adjustment key, setting 1-15
• The thermostat head and shut-off head can be interchanged, making it suitable for mounting on the left or right side of the radiator.
• Flow rate range from 10 to 150 l/h
• Connection Th-head: M30x1.5
• Center-to-center distance: 50 mm
Technical data:
• Valve material: Red brass, corrosion-resistant
• Spindle material: Stainless steel spindle with double O-ring seal
• O-ring material: EPDM
• Maximum operating pressure: 10 bar
• Maximum operating temperature: 120 °C
• Maximum operating temperature with casing: 90°C
• Minimum operating temperature: -10°C
• Differential pressure max.: 60 kPa
• Minimum differential pressure:
- 10-100 l/h = 10 kPa
- 100-150 l/h = 10 kPa

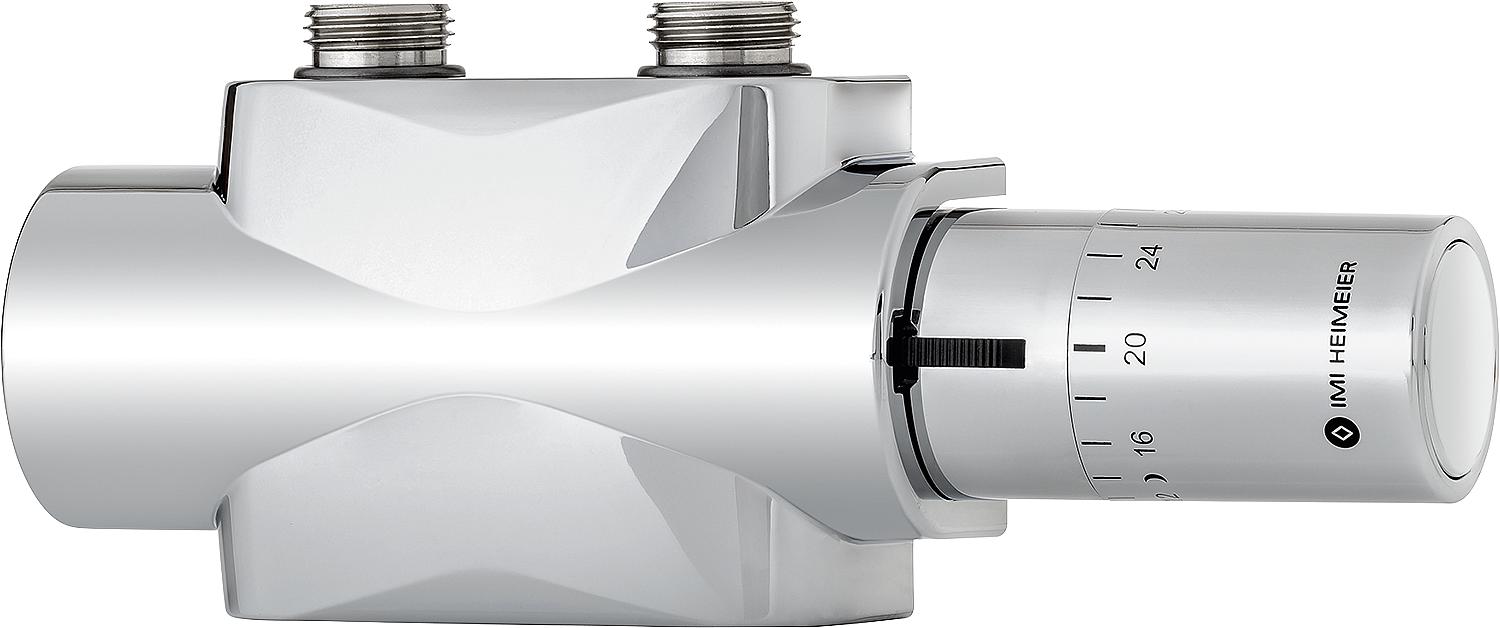

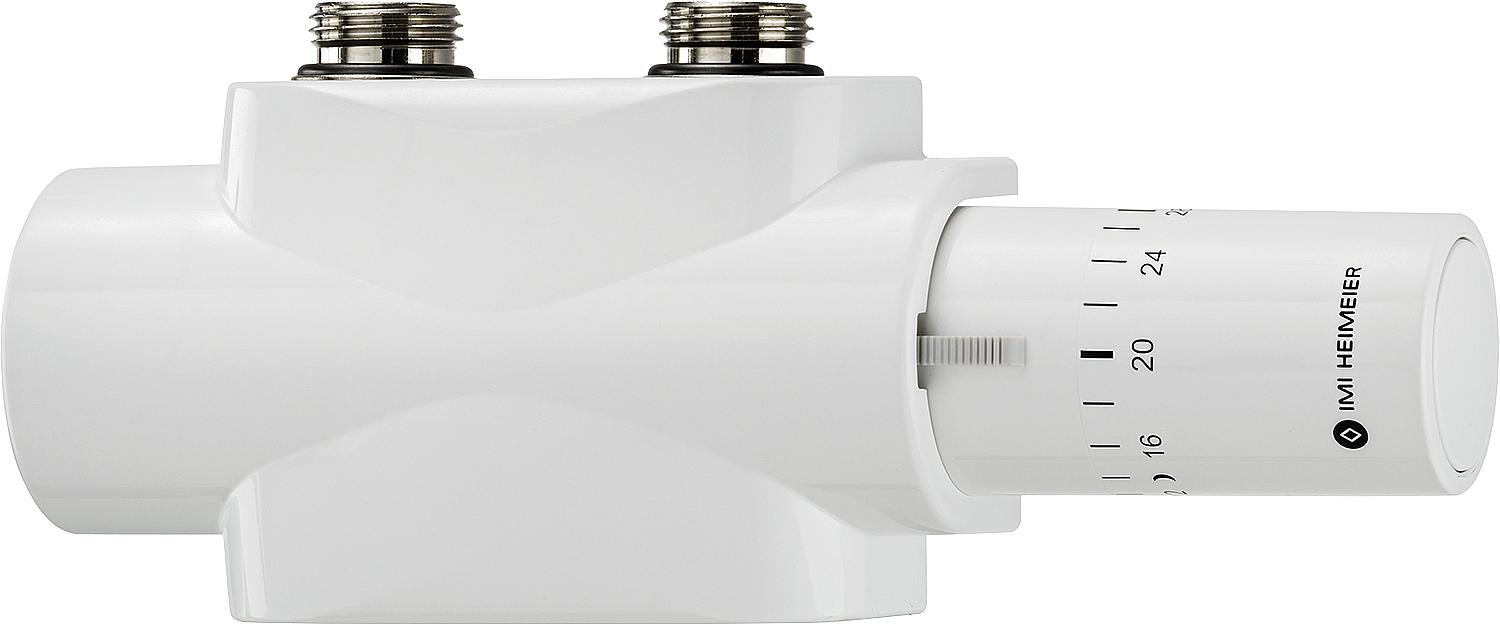

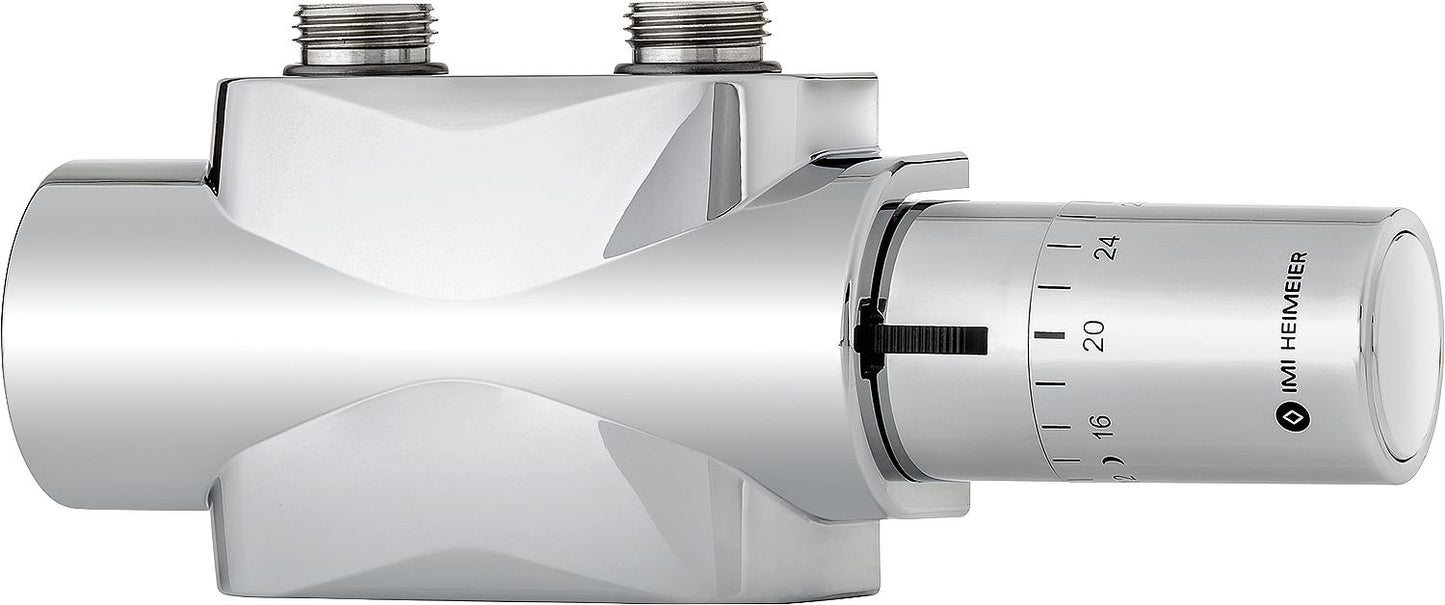

Multilux 4-Eclipse set
• Suitable for installation as a corner or through-passage
Set consisting of:
• Multilux 4-Eclipse thermostat valve body
• Radiator connections DN 15 (1/2")
• Radiator connections DN 20 (3/4"), for Eurocone male thread
• End caps for DN 20 (3/4") pipe connection
• Cladding
• Thermostat head Halo
| Brand | HEIMEIER |
|---|---|
| Unit price | CHF/piece |
| Color | white RAL 9016 |
