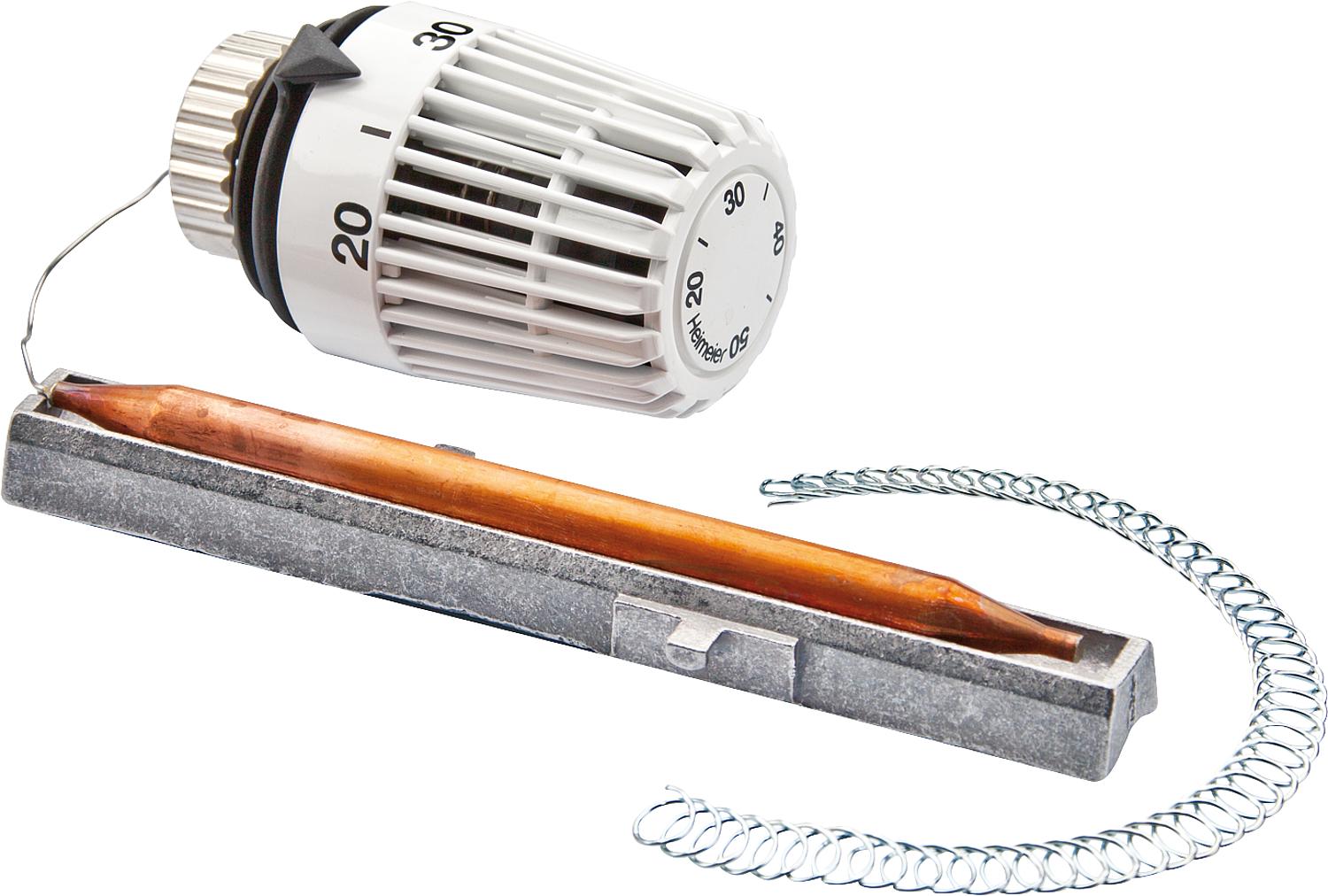

Heimeier thermostat head K as surface and immersion sensor with mounting material

• Liquid-filled sensor with 2 m capillary tube
• For all Heimeier thermostatic valve bodies and three-way valves
• Hidden upper and lower limits of the temperature range

or blocking of a setting by stop clips

• With heat-conducting base and coil spring
• The sensor can be used in conjunction with a heat-conducting base as a surface-mounted sensor or with a thermowell as an immersion sensor.
• Setpoint range: 20°C ... 50°C
• Maximum sensor temperature: 60°C
• Setting scale with temperature values: 20304050
• Ref. No.: 640200.500

• Capillary tube length: 2 m
