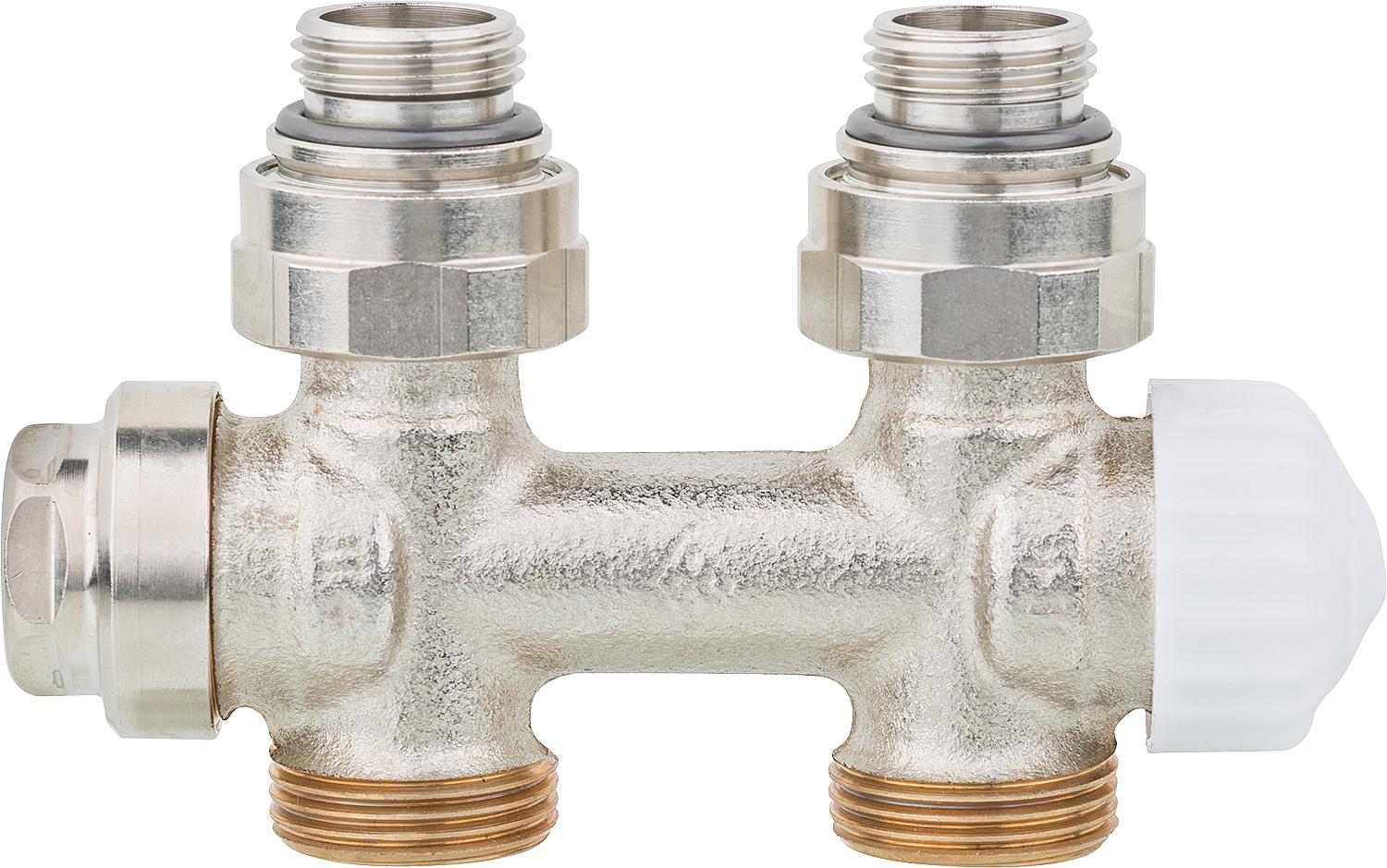

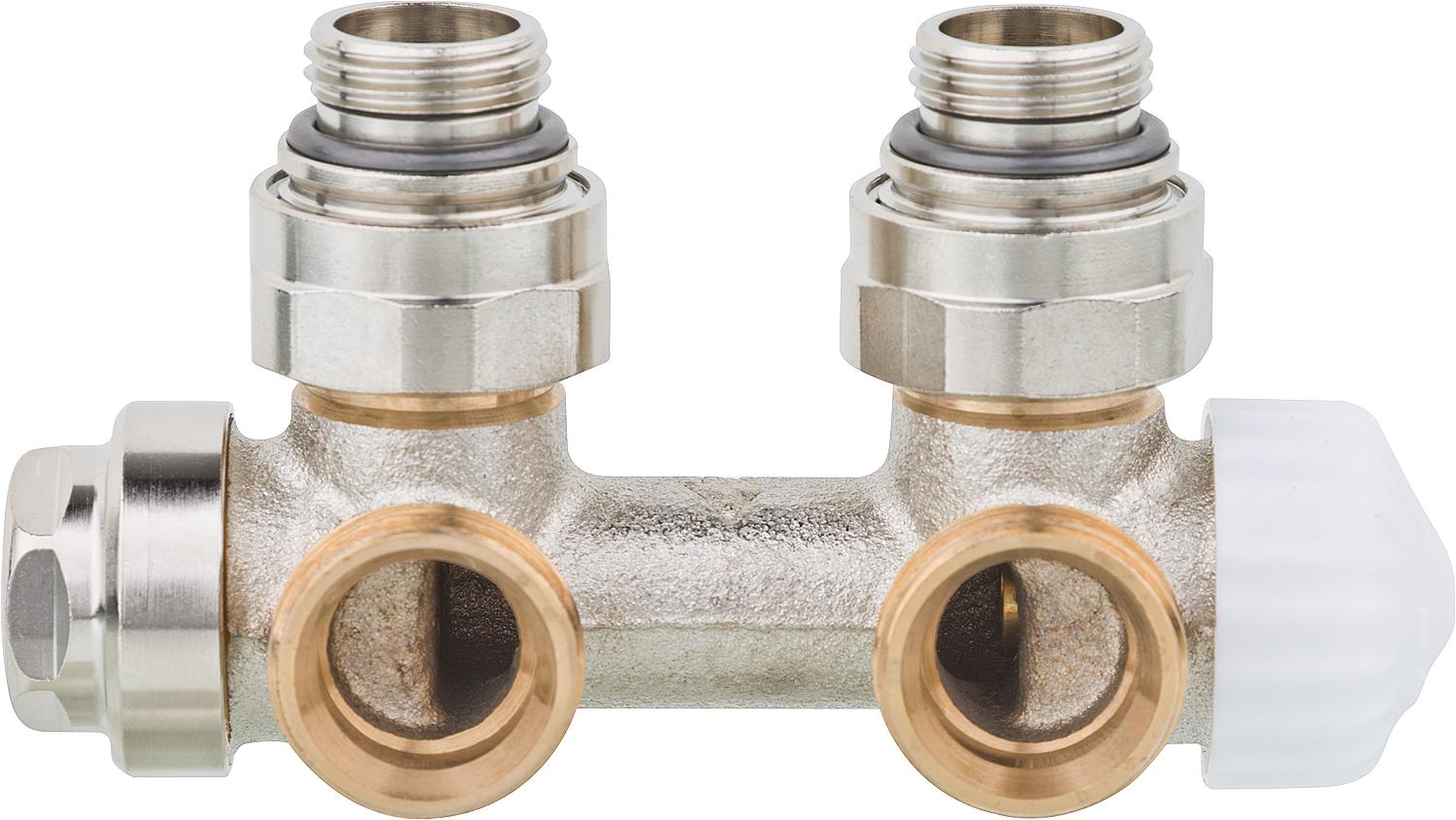

Heimeier Multilux Th valve for radiators with central connection, two-pipe system, straight-through design

Bewertungen
Regular price CHF 44.40
Regular price Sale price CHF 44.40
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
IMI HEIMEIER
sofort lieferbar
View full details
  • Thermostatic valve body for radiators
  • Center-to-center distance of the connections: 50 mm
  • Housing made of corrosion-resistant, dezincification-free red brass, nickel-plated
  • With stainless steel spindle and double O-ring seal
  • Outer O-ring replaceable without draining the system
  • Flow and return can be shut off
  • Connection for emptying and filling device
  • Forward and reverse directions can be selected as desired.
  • Eurocone connection DN 20 (3/4"), in conjunction with compression fittings for plastic, copper, precision steel or composite pipe
  • Permissible operating temperature: 120°C
  • With casing: 90°C
  • Permissible operating pressure: 10 bar

  • With separate regulating cone for reproducible presetting
  • white construction protective cap
  • DN 15 (1/2") IG
Brand IMI HEIMEIER
Manufacturer part number 3850-02.000
Design Through-passage
Unit price CHF/piece
Ref. No. 3850-02.000
Type Twin-pipe system through-pipe
EAN 4024052456550
