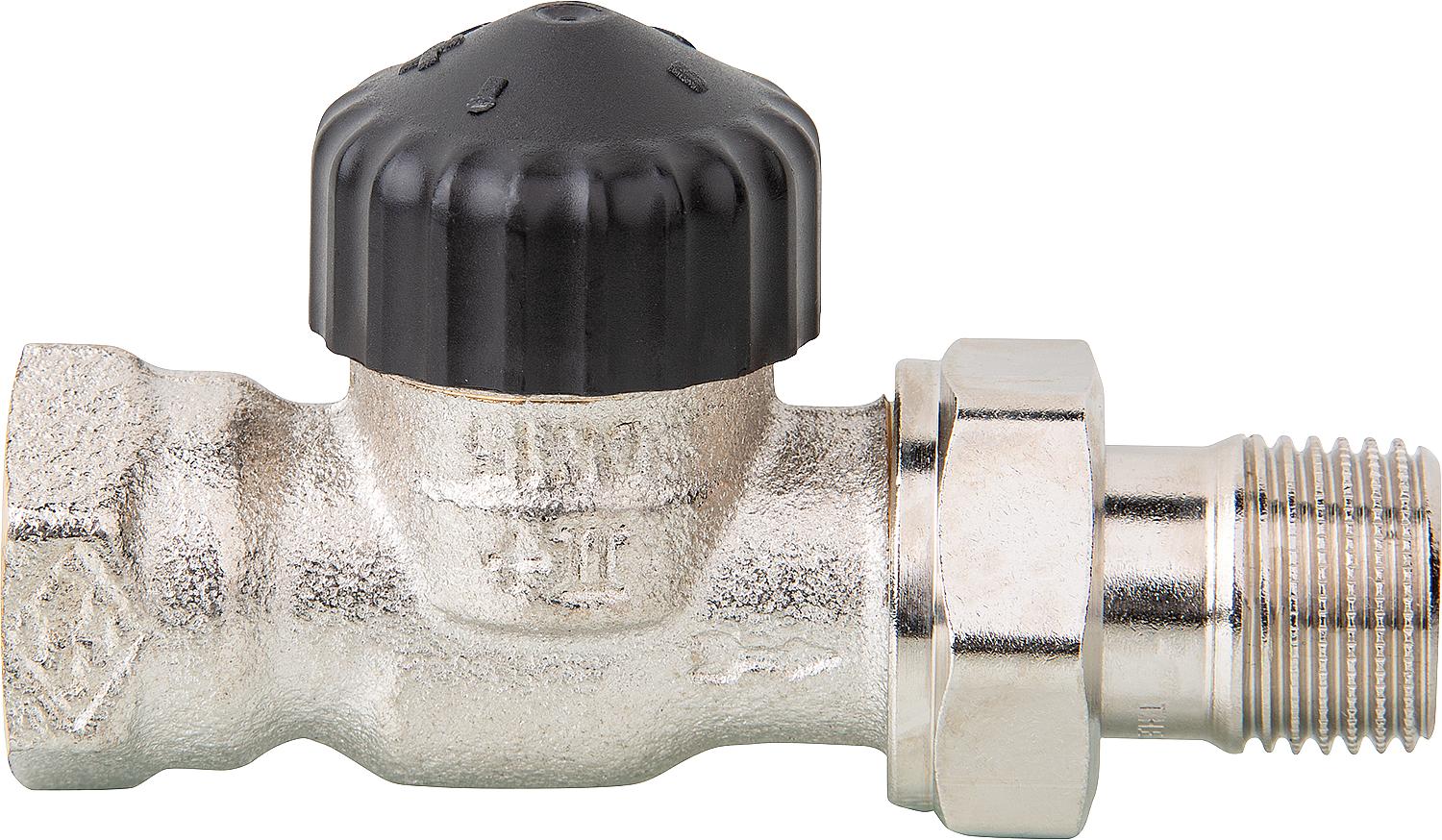

Heimeier thermostatic valve, red brass, nickel-plated, R 3/8" bore

Transitional form, IG

• Housing made of corrosion-resistant, dezincification-free red brass, nickel-plated
• With stainless steel spindle and double O-ring seal
• Thermostat top and outer O-ring replaceable without draining the system
• black construction protective cap
• Operating temperature: max. 120°C
• Operating temperature with casing: 90°C
• Operating pressure: max. 10 bar
• Low-pressure steam: 110°C / 0.5 bar
• CEN certified
• Tested according to DIN EN 215

• nickel-plated
• Internal thread connection for threaded pipe

or connection with compression fitting

• for copper, precision steel or composite pipe

(DN 15 only).

• Permissible operating temperature: 120°C
