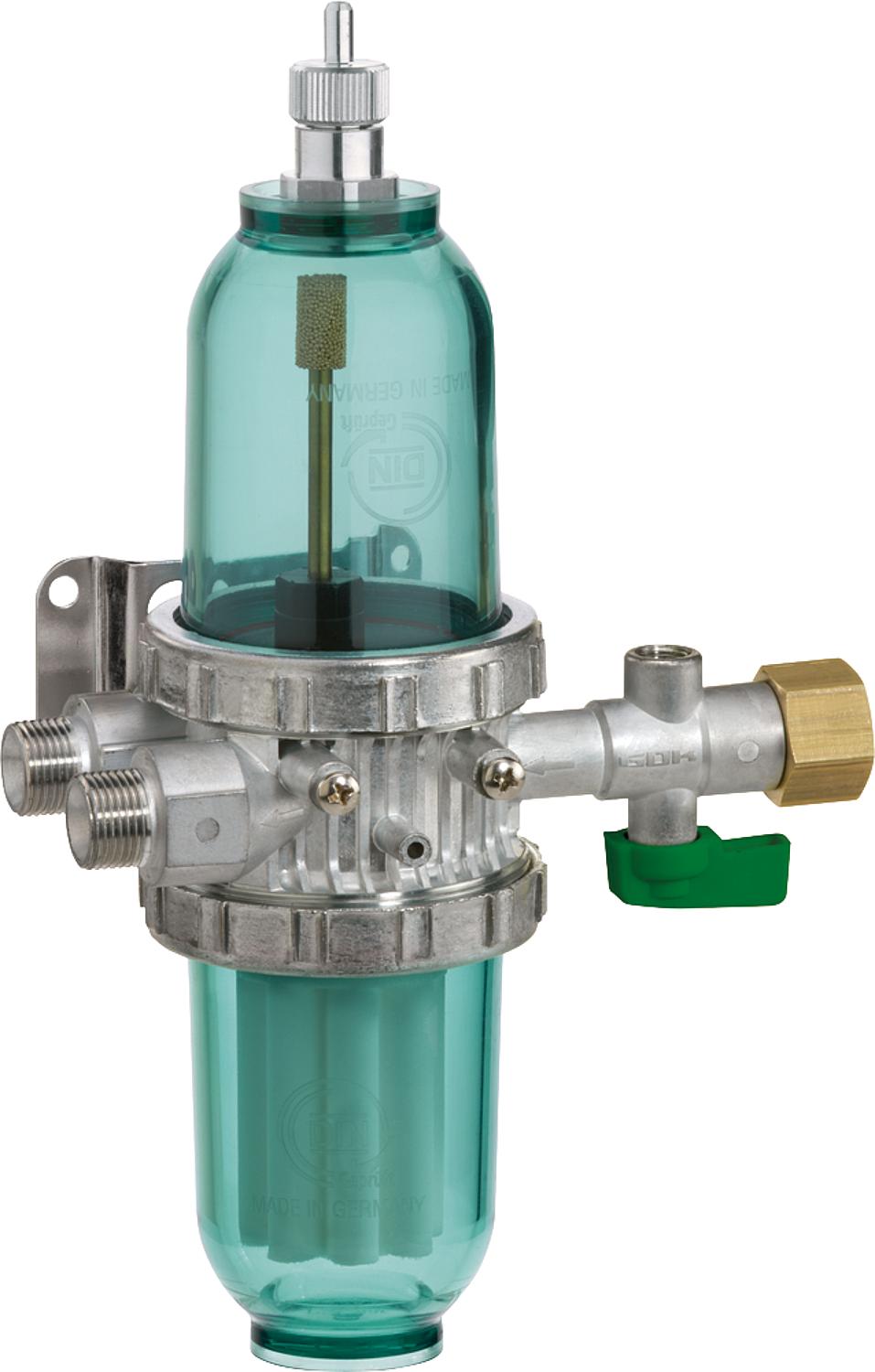

Heating oil filter and deaerator combination GS Pro-Fi 3 IG G3/8xAG G3/5 KN sintered plastic 35µm

• Professional filter/venting system in a compact design:
• Guaranteed odor-proof, no additional accessories required.
• No leakage of oil or oil foam
• Suitable for biogenic fuels according to DIN V 516036 EL A Bio with a maximum of 30 vol.% FAME (RME)
• Quick setup

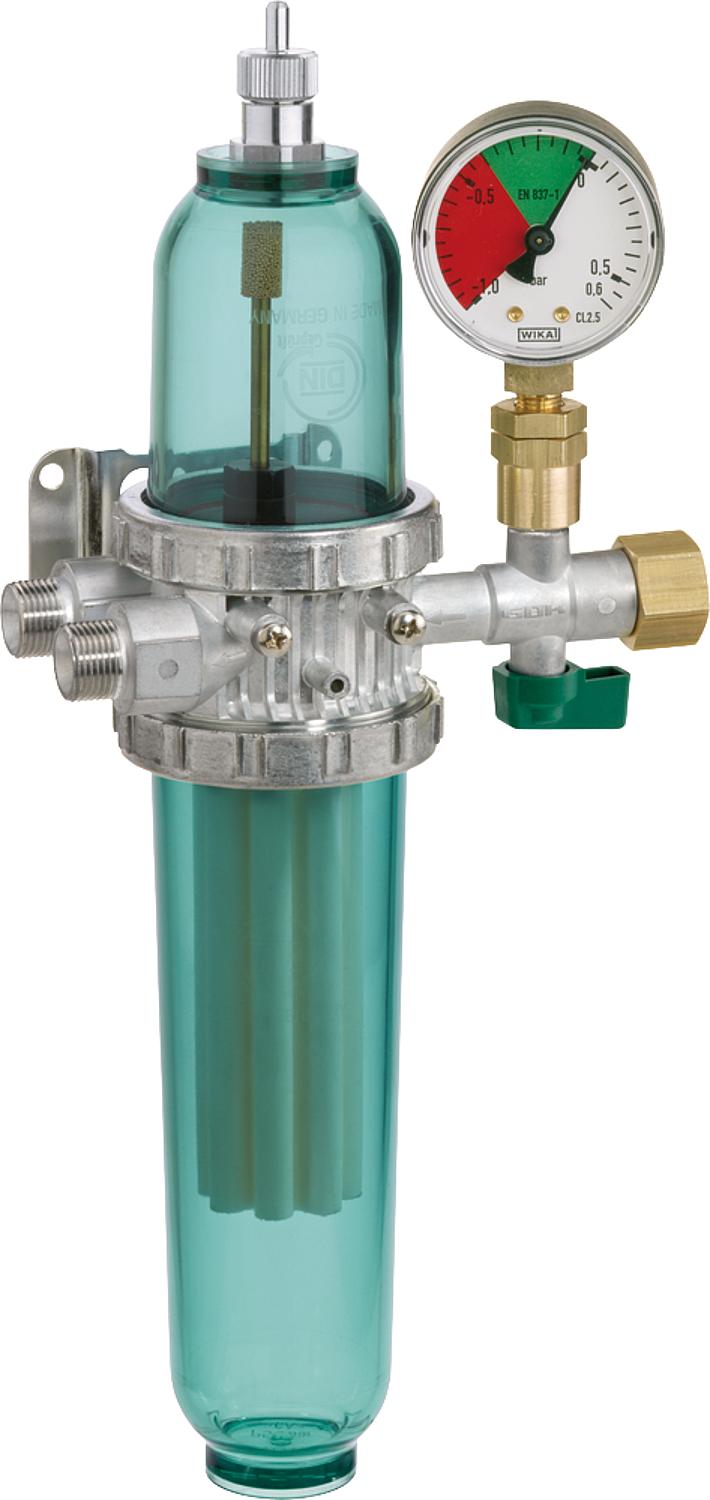

• Optionally available with a vacuum gauge (1.0 to 0.6 bar) for monitoring the vacuum in the suction line and thus the operating conditions.

• Nominal flow rates:

Burner circuit: max. 110 l/h

Tank inlet: max 80 l/h

• Housing material: Zinc die-cast ZP0410
• Installation in oil-fired heating systems in a single-pipe system with return flow
• Female DN10 (G3/8”) x Male DN10 (G3/8”) KN
• Sintered plastic filter 35 µm
