DC30GSE wood gasification boiler system

Set consisting of:

1 x Atmos DC 30 GSE wood gasification boiler (90 620 86)

• Power output 29.8 kW

1 x Thermal relief valve (90 029 01)

1 x boiler safety group with safety valve (90 018 02)

• 3 bar
• Automatic air vent and pressure gauge

1 x buffer storage tank (97 029 74)

• PF 1000 l
• Without heat exchanger

1 x combination storage tank (97 029 94)

• PCS 1000 / 200 l
• With heat exchanger for later solar connection

• 1 x Ladomat 21100 return temperature increase (90 858 06)

1 x flue pipe bend, ø 150 mm (33 013 29)

• Adjustable from 0° to 90°

1 x Easyflow heating circuit set (90 032 11)

• With Wilo Para 25/6 SC circulation pump, three-way mixer and actuator

1 x Weather-compensated heating circuit control Ceta 106

for circulation pump and mixer motor (61 011 13)

1 x Spirotrap DN 32 (1 1/4") sludge separator (90 034 44)

1 x train regulator (33 003 31)

• For mounting on a 150 mm flue pipe

1 x Backflow preventer DN 15 (1/2") (90 605 70)

• In the supply line of thermal valve safety devices

1 x Thermostatic mixer (90 046 34)

• To protect the hot water against overheating, check valves and dirt traps are used.

2 x Floor-standing expansion vessel (90 020 10)

• 150 l
• Connection DN 25 (1")

2 x cap valve DN 25 (1") (90 020 21)

2 x safety valve 6 bar, DN 15 (1/2") (90 017 01)

4 x Heimeier Globo ball valve DN 32 (1 1/4") IT (90 514 42)

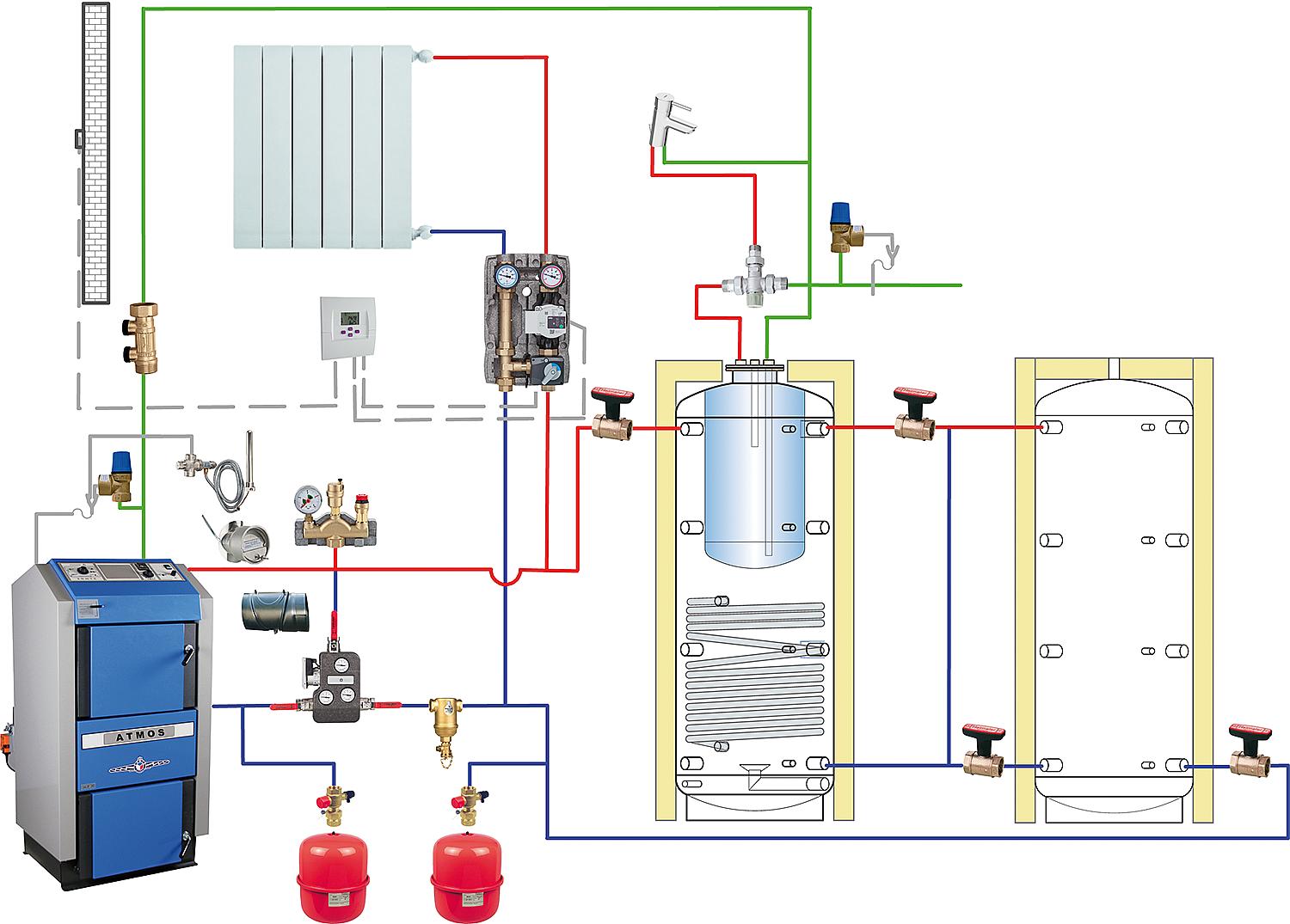

This drawing serves for illustrative purposes and does not replace detailed technical planning.
