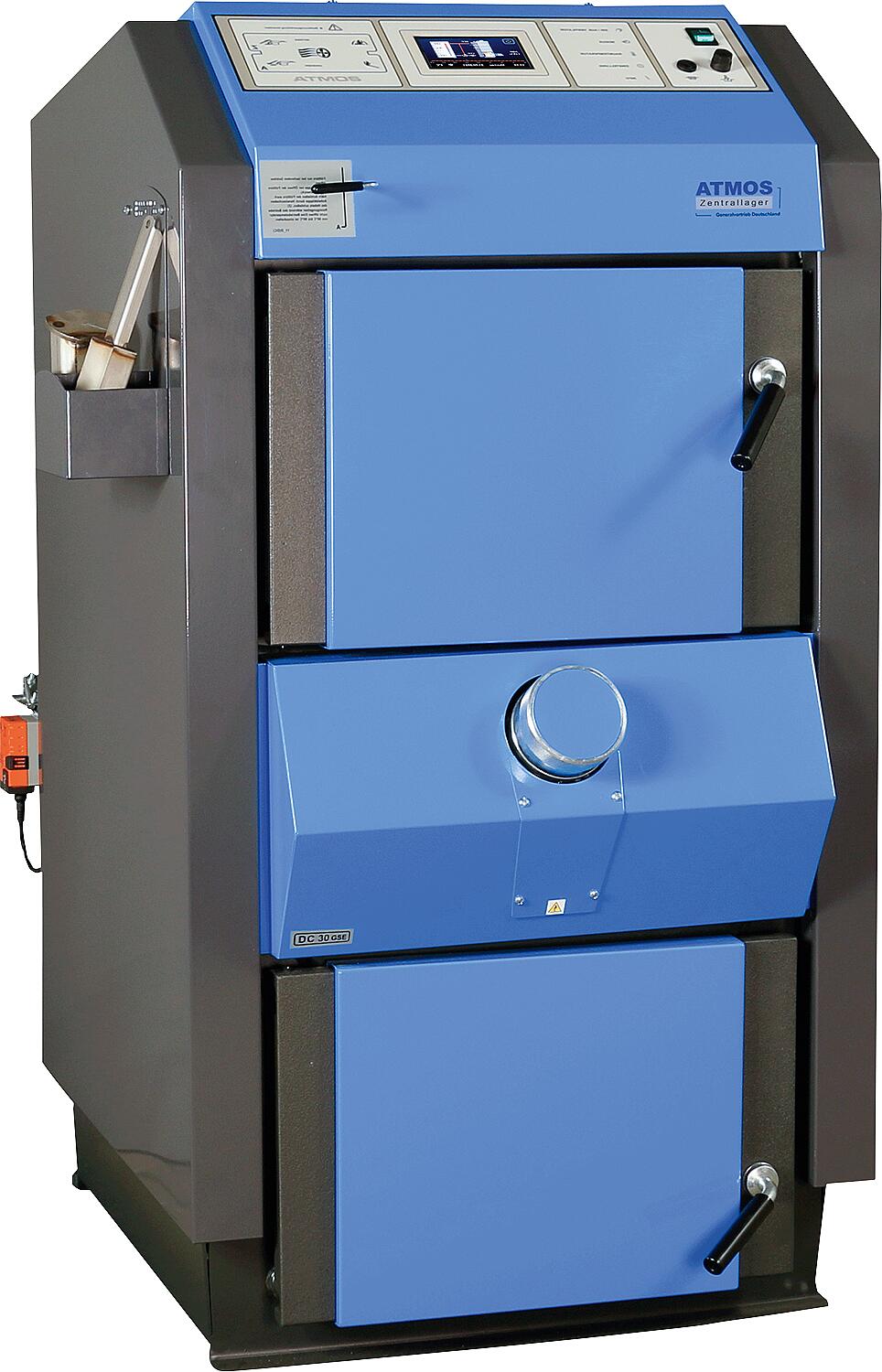

Holzvergaserkessel Atmos DC22GSE mit Anzündautomatik und Compact Baugruppe F8

• With automatic ignition • Compact F8 assembly • With Compact assembly F8 consisting of mixed pump groups for return temperature boosting and heating circuit integration as well as a boiler safety group • With ACD04 touch control for boiler and ignition control as well as the operation of up to 3 mixed heating circuits • Long-lasting thanks to a combustion chamber made of patented protective ceramic • High efficiency through efficient flue gas extraction • Induced draft fan with pyrolysis gas extraction • Separate adjustment of primary and secondary air • Limiting the maximum exhaust gas temperature via a Belimo actuator • Large loading door 450 x 260 mm

type	DC GSE	22
Energy efficiency class for space heating	A+++ to D	A+
Rated load	[kW]	23
Required chimney draft	[Pa]	18
efficiency	[%]	91.8
Maximum firewood length.	[mm]	380
Minimum return temperature	[°C]	65
Exhaust pipe connection	[mm]	150
Dimensions (W x H x D)	[mm]	680 x 1281 x 820
Weight	[kg]	373

Brand	Atmos
Manufacturer part number	01.04.22-F8
Unit price	CHF/piece
Type	DC 22 GSE
