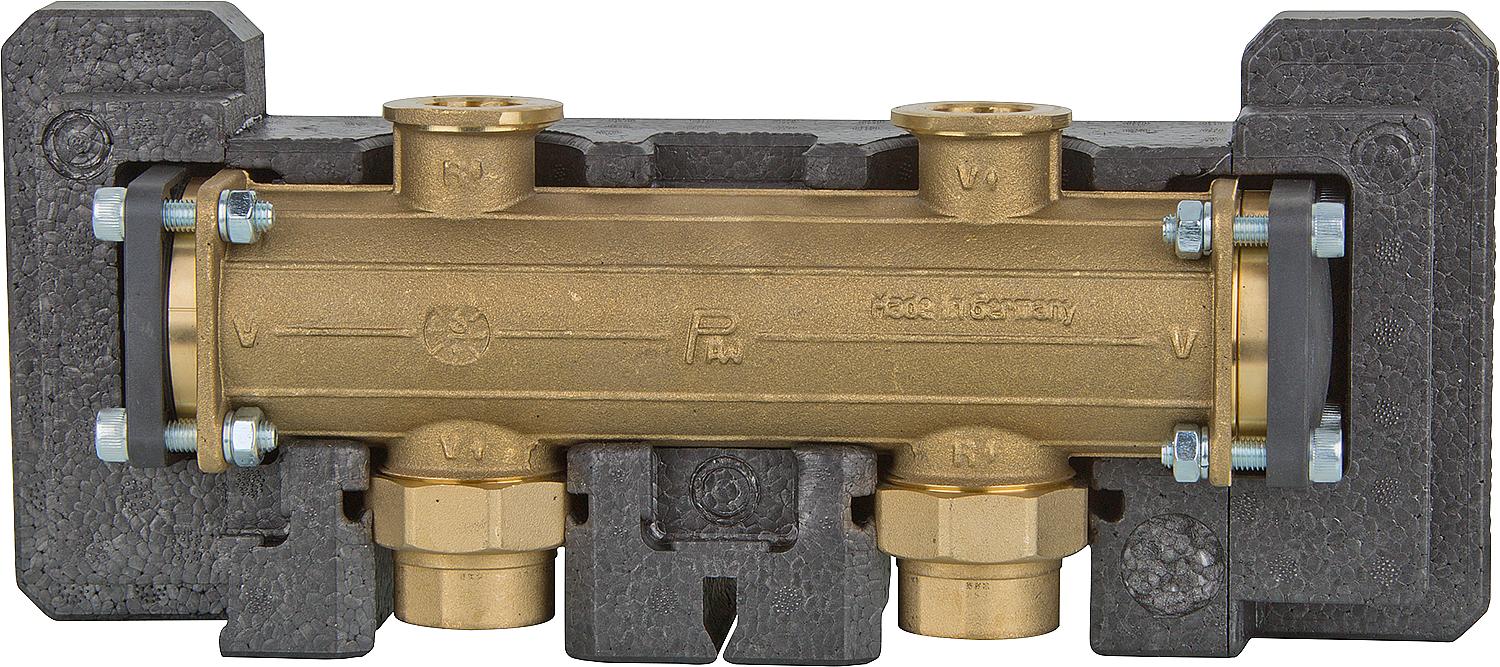

Hydraulic separator DN25 (1") up to 1600 l/h

• Brass
• including EPIP insulation

• up to 1600 l/h
• with guided forward and reverse flow
• for installation under a single heating circuit DN25 (1")
• It can also be installed under a DN25 (1") manifold when using the mounting plate (part no.: 90 002 47), or separately. For separate ("in-pipe") installation, two additional screw sets (part no.: 90 010 01) for the DN25 (1") flanges are required.
• Insulation according to EnEV: EPPH half-shells
• Dimensions including insulation (W x H): 330 x 128 mm
• Axle dimension: 125 mm

Connections:

• Consumer side (above):

DN25 (1") flange for DN40 (1½") nut

• Boiler side (bottom):

DN40 (1½") male thread or DN25 (1") female thread (with screw connection) flat sealing,

• Lateral: 2x DN20 (¾") female thread, sealed with plugs
