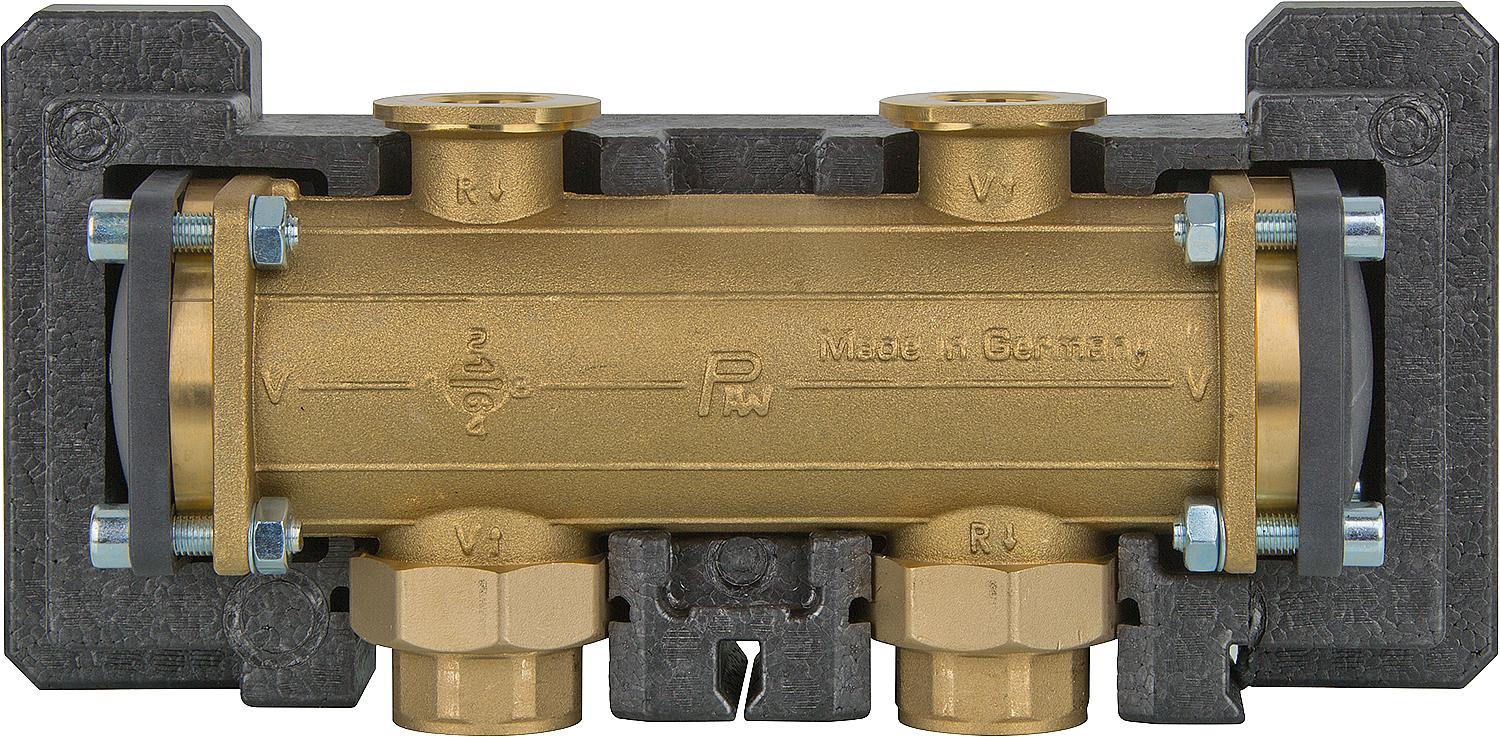

Hydraulic separator DN32 (1 1/4") up to 2600 l/h, bridged with insulation

Name: Hydraulic separator DN32 (1 1/4") up to 2600 l/h, bridged with insulation
Brand: PAW
SKU: 90 017 24
Price: 386.60 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 386.60

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

PAW

90 017 24

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

suitable for modular system DN 32 (1 1/4")

Brass
including EPIP insulation

up to 2,600 l/h

with guided forward and reverse flow
For installation under a single heating circuit DN32 (1 1/4").
It can also be mounted under a DN32 (1 1/4") manifold or separately (in the pipe). For separate ("in-pipe") mounting, two additional screw sets for the DN32 (1 1/4") PAW flanges are required.
Insulation according to EnEV: EPPH half-shells
Dimensions including insulation (W x H): 330 x 125 mm
Axle dimension: 125 mm

Connections:

Consumer side (top): DN32 (1 1/4") flange for DN50 (2") nut
Boiler side (bottom): DN50 (2") male thread or DN32 (1¼") female thread (with screw connection) flat sealing
Lateral: 2x DN20 (¾") female thread, sealed with plugs
