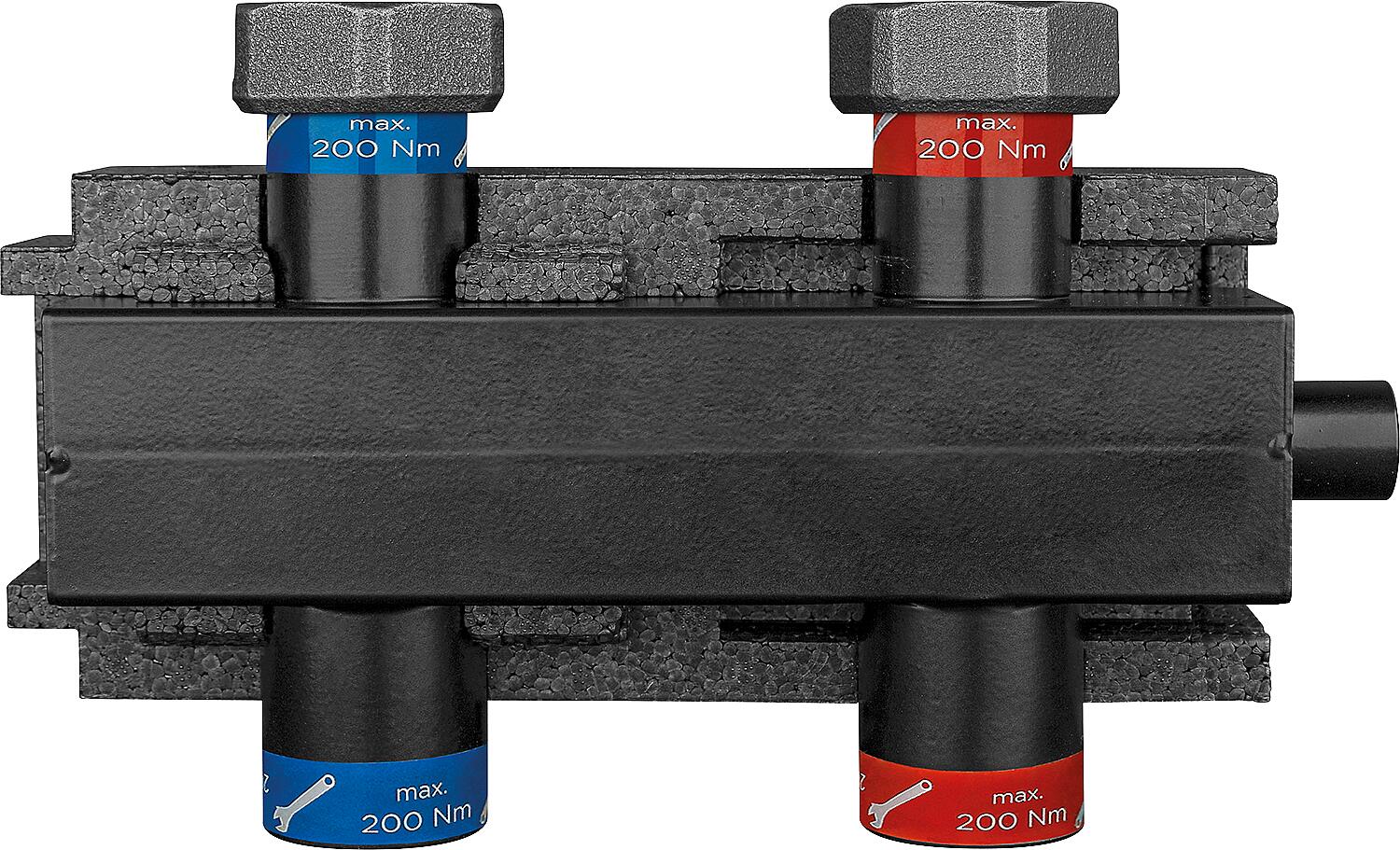

Hydraulic separator Evenes W3 M DN32(1 1/4") IG, 3m³h, 70kW, incl. insulation

• Ideally suited to the boiler distributors evenes VT3 DN 25 (1")
• Also usable with external distributors with a center-to-center distance of 125 mm
• Connection for sensor
• Including insulation

Technical data:

• Material: Steel
• Insulation material: EPP
• Insulation thickness: 25 mm
• Maximum operating pressure: 6 bar
• Maximum operating temperature: 110 °C
• Maximum throughput: 3 m³/h
• Maximum power: 70 kW
• Heating circuit connection: DN 40 (1 1/2") ÜWM
• Boiler circuit connection: DN 32 (1 1/4") internal thread
• Sensor connection: DN 15 (1/2")

• Center-to-center distance of heating circuit: 125 mm
• Center distance of boiler circle: 125 mm
• Dimensions (L x D): 300 x 110 mm
