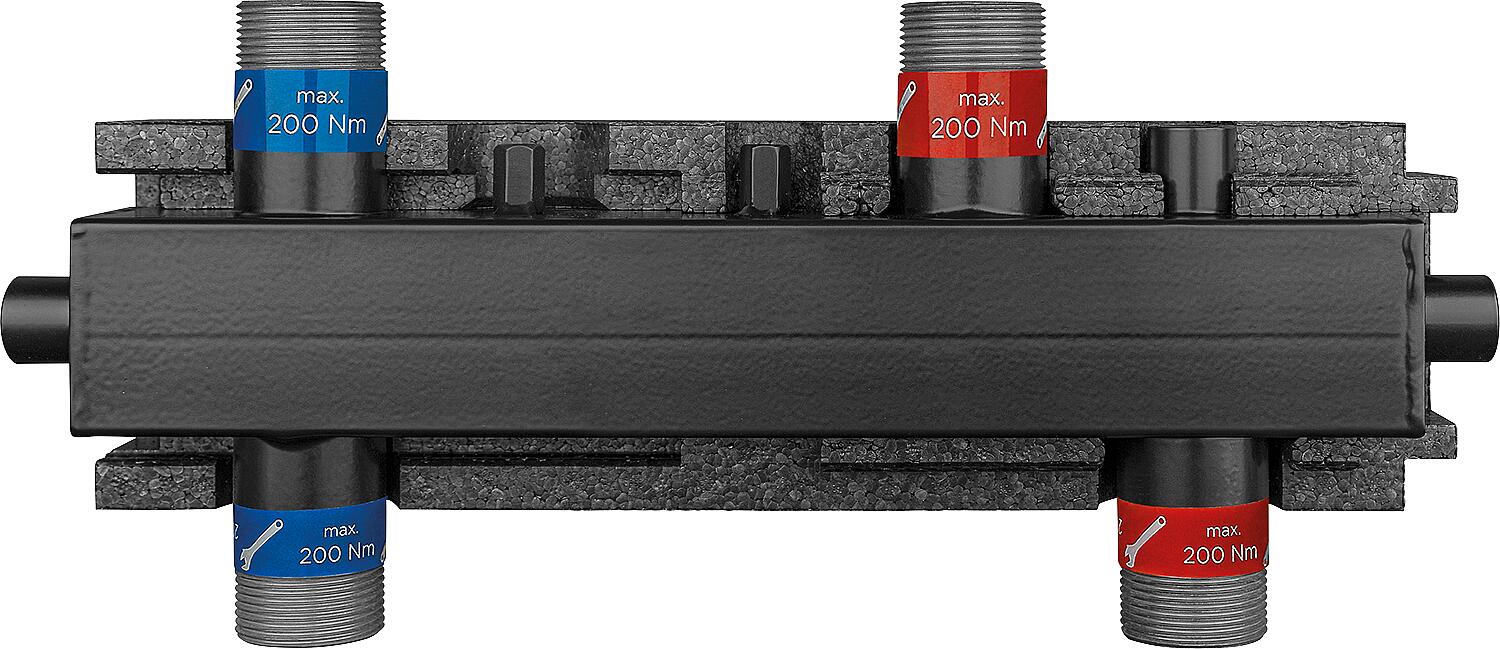

Hydraulic separator Evenes W3 P DN 32(1 1/4") AG, 3m³/h, 70kW, incl. bracket and insulation

Name: Hydraulic separator Evenes W3 P DN 32(1 1/4") AG, 3m³/h, 70kW, incl. bracket and insulation
Brand: evenes
SKU: 90 097 41
Price: 100.30 CHF
Availability: InStock

Bewertungen

| Eine Rezension schreiben

CHF 100.30

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

evenes

90 097 41

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

Connections for sensors and drainage
Including insulation and wall mounting.

Technical data:

Material: Steel
Insulation material: EPP
Insulation thickness: 25 mm
Maximum operating pressure: 6 bar
Maximum operating temperature: 110 °C
Sensor/drain connection: DN 15 (1/2")

Maximum throughput: 3 m³/h
Maximum power: 70 kW
Heating circuit connections: DN 32 (1 1/4") male thread
Center-to-center distance of heating circuit: 250 mm
Center distance of boiler circle: 187.5 mm
Wall clearance: 100 mm
Dimensions (L x D): 420 x 110 mm

Brand	evenes
Unit price	CHF/piece
