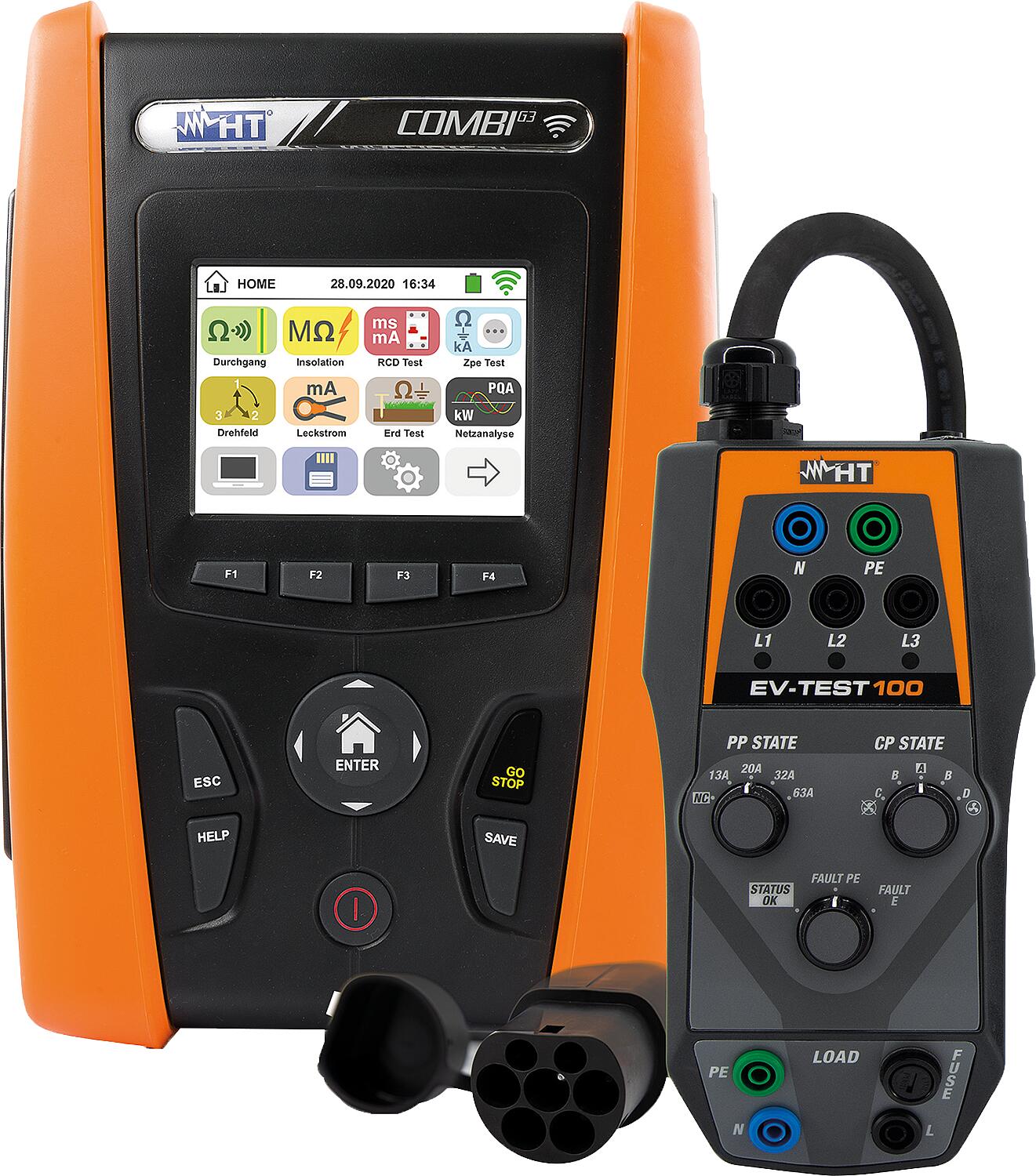

Installation tester G3 with charging station adapter EV-TEST 100 Full charge

Consisting of:

1 x Combi G3 electrical installation tester:

• For testing electrical installations
• In accordance with VDE 0100 & VDE 0105
• Touchscreen operation, all measurement functions at a glance
• Insulation measurement with 50, 100, 250, 500, 1000 V/DC test voltage
• Protective conductor continuity test with > 200 mA test current
• Determining the direction of rotation of a magnetic field with only 1 test probe
• Network/loop impedance, Zpp, Zpn, Zpe with Ik display and 0.01 Ω resolution
• Complete FI (RCD) test and analysis function type A, AC, B and EV
• RCD test with increasing test current (ramp test)
• Loop resistance measurement Ra without RCD tripping
• Voltage drop measurement
• Earth resistance measurement using 2- and 3-wire methods
• Earth resistance measurement using the 4-wire method
• Internal memory for 999 measurements
• Integrated optical interface via USB and Wi-Fi
• Dimensions (L x W x D): 235 x 165 x 75 mm
• Weight: 1250 g
• Scope of delivery:
• Batteries: 6 x AA, rechargeable
• External charger
• Stylus for touchscreen
• Topview Software
• Software including WiFi + cable
• 3-lead Schuko measurement line
• Calibration certificate ISO 9000
• Transport case
• 4 measuring leads
• 4 alligator clips
• 4 test probes in the colors green, blue, red and black

• 1 x EVTest100 test adapter:
• Simulation of charge states and for testing the effectiveness of protective measures
• 1 and 3 phase test adapter with type 2 plug (length: 600 mm)
• Phase indication via 3 LEDs for voltage monitoring
• Proximity Pilot (PP) rotary switch for simulating different current carrying capacities of charging cables
• Control Pilot (CP) rotary switch for simulating an electric vehicle
• Faulty rotary switch for simulating PE faults and short circuits between CP and PE
• Verification of the communication between simulated electric vehicle and charging station

1 x PR400 test probe:

• The START/STOP button allows the measurement to be carried out or stopped without having to operate the measuring device itself.
• Active in low-resistance measurement, insulation measurement, RCD testing, loop impedance measurement, and phase sequence measurement.
