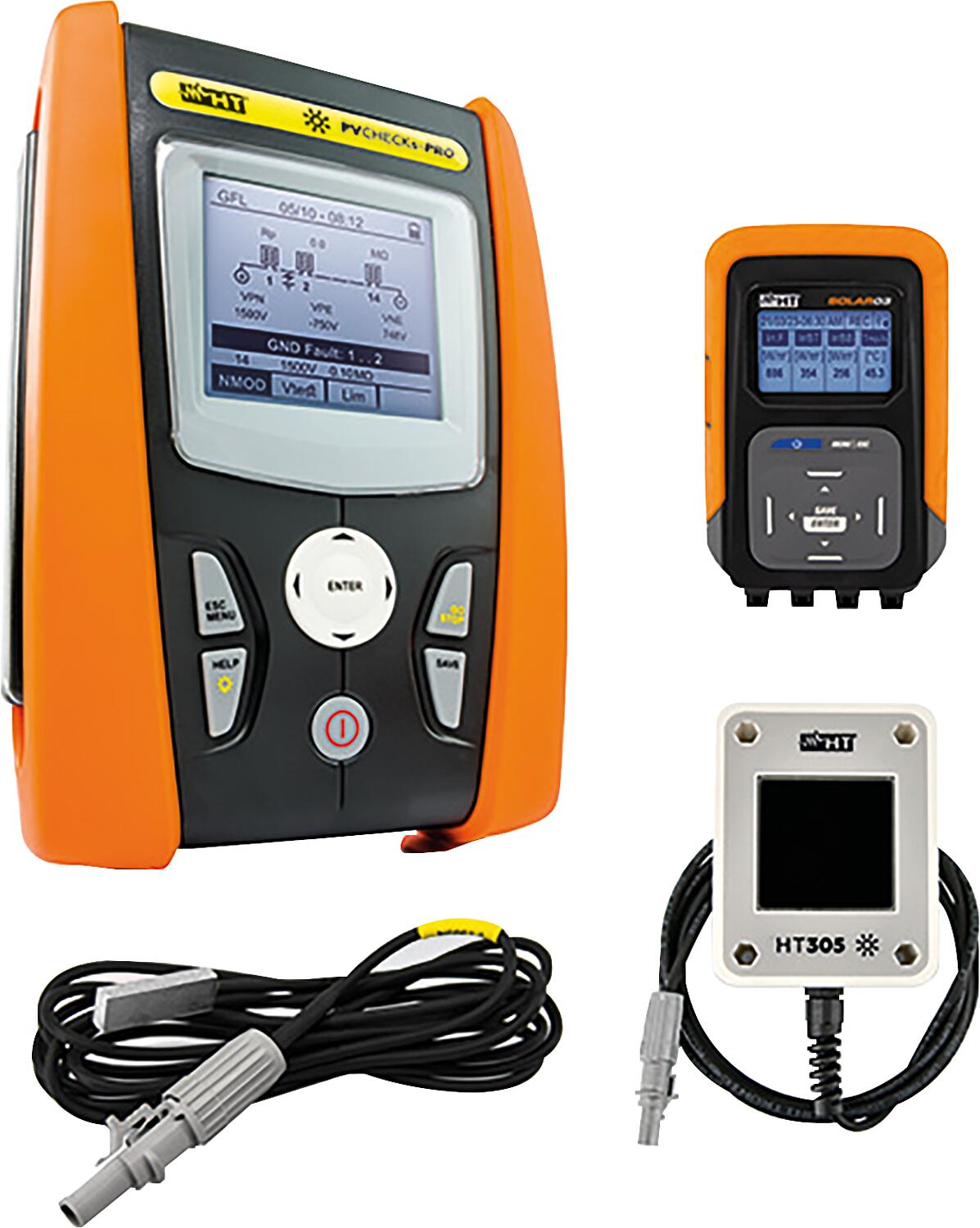

Photovoltaic installation tester PV-CHECKS ProPlus

Consisting of:

• Installation tester PVCHECKsPro
• For testing, fault finding and acceptance of PV systems according to VDE 012623 (EN 62446) up to 1500 V & 40 A DC
• A single keystroke for all commissioning tests
• Testing mono and bifacial modules
• Insulation measurement up to 1500 V DC
• Low resistance measurement with test current > 200 mA
• Open circuit voltage Uoc up to 1500 V DC
• Short-circuit current Isc up to 40 A DC
• Locating the insulation fault on a PV string
• Measurement of AC voltage components in the PV string
• Measurement of Polarization Index (PI)
• Result display OK / Not OK
• Memory for 999 measurements
• Interfaces: Wi-Fi + Optical/USB for PC
• Measurement category: VAT III 1000V AC, CAT III 1500V DC
• External data logger Sdolar03
• With radio module for measuring the irradiance, temperature & tilt of PV modules
• Measuring range: 0-1400 W/m²
• Basic accuracy: ± 1.0 % rdg
• DuoReferenceCell HT305
• To measure solar radiation
• Measuring range: 100 ÷ 1400 W/m²
• Basic accuracy: ±3.0% measured value

PT305 temperature sensor

• Probe for measuring PV module temperature
