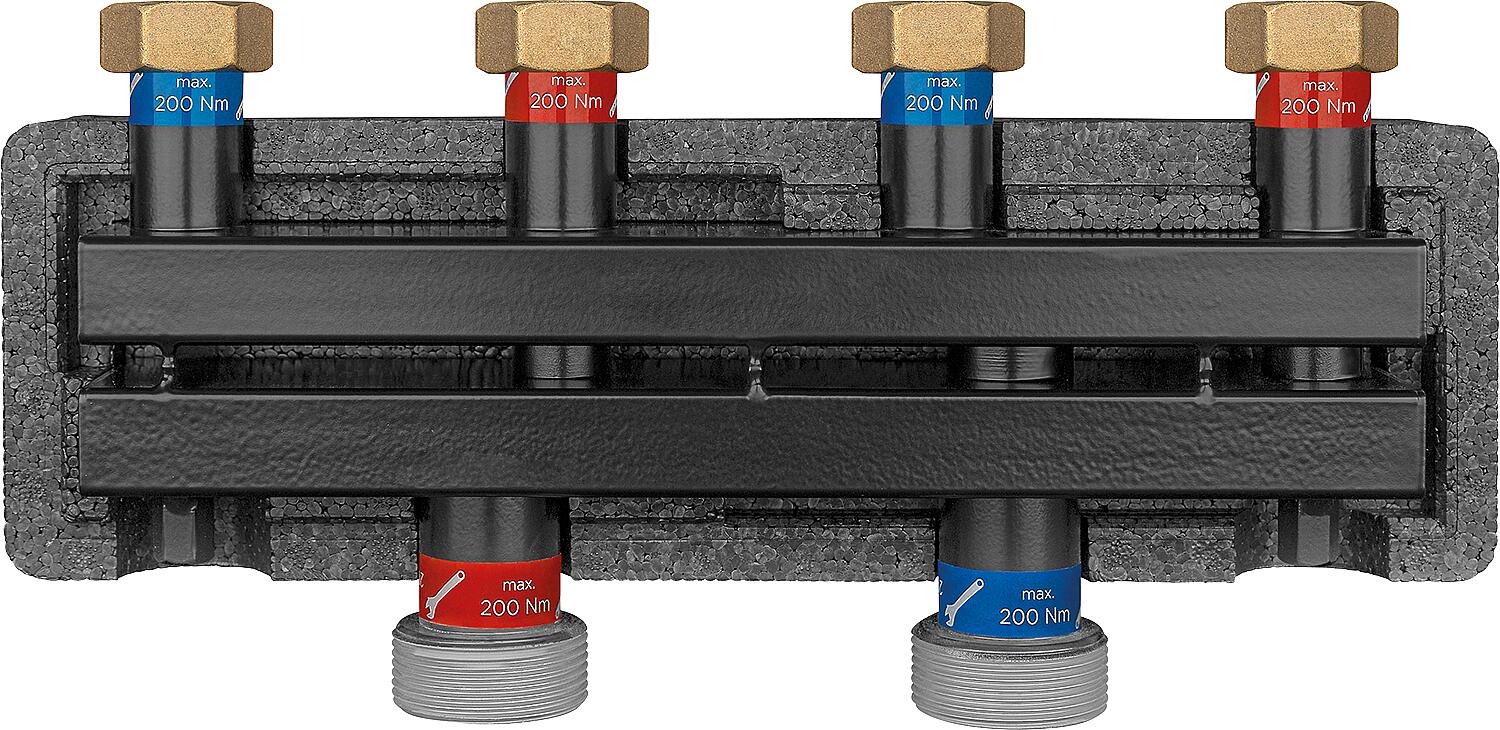

Evenes VT 2/2 ÜWM boiler manifold DN 20(3/4"), 2m³/h, 50kW, incl. bracket and insulation

Bewertungen

| Eine Rezension schreiben

CHF 106.60

% Sold out

Taxes included.

Quantity

Manufacturer:

Order No.:

Availability:

evenes

sofort lieferbar

Security policy

Delivery terms

Return policy

View full details

Beschreibung Spezifikation Bewertungen

Flow and return are thermally separated, making it ideal for use in condensing boiler systems.
Including insulation and wall mounting.

Technical data:

Material: Steel
Insulation material: EPP
Insulation material thickness: 25 mm
Maximum operating pressure: 6 bar
Maximum operating temperature: 110 °C
Maximum throughput: 2 m³/h
Maximum power: 50 kW
Axle spacing of outlets: 90 mm
Installation depth: 110 mm
Wall clearance: 110/150 mm

Boiler connection: 2 x DN 40 (1 1/2") AG
Heating circuit connection: DN 25 (1") union nut

Installation length [mm]	360
Brand	evenes
Unit price	CHF/piece
Heating circuits	2
