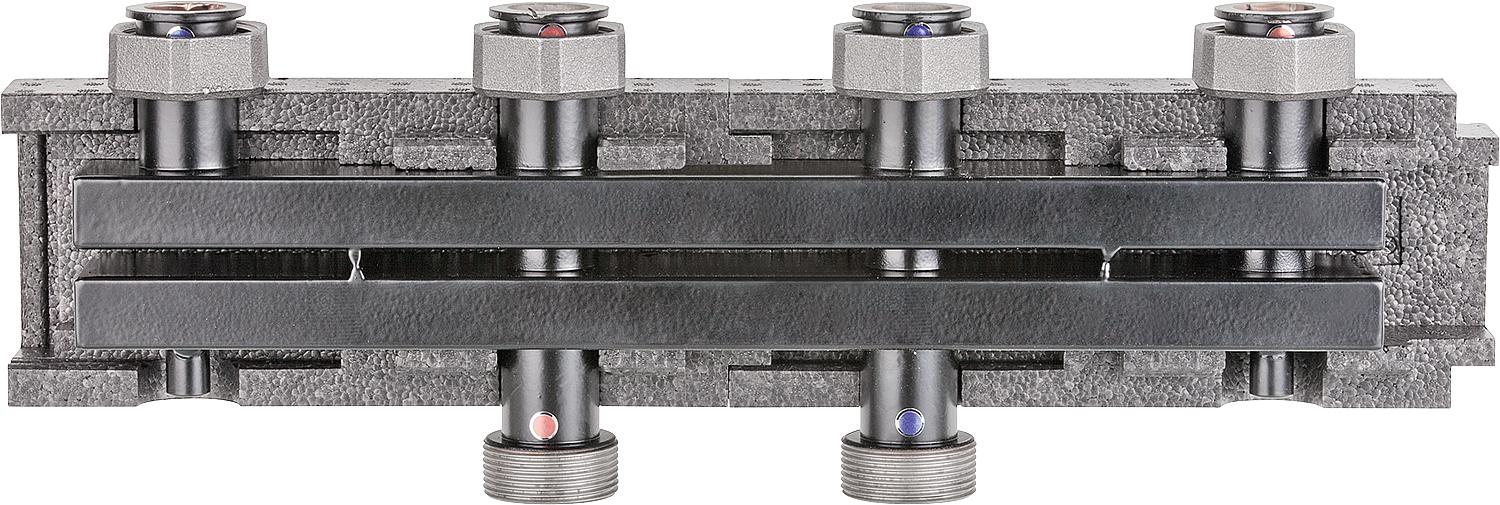

Boiler manifold EVENES VT3/2 ÜWM DN40(1 1/2") üWM, 3m³/h, 70KW incl. bracket + insulation

• Flow and return are thermally separated, making it ideal for use in condensing boiler systems.
• Compact design
• Heating circuit outlets lying next to each other
• Forward and return lines are color-coded.
• Pressure tested and primed
• Including insulation and wall mounting.

Technical data:

• Maximum operating pressure: 6 bar
• Maximum operating temperature: 110°C
• Distributor material: Steel
• Insulation material: EPP
• Installation depth: 110 mm

• Maximum throughput: 3 m³/h
• Maximum power: 70 kW
• Axle spacing: 125 mm
• Boiler connection: 2 x DN 40 (1 1/2") AG
• Wall clearance: 110/150 mm
• Insulation material thickness: 25 mm

Execution ÜWM

• Heating circuit connection: DN 40 (1 1/2") union nut
