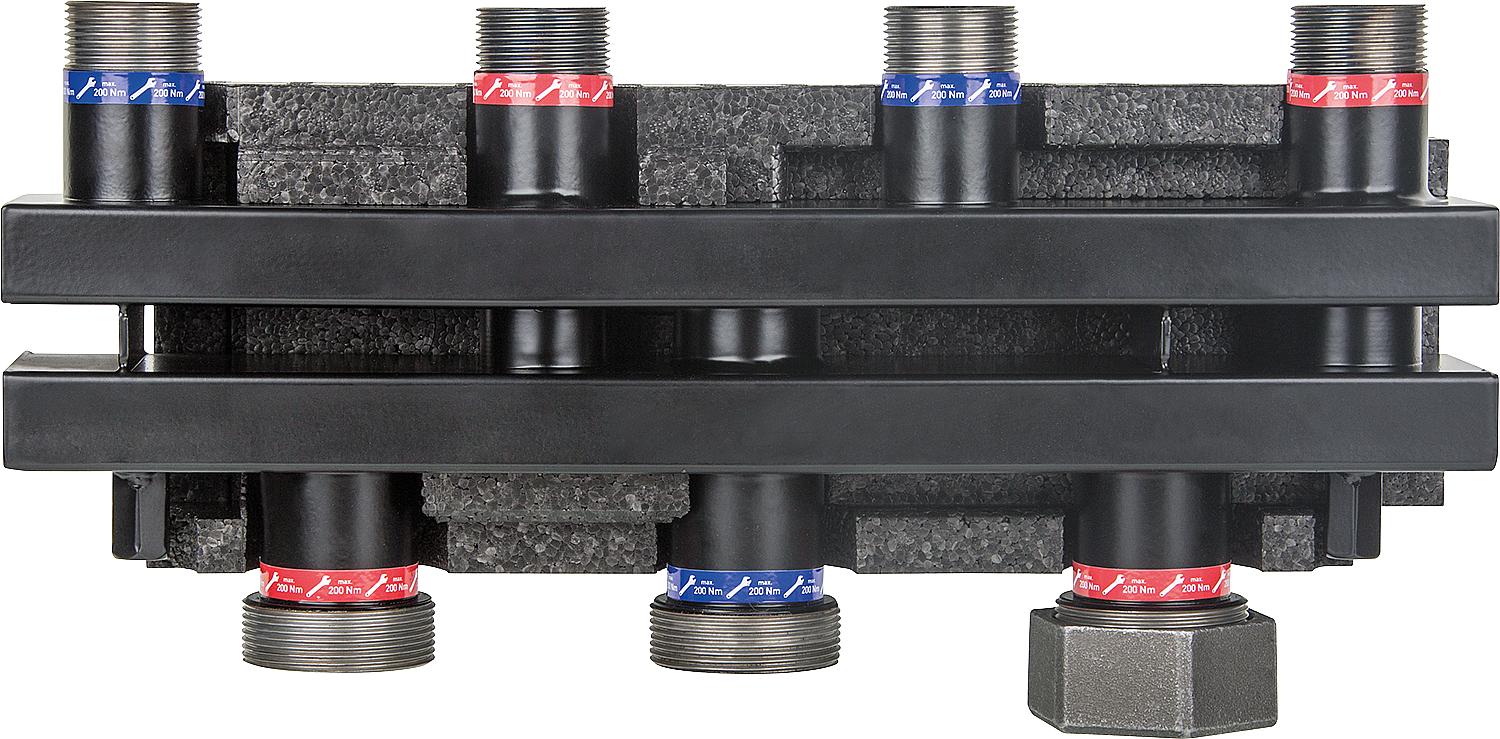

Boiler distributor EVENES VT7/2 AG DN32(1 1/4")AG, 7m³/h, 170KW incl. bracket + insulation

Boiler distributor EVENES VT7/2 AG DN32(1 1/4")AG, 7m³/h, 170KW incl. bracket + insulation

Bewertungen
CHF 181.65
CHF 181.65
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
evenes
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • Flow and return are thermally separated, making it ideal for use in condensing boiler systems.
  • Compact design
  • Heating circuit outlets lying next to each other
  • Forward and return lines are color-coded.
  • Pressure tested and primed

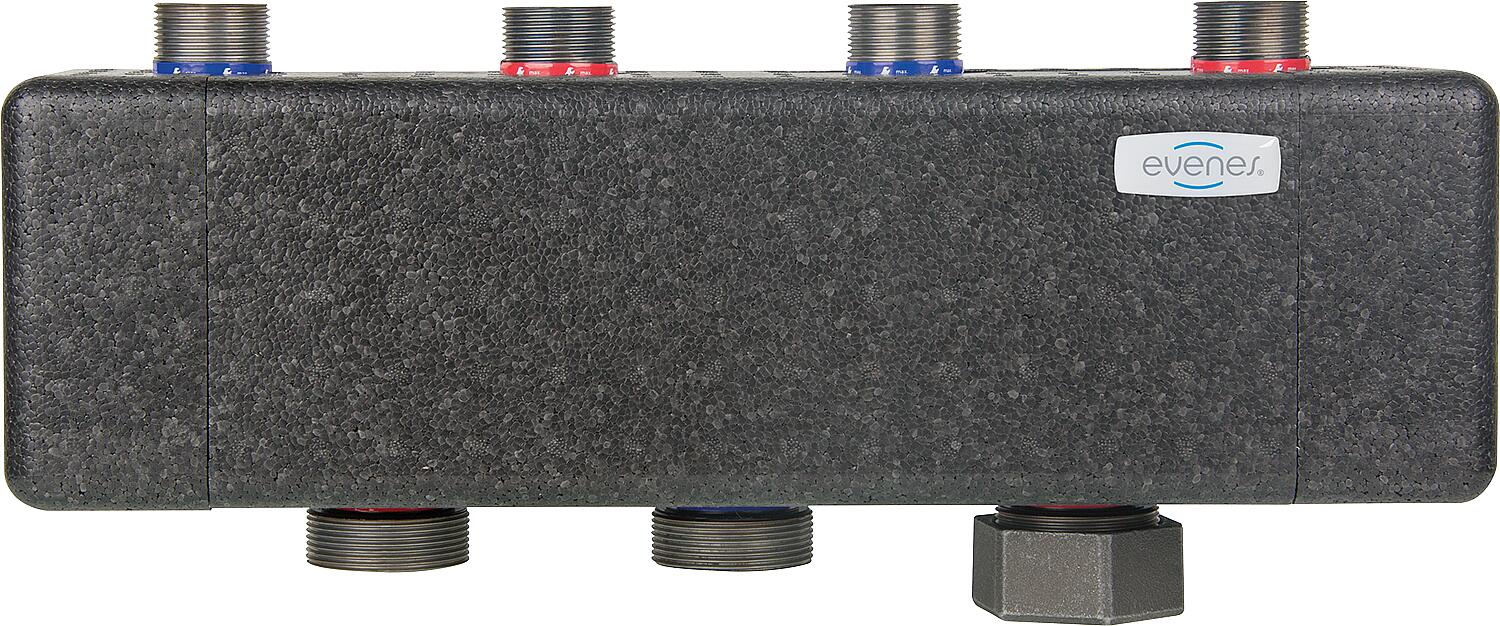

  • Including insulation and wall mounting.

Technical data:

  • Maximum operating pressure: 6 bar
  • Maximum operating temperature: 110°C
  • Distributor material: Steel
  • Insulation material: EPP
  • Installation depth: 110 mm

  • Maximum throughput: 7 m³/h
  • Maximum power: 170 kW
  • Wheelbase: 125mm
  • Heating circuit connection: DN 32 (1 1/4") male thread
  • Boiler connection: 3x DN 50 (2") AG
  • Wall clearance: 160/220 mm
  • Insulation thickness: 30 mm
  • Includes 1x cap DN 50 (2")
Installation length [mm] 550
Brand evenes
Unit price CHF/piece
Heating circuits 2
