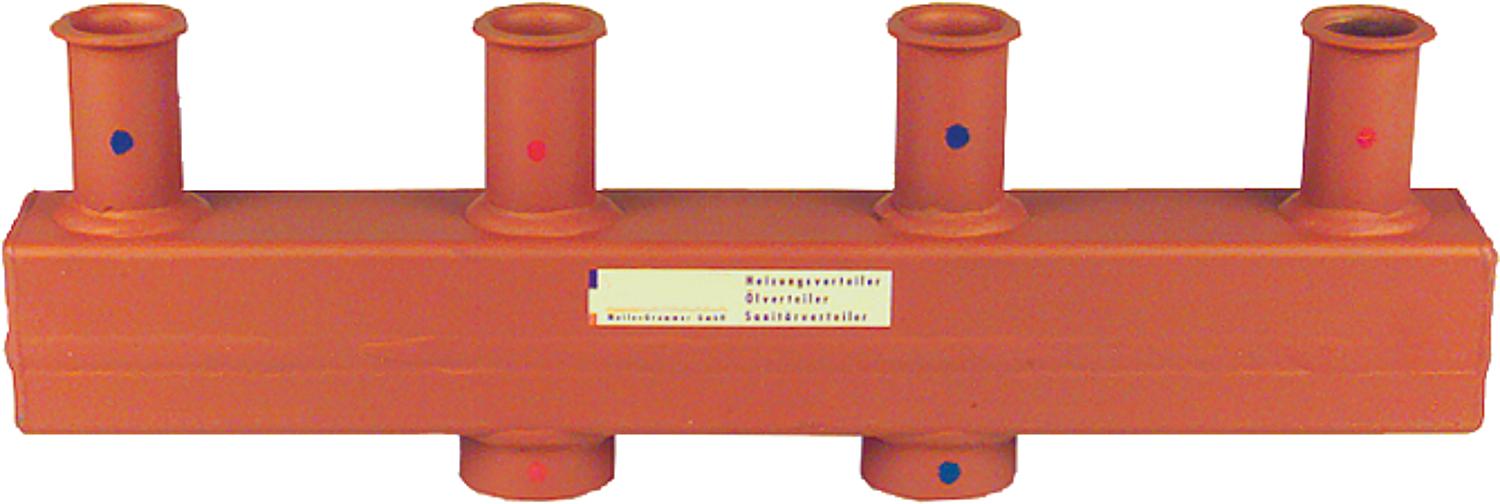

Boiler distributor oval flange type 60-12.5 oval flange, two heating groups

Boiler distributor oval flange type 60-12.5 oval flange, two heating groups

Bewertungen
CHF 137.50
CHF 137.50
% Sold out
Taxes included.
Manufacturer:
Order No.:
Availability:
MAGRA
sofort lieferbar

Security policy

Delivery terms

Return policy
View full details
Beschreibung Spezifikation Bewertungen
  • Group outlets: Oval flange fitting DN25 (1")

  • Spigot and socket spacing: 125 mm
  • Group departures upwards; forward and return flows side by side
  • Boiler connection: DN 32 (1 1/4") female threaded sockets, downwards
  • Distribution chambers arranged one above the other
  • Double chamber 60 x 60 mm
  • Welded from sheet steel
  • Heating water flow rate: up to 3 m³/h
  • Power output at ∆T 20°C: up to 70 kW
  • Operating temperature: max. 110°C
  • Operating pressure: max. 6 bar
  • Factory pressure tested and primed
  • For wall mounting or direct mounting on the boiler

  • High dimensional accuracy and stability thanks to patented C-profile!
Brand MAGRA
Number of heating groups 2
Manufacturer part number 11100601252
Unit price CHF/piece
EAN 4024497002718
