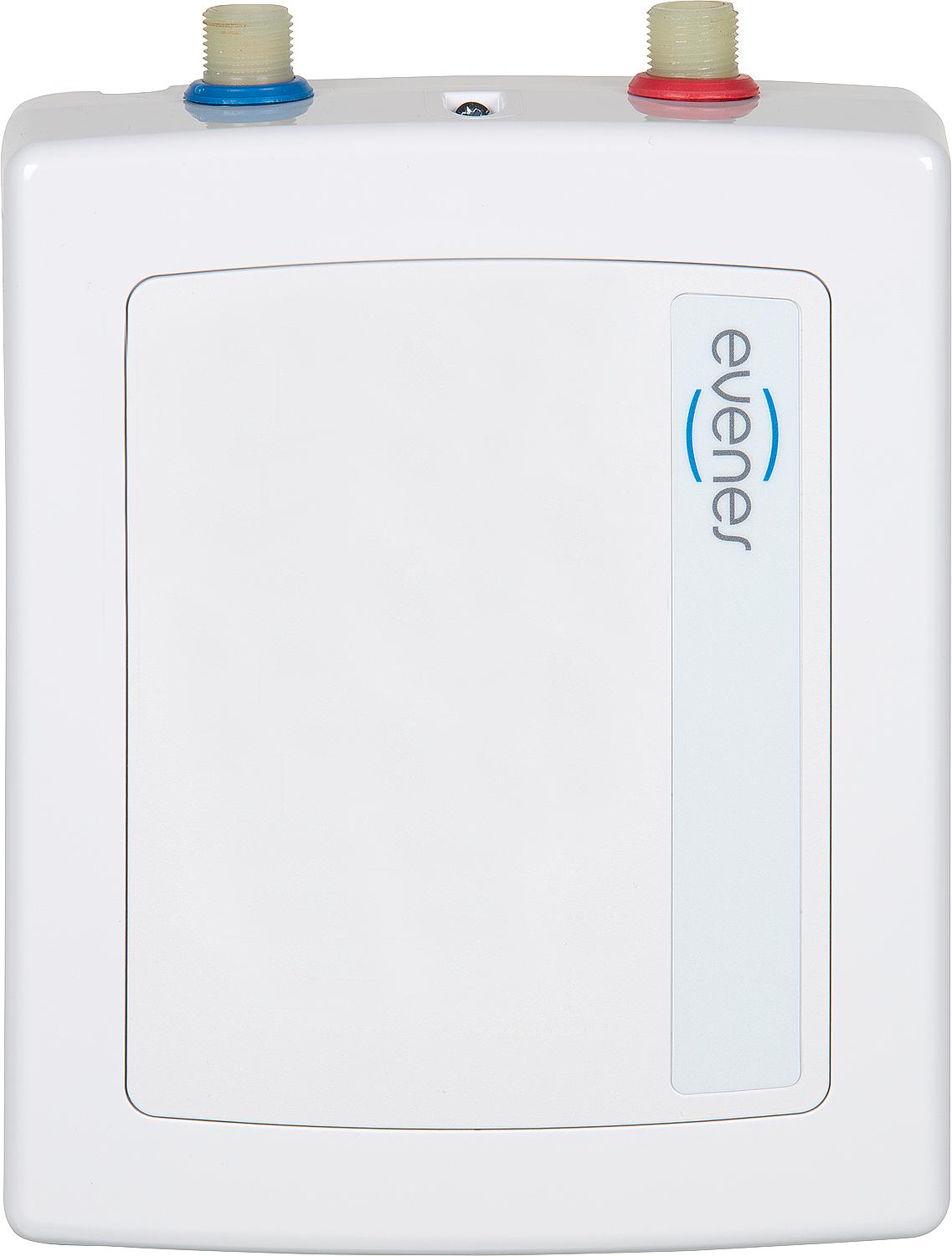

Kleindurchlauferhitzer evenes EPO2-5 druckfest 5,5kw 230 Volt

• Connections: DN 10 (3/8") • Variable mounting as a top- or bottom-counter unit • For one sampling point only • Hydraulically controlled small instantaneous water heater • Replaceable heating element • Includes aerator • For pressure-resistant under-table mounting, the installation set (order no. 90 806 85) is required. • 3.5 kW plug-in ready, from 4.4 kW mains cable Area of ​​application: • Handwashing basin • Sanitary facilities in offices, sports facilities and shops

Model	EPO2-3	EPO2-4	EPO2-5
Technical data
Energy efficiency class	A* )	A* )	A* )
Rated power [kW]	3.5	4.4	5.5
Permissible operating pressure [bar]	6	6	6
Water connections (screw connections)	DN 10 (3/8")	DN 10 (3/8")	DN 10 (3/8")
Hot water output at Δt = 30 K [l/min]	1.7	2.1	2.7
Switch-on max. flow rate [l/min]	1.2	1.6	2.0
Voltage [V]	230	230	230
Rated current [A]	15.2	19.1	23.9
Minimum required cable cross-section [ mm² ]	3 x 1.5	3 x 2.5	3 x 2.5
Approx. weight with water filling [kg]	1.2	1.2	1.2
Dimensions (W x H x D) [mm]	225 x 170 x 75	225 x 170 x 75	225 x 170 x 75
Humidity level according to VDE	IP 25	IP 25	IP 25
* ) This information complies with the provisional requirements for EU Regulation No. 812/2013, which will become binding from September 2015.

Brand	evenes
Power [kW]	3.5
Unit price	CHF/piece
Energy Efficiency Class	A
